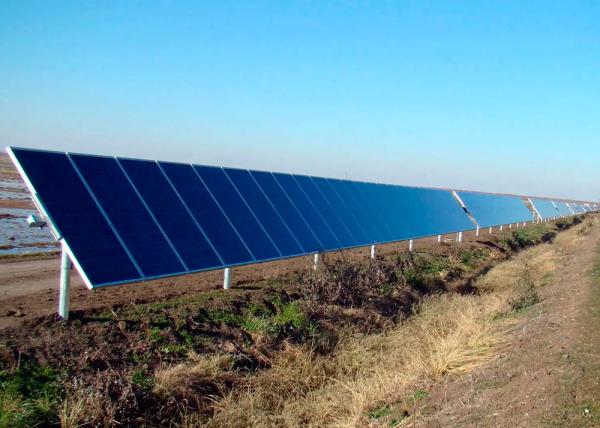

Horizontal Single Axis Solar Tracker Bracket / PV Mounting Structure
Horizontal Single Axis Solar Tracker Bracket / PV Mounting Structure
Horizontal Single Axis Solar Tracker Bracket / PV Mounting Structure
Horizontal Single Axis Solar Tracker Bracket / PV Mounting Structure
Horizontal Single Axis Solar Tracker Bracket / PV Mounting Structure
Horizontal Single Axis Solar Tracker Bracket / PV Mounting Structure
Horizontal Single Axis Solar Tracker Bracket / PV Mounting Structure
Horizontal Single Axis Solar Tracker Bracket / PV Mounting Structure
Horizontal Single Axis Solar Tracker Bracket / PV Mounting Structure
Horizontal Single Axis Solar Tracker Bracket / PV Mounting Structure
Horizontal Single Axis Solar Tracker Bracket / PV Mounting Structure
Horizontal Single Axis Solar Tracker Bracket / PV Mounting Structure
Specifications
Brand Name :
Good Future Solar
Model Number :
MG/ZG/YG/JG.ETC SOLAR SYSTEM
Certification :
CE/ISO/BV/SGS
Place of Origin :
China
MOQ :
Negotiate
Price :
Negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000MW per Month
Delivery Time :
30 Working Days after design confirm
Packaging Details :
Neutral packing
Product :
Top Quality Horizontal Single Axis Independent Solar Tracker Bracket/PV Mounting Structure
Driving System :
Slew drive for tracker
Operation Temperature :
-40℃ - +60℃
Night Position :
Yes
Ground Coverage Ratio :
≥ 25%
String-Power :
Yes
Damper :
Included
Material :
Galvanized Steel
Description

Top Quality Horizontal Single Axis Independent Solar Tracker Bracket/PV Mounting Structure

Working principle:

The solar tracker uses high-precision astronomy algorithm to calculate the angle of the sun,
combined with high-performance microcontroller (DSP core), making the system accurate
and reliable, not rainy days interference,using international first-line brand tilt sensor, real-time
closed-loop feedback tracking angle, automatic tracking, without human intervention.


Functions:
The solar tracker uses high-precision astronomy algorithm to calculate the angle of the sun,
combined with high-performance microcontroller (DSP core), making the system accurate
and reliable, not rainy days interference,using international first-line brand tilt sensor, real-time
closed-loop feedback tracking angle, automatic tracking, without human intervention.

Technical Parameters of Single Axis Solar Tracker

Top Quality Horizontal Single Axis Independent Solar Tracker Bracket/PV Mounting Structure
Tracking Range 士 60°
Driving System Slew drive, 28VDC motor
Modules per Tracker Max.90 modules per tracker
System Voltage 1000 V or 1500 V
Ground Coverage Ratio ≥ 25%
Power Consumption 0.2-0.5kWh/day
Power Supply Mode Powered by PV strings, back-up lithium battery
Standard Design Wind Speed 18m/s
Module Supported All commercially available modules
Operation Temperature -40℃ - +60℃
Control Algorithm Astronomical algorithms + Tilt sensor close loop
Tracking Accuracy ≤ 1°
String-Powered Yes
Backtracking Yes
Communication Options LoRa wireless /RS 485 cable
Night Position Yes

Good future solar has a professional management team, we have gains rich experiences on the solar power generation, and the designing, manufacturing, commissioning of the single axis tracking system. Our company always values customer’s needs as the highest priority, ready to provides technical support to our customers at any time, to solve their problems in the operation of PV power plant and solar tracking system. With the mission of developing clean energy and protecting the environment, we believe that through close cooperation with domestic and foreign customers, we will continue to innovate in technology and management, and create a bright future of clean energy!
