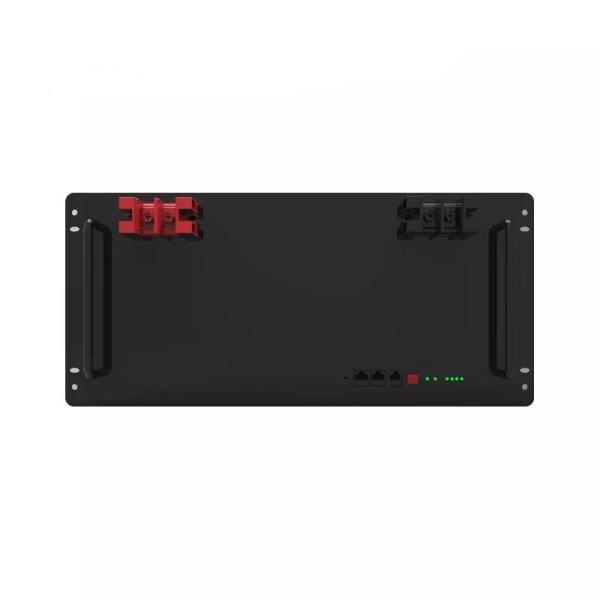

5kw Solar Energy Storage Battery 48 Volt 100ah Lifepo4 Lithium Ion
5kw Solar Energy Storage Battery 48 Volt 100ah Lifepo4 Lithium Ion
Specifications
Brand Name :
Sunica
Model Number :
01
Certification :
ce
Place of Origin :
China
MOQ :
1
Price :
USD 400- 10000 / pieces
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
100000 packs per year
Delivery Time :
7-20 working days
Packaging Details :
Carton+Wooden Box+Customized Packaging
Place of Origin: :
Guangdong, China
Weight :
70KG
Usage: :
Slolar Energy System
Cycle life: :
6000 Cycles
Size: :
442*520*221 mm
Max discharge current: :
Continuous
Description

5kw Solar Energy Storage Battery Lithium Ion Batteries 48V100ah Lifepo4

Model TP48100(4U)
Nominal voltage(V) 51.2
Nominal capacity(Ah) 100
Nominal energy (Wh) 5120
Maximum charging voltage(V) 58.4
Max. charging current(A) 100
Charging method CC/CV
Max Continuous Discharge Current(A) 100
Maximum peak discharge current @10sec(A) 110
Max. load power(W) 4500
Discharge cut-off voltage(V) 40
Charging temperature(℃) 0~+50
Discharge temperature(℃) -20~+60
Operating humidity: <95%R.H
Operating humidityCycle times(25℃,0.5C,80%DOD) >2000
Battery combination mode 15S3P
Terminal specification KF57-2P*2
Protection class IP54
Dimension(mm) 442*480*177 mm
Reference weight(kg) 45
Communication mode 232/485/CAN

This Lithium-Ion Battery has a long lifespan of 6 000 cycles at 80% depth of discharge at 25°C. In addition, the batteries can support up to 15 batteries in parallel for expansion. The batteries are set to sleep mode (off) during transportation and storage to reduce loss of capacity. has the following remarkable characteristics:
mounted lifepo4 battery

1. Support OEM / ODM brand

2. support pack 48v 100ah-200ah rack mounted lifepo4 battery

3. Variety powerpole connector for you to choose

4. RS485 / RS232 / CAN communication or without communication

5. Special metal case size

6 Support Connected in parallel mode for expansion (to store more energy)

7. Plug and Play, easy to connect and operate
5kw Solar Energy Storage Battery 48 Volt 100ah Lifepo4 Lithium Ion
5kw Solar Energy Storage Battery 48 Volt 100ah Lifepo4 Lithium Ion
5kw Solar Energy Storage Battery 48 Volt 100ah Lifepo4 Lithium Ion5kw Solar Energy Storage Battery 48 Volt 100ah Lifepo4 Lithium Ion
5kw Solar Energy Storage Battery 48 Volt 100ah Lifepo4 Lithium Ion
5kw Solar Energy Storage Battery 48 Volt 100ah Lifepo4 Lithium Ion5kw Solar Energy Storage Battery 48 Volt 100ah Lifepo4 Lithium Ion
5kw Solar Energy Storage Battery 48 Volt 100ah Lifepo4 Lithium Ion

FAQ:

Q.Which certificates do you have?
A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.

Q. What about the lead time?
A. Sampleneeds 3 days, mass production time needs 5-7 weeks, it depends on order quantity.
Q. Do you have any MOQ limit?
A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for samplechecking is available.
Q. How do you ship the goods and how long does it take to arrive?
A. It usually takes 5-7 days to arrive.Airline and sea shipping is also optional.
Q.How about warranty?
A:5 year warranty.
