90W 36.18V Photovoltaic Roof Tiles PV Solar Panels On Tile Roof
90W 36.18V Photovoltaic Roof Tiles PV Solar Panels On Tile Roof
90W 36.18V Photovoltaic Roof Tiles PV Solar Panels On Tile Roof
90W 36.18V Photovoltaic Roof Tiles PV Solar Panels On Tile Roof
90W 36.18V Photovoltaic Roof Tiles PV Solar Panels On Tile Roof
90W 36.18V Photovoltaic Roof Tiles PV Solar Panels On Tile Roof
Specifications
Brand Name :
Welons
Place of Origin :
China
Unit Maximum Power :
90W
Maximum Power Per Square Meter :
180W
Open Circuit Voltage :
36.18V
Short Circuit Current :
3.05A
Maximum Power Point Voltage :
30.78V
Maximum Power Point Current :
2.92A
Model Number :
Custom
MOQ :
100 pcs
Price :
USD 30-300 /pcs
Packaging Details :
1.2mX2.4m wooden Case packaging
Delivery Time :
5-8 work days
Payment Terms :
T/T
Supply Ability :
500000 pcs per year
Description

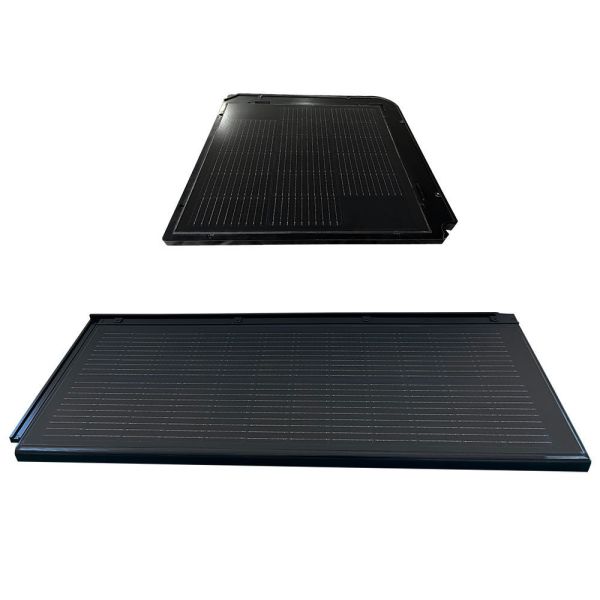

90W Photovoltaic Roof Tile PV Tiles Solar Cell Module Roof Tiles

Our 90W high-efficiency photovoltaic roof tile features invisible back-contact tech for a sleek, seamless, unobtrusive roof blend.Ultra-durable tempered glass construction is walkable, anti-slip, and fully weatherproof against harsh conditions.With over 24% module efficiency, it delivers stable output in low light & high temperatures. Fully globally certified, backed by a 12-year warranty for long-term reliable clean rooftop power.

Specifications

Parameters Details
Unit Maximum Power 90W
Maximum Power Per Square Meter 180W
Open Circuit Voltage 36.18V
Short Circuit Current 3.05A
Maximum Power Point Voltage 30.78V
Maximum Power Point Current 2.92A
Product Dimension 1424×437×21(±1)mm
Module Thickness 7.5mm
Single Module Weight 12(±0.5)kg
Weight Per Square Meter 24(±0.5)kg

Key Features

Transparent back-contact tech, seamless flush roof installation, premium all-black aesthetic

90W single tile, 180W per m²; 24%+ efficiency IBC/HJT high-performance cells.

Excellent weak light & high temperature adaptability for steady all-day power generation.

Tempered glass build, walkable anti-slip, impact/corrosion resistant, full waterproof sealing.

Applications

Residential house & villa rooftop full solar roofing renovation & new installation.

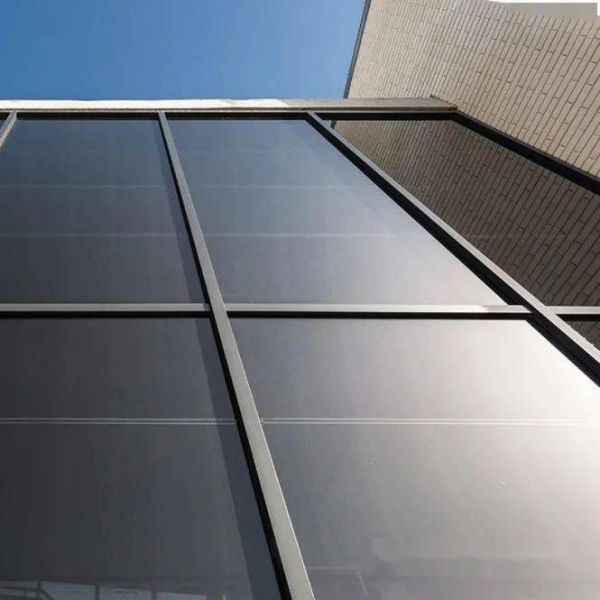

BIPV integrated green building & low-carbon architectural projects.

Commercial building rooftop energy-saving and power generation retrofits.
