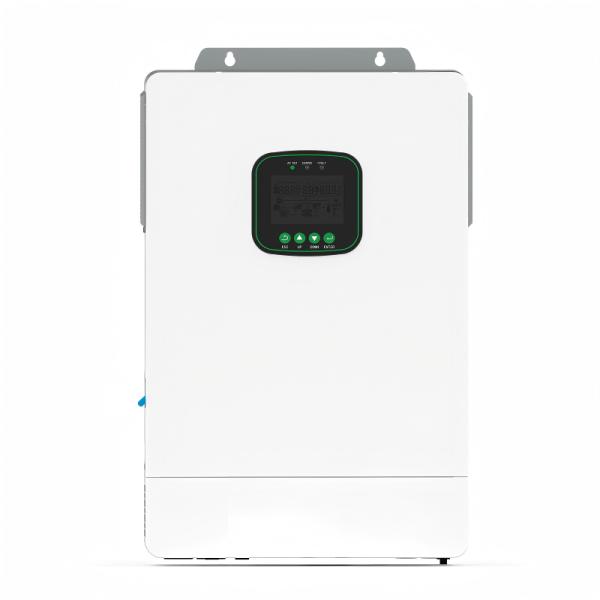

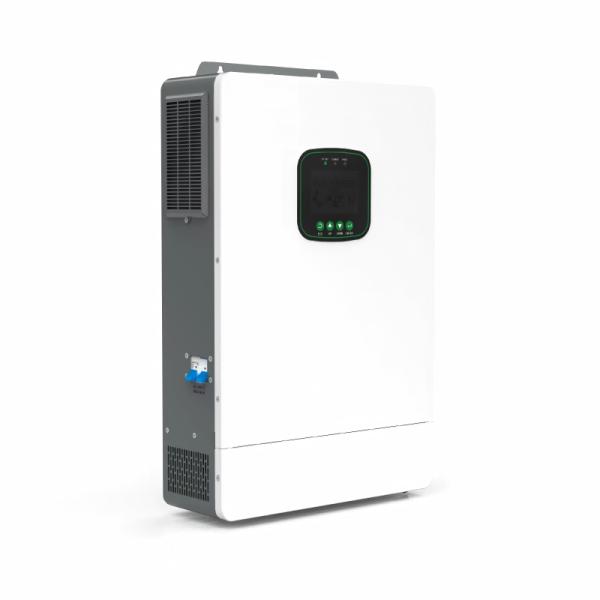

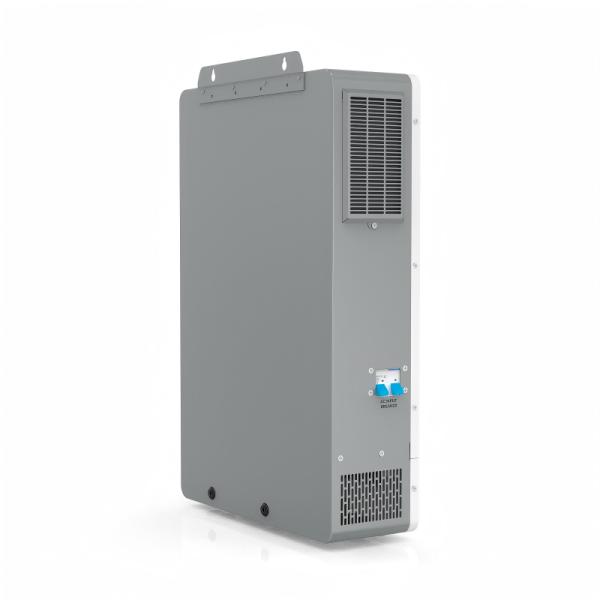

Three-phase inverter
Three-phase inverter
Three-phase inverter
Three-phase inverter
Three-phase inverter
Three-phase inverter
Specifications
size :
535mm*420mm*210mm
weight :
5kg
communication interface :
RS485
supervising mode :
wifi
operating temperature range :
-25 - 60°C (over 45°C is de-rated)
level of protection :
IP65
European energy efficiency :
97.0%
Maximum power point tracking efficiency :
>99%
Model Number :
Custom
MOQ :
100 pcs
Price :
USD 30-300 /pcs
Packaging Details :
1.2mX2.4m wooden Case packaging
Delivery Time :
5-8 work days
Payment Terms :
T/T
Supply Ability :
500000 pcs per year
Description

Product Highlights
1. High Efficiency: Achieves over 93% efficiency and maximum power conversion.
2.Compact Design: Dimensions are 428x280x110mm, ideal for space-saving installations.
3. Reliable Power Supply: Operating frequency is 50/60Hz, suitable for various grid conditions.
4. Durable Structure: Made with high-quality components, featuring long-lasting performance.
5. Multi-functional Compatibility: Compatible with single-phase hybrid solar systems.

DATASHEET 6kW-3P 8kW-3P 10kW-3P 12kW-3P
type of battery Lead-acid or lithium-ion
Battery voltage range (V) 40-60
Maximum battery charging/discharging current (A) 120/125 140/175 160/220 200/250
Charging strategy of lithium-ion batteries Adaptive BMS
Battery input quantity 1
Photovoltaic string input data
Maximum photovoltaic connection power (W) 12000 16000 20000 24000
Maximum photovoltaic input power (kW) 15
Maximum photovoltaic input voltage (V) 800
Starting voltage (V) 160
Maximum power voltage range (V) 180~950
Rated photovoltaic input voltage (V) 550
Maximum photovoltaic input working current (A) 13+13 13+13 26+13 26+13
Maximum input short-circuit current (A) 17+17 17+17 34+17 34+17
Number of MPPT trackers / Number of string groups supported by each MPPT tracker 2/1+1 2/1+1 2/2+1 2/2+1
AC input/output data
output of alternating current (W) 6000 8000 10000 12000
Maximum AC input/output apparent power (VA) 6600 8000 11000 13200
Rated AC input/output current (A) 9.1/8.7 12.1/11.6 15.2/14.5 18.2/17.4
Maximum AC input/output current (A) 10/9.6 13.4/12.8 16.7/15.9 20/19.1
Maximum continuous communication bypass (from grid to load) (A) 45
Peak power (off-grid) (W) Twice the rated power, for 10 seconds
Rated input/output voltage/range (V) 0.8 (lagging) - 0.8 (leading)
Rated grid frequency (Hz) 220/380V,230/400V.From 0.85 times the rated voltage to 1.1 times the rated voltage
Grid connection type 50/60
Total Current Harmonic Distortion Rate (THDi) 3% (nominal power)
Direct current injection current Less than 0.5%
efficiency 97.6%
maximum efficiency
European energy efficiency 97.0%
Maximum power point tracking efficiency >99%
port
communication interface RS485
supervising mode WIFI
conventional data
Working temperature range (°C) -25-60℃(Reduction to 45℃)
level of protection IP65
Size(mm) 535*420*210
weight(kg) 5

Equipment Protection

1.integration:DC reverse polarity protection, AC output overcurrent protection, thermal protection, AC output overvoltage protection, AC output short circuit protection, DC component monitoring, arc fault circuit breaker (optional), islanding prevention protection, DC switch, insulation resistance detection, residual current detection.

2.Surge protection level:Type II (Direct Current), Type II (Alternating Current).
