Specifications
Brand Name :
Welons
Rated Energy :
5.12kWh
Model Number :
Custom
MOQ :
100 pcs
Price :
USD 30-300 /pcs
Packaging Details :
1.2mX2.4m wooden Case packaging
Delivery Time :
5-8 work days
Payment Terms :
T/T
Supply Ability :
500000 pcs per year
Nominal Capacity :
100Ah 300Ah
Current :
100A
Protection Level :
IP51
Product :
Residential Energy Storage
Output Frequency :
50/60Hz
Description

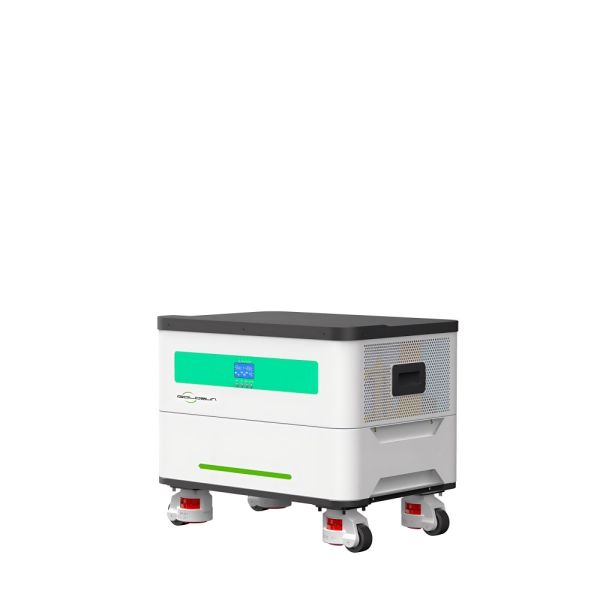

Stackable 5kWh LiFePO4 Battery with 5kW Hybrid Inverter All-in-One Energy Storage System
Topbrandbattery, A-grade quality, 6000 cycles. Modular mobile and stacked design, 1 layer of batteries, easy to install and expand plug-and-play, saving in the moving space/high charging and discharging current. Suitable for solar energy storage systems, with various safety and certification real-time monitoring, CAN 2.0/RS485 communication interface.
Battery Specifications
Rated Energy 5.12kWh
Rated Voltage 51.2V
Rated Capacity 100Ah
Max Charge 100A
Cell Type 3.2V 100Ah
Protection Grade IP51
Dimensions 610*440*505mm
Weight 79.9kg
Operating Temp 20℃~60℃
Inverter Specifications
Rated Output Power 5kW
Output Voltage 220/230/240V
Output Frequency 50/60Hz
Max Conversion Efficiency 93.6%
MPPT Efficiency 99.9%
Protections Overcurrent/Short Circuit/Overvoltage/Remote Shutdown
Inverter Dimensions 610*440*225mm
Gross Weight 21.5kg
Key Features
  • Superior Safety: Integrated BMS/PCS/EMS with full protection for reliable operation.
  • High Efficiency: 99.9% MPPT efficiency, low energy loss, maximizes solar utilization.
  • Wide Adaptability: -20℃~60℃ working range, ideal for hot & humid climates.

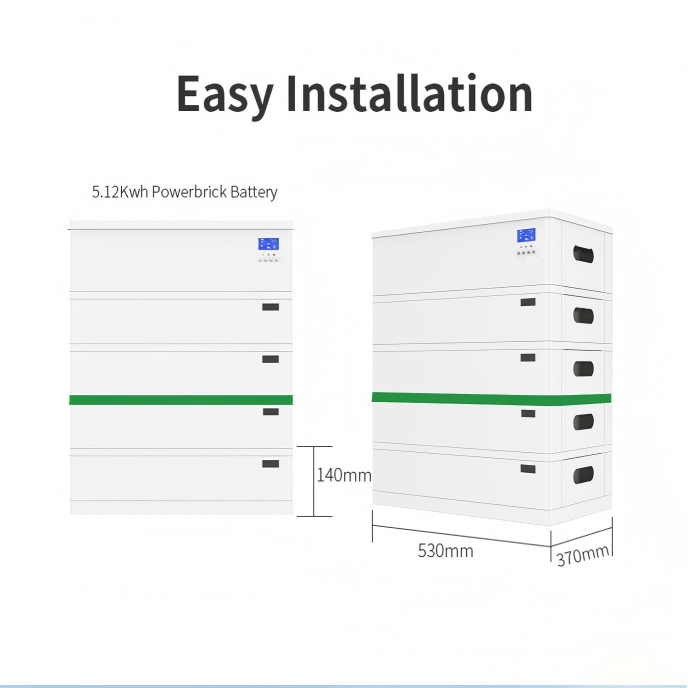

  • Easy Installation: Compact stackable design, simple wiring, low maintenance cost.
  • Long Lifespan: Premium LiFePO4 cells, IP51 rated, durable for long-term use.
Applications
  • Residential solar power system
  • Small and medium commercial power supply
  • Industrial backup power system
