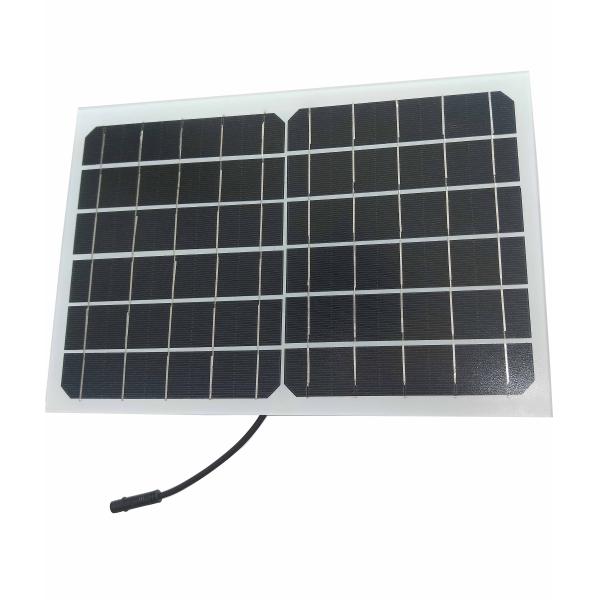

A Grade Small Flexible Solar Panels Glass Laminated 6V 10W Waterproof Long Lifespan
A Grade Small Flexible Solar Panels Glass Laminated 6V 10W Waterproof Long Lifespan
A Grade Small Flexible Solar Panels Glass Laminated 6V 10W Waterproof Long Lifespan
A Grade Small Flexible Solar Panels Glass Laminated 6V 10W Waterproof Long Lifespan
A Grade Small Flexible Solar Panels Glass Laminated 6V 10W Waterproof Long Lifespan
A Grade Small Flexible Solar Panels Glass Laminated 6V 10W Waterproof Long Lifespan
A Grade Small Flexible Solar Panels Glass Laminated 6V 10W Waterproof Long Lifespan
A Grade Small Flexible Solar Panels Glass Laminated 6V 10W Waterproof Long Lifespan
A Grade Small Flexible Solar Panels Glass Laminated 6V 10W Waterproof Long Lifespan
A Grade Small Flexible Solar Panels Glass Laminated 6V 10W Waterproof Long Lifespan
A Grade Small Flexible Solar Panels Glass Laminated 6V 10W Waterproof Long Lifespan
A Grade Small Flexible Solar Panels Glass Laminated 6V 10W Waterproof Long Lifespan
Specifications
Brand Name :
JYG
Model Number :
JYG-10W-M
Certification :
CE,ROHS
Place of Origin :
CHINA
MOQ :
100
Price :
negotiable
Payment Terms :
Western Union, , T/T, L/C
Supply Ability :
10000pcs/month
Delivery Time :
7-15days
Packaging Details :
standard export package 2pcs/carton
Name :
A Grade Small Glass laminated Solar Panels 6V 10W with USB and waterproof
Material :
monocrystalline cell
Output peak voltage :
10W
Max power voltage :
0.5V 5V 6V 9V 18Vcan be customized
Max power current :
1.66A
Application :
outdoor traving ,camping and so on
Warranty :
5years
Output :
6V 1.819A
Description

A Grade Small Glass laminated Solar Panels 6V 10W with USB and waterproof

Electrical Date

Mono JYG-10-M
Nominal peak power(Pmax) 10W
Maximum Power Voltage(Vmp) 6V
Maximum Power current(Imp) 1.44A
Short-circuitcurrent(Isc) 1.819A
Open-cicuit Voltage(Voc) 7.2V
Optimized cell efficiency 19.5%-21%

Limits

Operating temperature -40°C to +85°C
Maximum system voltage 1000VDC

Temperature and Coefficients

NOCT 48°C+/-2°C
Current temperature coefficient %/K 0.06+/-0.01
Voltage temperature coefficient mV/K -(78+/-10)
Power temperature coefficient %/K -(0.5+/-0.05)

Additional Data

Number of cells and type of connection
Dimensions(MM) 335*220.*18MM
Weight(KG) 10W:1.5KG
Container Loading

A Grade Small Flexible Solar Panels Glass Laminated 6V 10W Waterproof Long LifespanA Grade Small Flexible Solar Panels Glass Laminated 6V 10W Waterproof Long LifespanA Grade Small Flexible Solar Panels Glass Laminated 6V 10W Waterproof Long Lifespan
