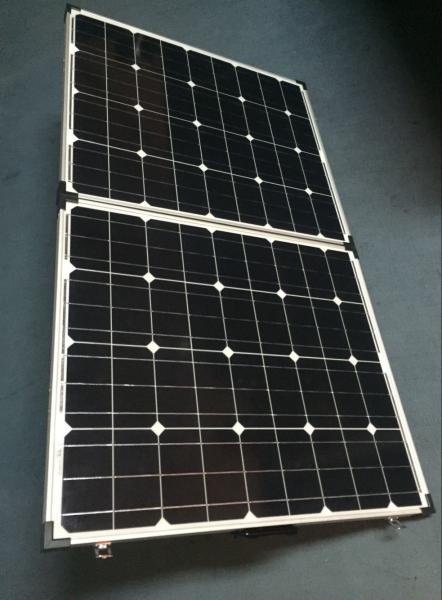

TUV High Effiency Foldable Solar Panel 12V 100W Solar Panel Charger
TUV High Effiency Foldable Solar Panel 12V 100W Solar Panel Charger
TUV High Effiency Foldable Solar Panel 12V 100W Solar Panel Charger
TUV High Effiency Foldable Solar Panel 12V 100W Solar Panel Charger
TUV High Effiency Foldable Solar Panel 12V 100W Solar Panel Charger
TUV High Effiency Foldable Solar Panel 12V 100W Solar Panel Charger
TUV High Effiency Foldable Solar Panel 12V 100W Solar Panel Charger
TUV High Effiency Foldable Solar Panel 12V 100W Solar Panel Charger
Specifications
Brand Name :
JYG
Model Number :
JYG-100W-M
Certification :
CE,ROHS
Place of Origin :
CHINA
MOQ :
1
Price :
negotiable
Payment Terms :
Western Union, , T/T, L/C
Supply Ability :
Mini custom solar panels
Delivery Time :
7-15days
Packaging Details :
standard export package 2pcs/carton
Name :
Foldable solar panel
Material :
Monocrystalline silicon 156*156mm
Output peak voltage :
50W*2pcs ,can be customized
Max power voltage :
18V can be customized
Max power current :
5.55A
Application :
home system.outdoor travel,camper
Warranty :
25years
Description

High efficiency 12V 100W sunpower folding solar panel

Product Description
flex solar panel

Date Sheet of solar panel

Electrical Date

Mono

JYG-M-100W
Nominal peak power(Pmax) 100W
Maximum Power Voltage(Vmp) 18V
Maximum Power current(Imp) 5.55A
Short-circuitcurrent(Isc) 6.06A
Open-cicuit Voltage(Voc) 21.6V
Optimized cell efficiency 17%-19%

Limits

Operating temperature -40°C to +85°C
Maximum system voltage 1000VDC

Temperature and Coefficients

NOCT 48°C+/-2°C
Current temperature coefficient %/K 0.06+/-0.01
Voltage temperature coefficient mV/K -(78+/-10)
Power temperature coefficient %/K -(0.5+/-0.05)

Additional Data

Number of cells and type of connection 156*156
Dimensions(MM) 510*666*70MM/ 3.8 kgs
Weight(KG) 100W:10.5kg

Guaranteed Power Output 15 year:90% of its nominal power rating
25 yesr:80% of its nominal power rating
Warranty Period Replacement for manufacturing defects within 5 years
Certificates CE,RoHS,FCC,TUV
Cells monocrystalline silicon photovoltaic cell

solar chargeTUV High Effiency Foldable Solar Panel 12V 100W Solar Panel Chargerr/solar panel phone charger/cell phone solar charger
