Specifications
parameter :
Tolerance(%)
value :
2098*1134*30mm
Description

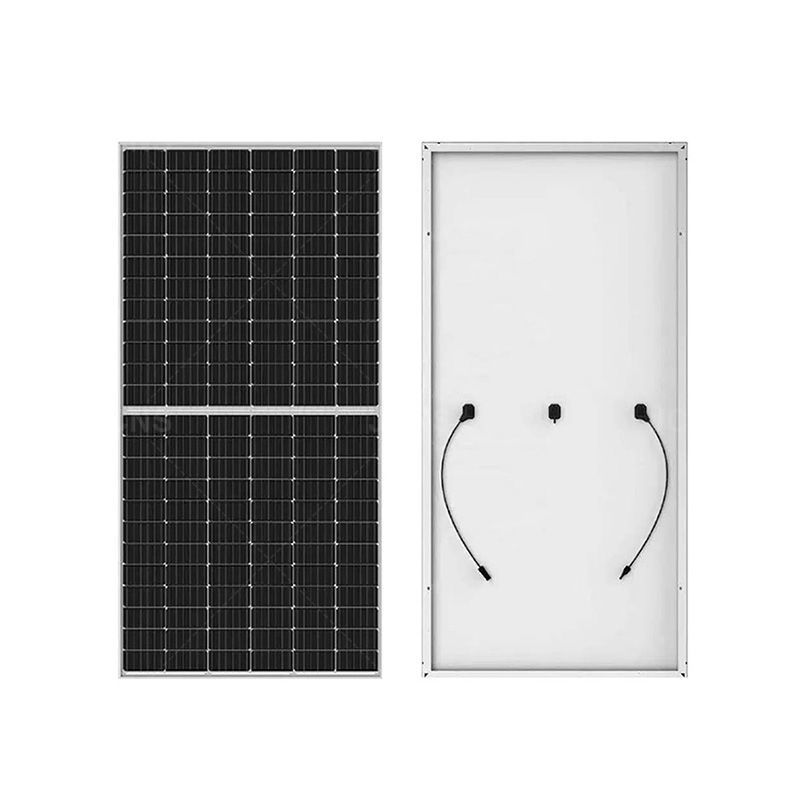

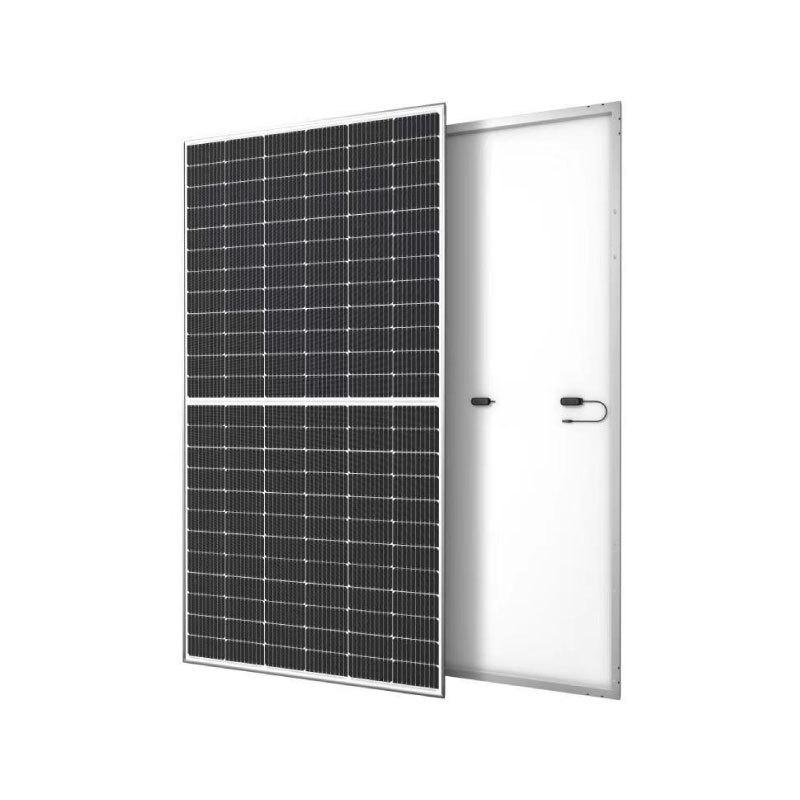

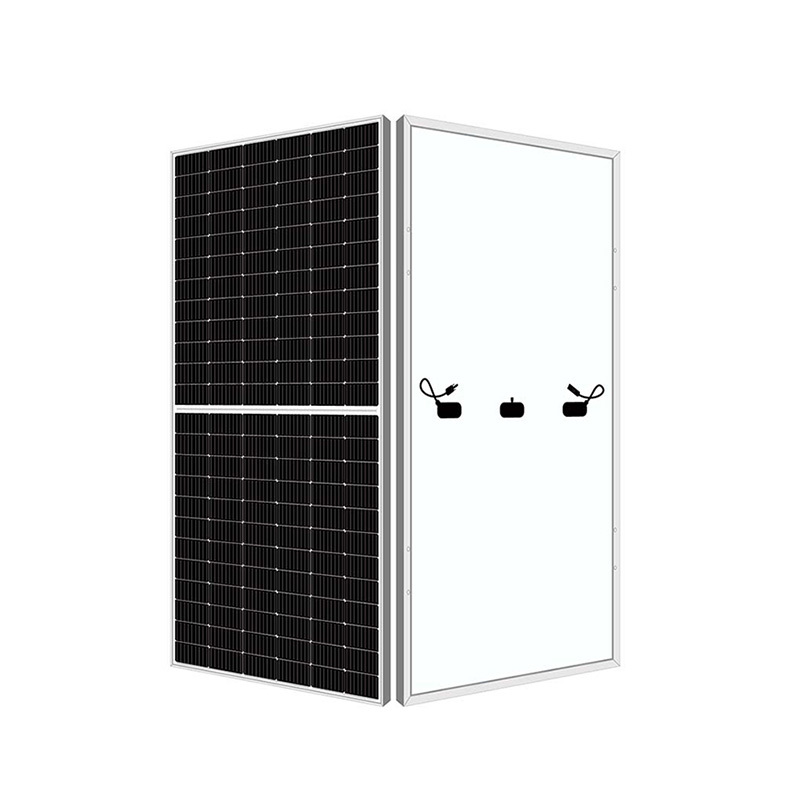

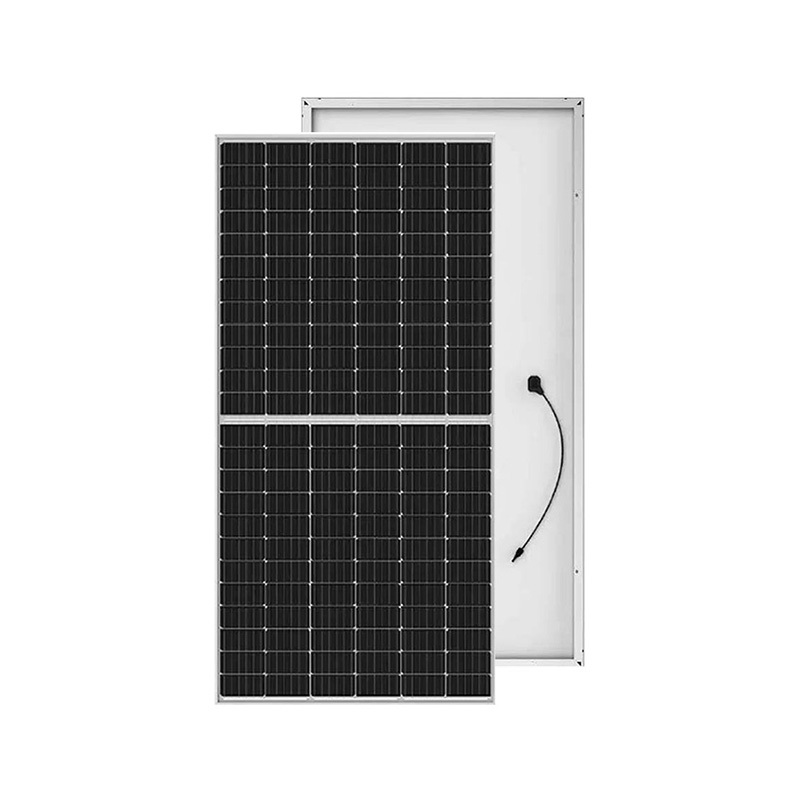

500W High-Efficiency Solar Photovoltaic Panel

Product Overview

This 500W solar photovoltaic panel is engineered for high-performance energy conversion. Utilizing renewable solar energy, it operates with minimal environmental impact, offering a sustainable, low-noise, and low-maintenance power solution.

  • High Efficiency: Solar cell conversion efficiency exceeding 23%.
  • Advanced Protection: Features bypass diodes to minimize power drops caused by shading.
  • Durable Construction: Built with white tempered glass, EVA resin, weather-proof film, and an anodized aluminum frame.
  • Versatile Application: Waterproof design, ideal for various grid-connected applications.

Product Attributes

FOB UnitPiece
Packaging & DeliveryNot specified

Technical Specifications

ParameterValue
Maximum Power500W
Dimensions2098*1134*30mm
Weight25kg/pcs
Tolerance±3%
Open Circuit Voltage45.94V
Max Power Voltage38.28V
Max Power Current13.07A
Short Circuit Current14.12A
Module Efficiency21%
Solar Cell Efficiency23.3%
Series Fuse Rating20A
Terminal BoxIP65
Max System VoltageDC1000V
Operating Temperature-40℃ to 85℃
