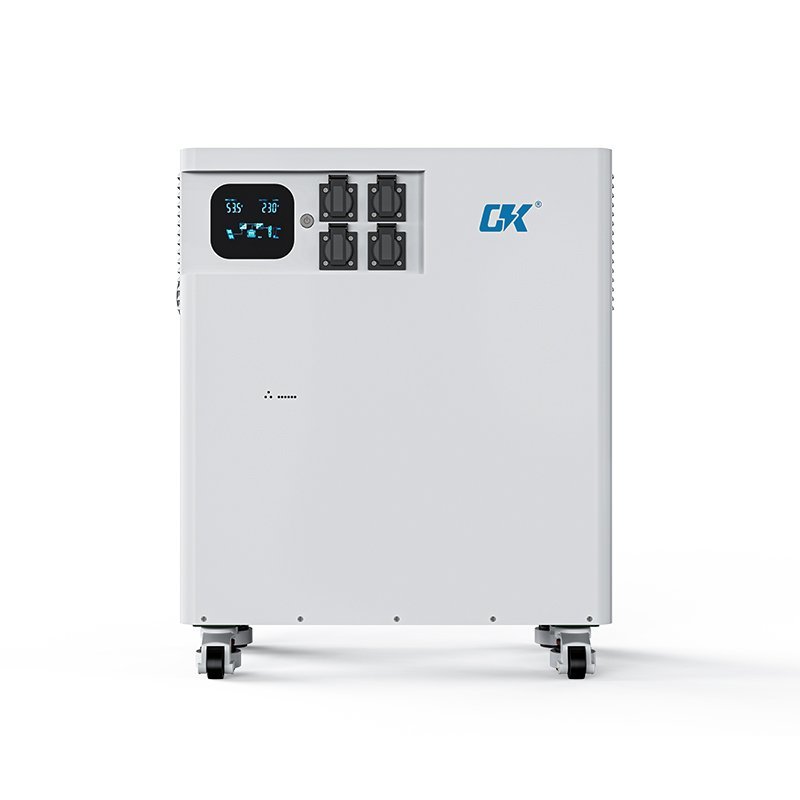

51.2V 392Ah 20Kwh Hybrid Integrated All In One Solar System Hybrid Home Energy Storage System
51.2V 392Ah 20Kwh Hybrid Integrated All In One Solar System Hybrid Home Energy Storage System
51.2V 392Ah 20Kwh Hybrid Integrated All In One Solar System Hybrid Home Energy Storage System
51.2V 392Ah 20Kwh Hybrid Integrated All In One Solar System Hybrid Home Energy Storage System
Specifications
value :
145Kg
parameter :
PV Input Voltage
Description

High-Performance All-in-One Inverter/Charger System

This multifunctional inverter/charger integrates a pure sine wave inverter, a solar charger, and a battery charger into one unit, providing an uninterrupted and stable power supply. Designed for efficiency and reliability, it features an intelligent charging algorithm, multiple automatic protection functions (overload, overheating, short circuits), and an integrated LCD display for seamless parameter monitoring.

Key Benefits

  • All-in-One Integration: Combines inverter, solar charger, and battery charger for simplified installation.
  • Intelligent Protection: Built-in safeguards against overload, overheating, and short circuits.
  • User-Friendly Interface: Real-time parameter monitoring via high-clarity LCD display.
  • Reliable Power: Pure sine wave output ensures stable performance for sensitive equipment.

Product Attributes

FOB UnitSet
Product MOQ0
FOB Price0
Packaging & DeliveryN/A

Technical Specifications

ParameterValue
Battery Nominal Voltage51.2Vdc
Battery Nominal Capacity392Ah
Battery Nominal Power20kWh
Output Power12000W
Output Voltage230Vac+5%
Output Frequency50Hz/60Hz
Mains Supply Charge CurrentDC 150A MAX
Loaded Motor Energy8HP
PV Rated Operating Voltage500Vdc
PV Input Voltage120Vdc~500Vdc
Max PV Input Power6000W+6000W
Max PV Input Current22A+22A
PV Charge CurrentDC 150A MAX
Hybrid Charge CurrentDC 150A MAX
Cycle Lifetime6000time+
Product Dimension678*326*825mm
Net Weight145Kg
