Specifications
Brand Name :
Rhino Stone Tech
Model Number :
Rhino700-EH2
Place of Origin :
Qingdao, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,Western Union,Money Gram,Paypal,Alipay,L/C
Supply Ability :
50000 Pieces/Year
Delivery Time :
10-20 Days( Depending on the Order Size and Requirements)
Packaging Details :
Standard Carton or Per Needed
After-sales Service :
1 Year
Specification :
3.6m/5.4m/7.5m
Number of Section :
2/3/4
Cleaning Width :
690mm
Brushless Motor Rotating Speed :
360 RPM
Rated Power :
300W
Working Voltage :
DC24V
Lithium Battery Charging Time :
4~6h
Lithium Battery Life Per Full Charge :
3~3.5h
Description

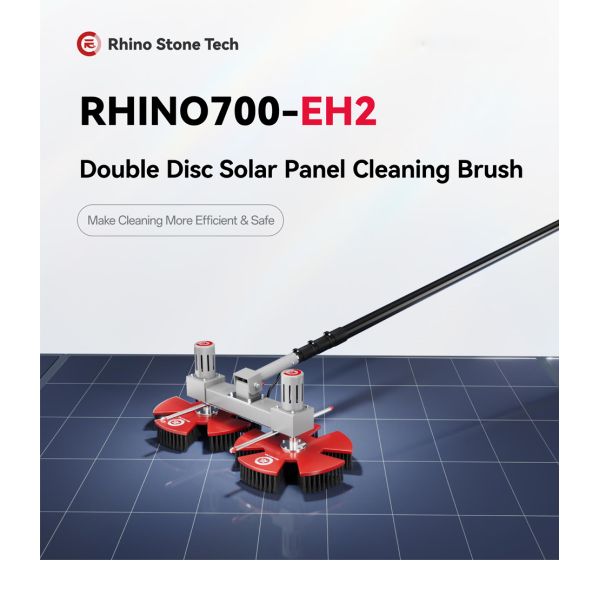

RHINO700-EH2 Dual-Disc Solar Cleaning Tool
Adopting an original five-petal brush head structure, this device centers on the core philosophy of high efficiency, operational safety and maximum protection for photovoltaic modules. Its bidirectionally rotatable brush assembly fitted with anti-static nylon filaments swiftly eliminates stubborn dust and accumulated grime on panels, without scratching or harming the glass surface. Built with a high-toughness, elastic anti-static carbon fiber extendable pole, the equipment remarkably lowers physical strain on operators, alongside upgraded overall safety, service life and structural stability. It stands as an ideal professional solution for large-scale solar panel maintenance.

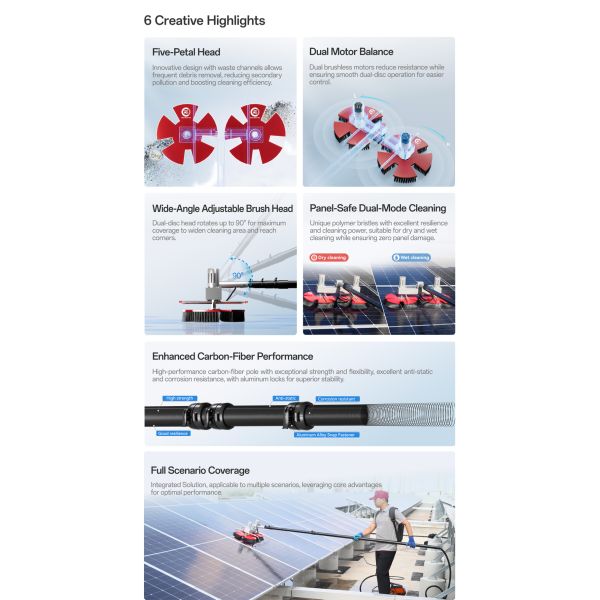

6 Core Advantages
1.Patented Five-Petal Brush Structure
The innovative integrated debris drainage channels enable continuous impurity discharge, which effectively avoids secondary contamination on panels and greatly elevates overall cleaning productivity.
2.Balanced Dual-Motor System
Two independent brushless motors work in tandem to lower operational resistance, maintaining steady synchronous operation of the dual discs and delivering more convenient, stable manipulation for users.
3.Wide-Range Adjustable Brush Angle
The dual-disc assembly supports up to 90° flexible angular adjustment, expanding the effective cleaning scope and enabling full access to marginal and corner areas of photovoltaic arrays.
4.Dual-Mode Cleaning Without Panel Damage
Specially formulated resilient polymer bristles combine strong decontamination capacity with mild contact performance. It supports both dry and wet cleaning modes, fully safeguarding PV panels from abrasion and surface damage.
5.Upgraded Carbon Fiber Extension Rod
Premium carbon fiber shaft features outstanding structural strength, bending resistance, anti-static property and corrosion resistance. Equipped with aluminum locking components, it guarantees reliable fixation and long-term durability.
6.Universal Application Scenarios
As an all-in-one integrated maintenance device, it adapts perfectly to diverse installation environments and working conditions, fully exerting its technical advantages in various PV cleaning projects.

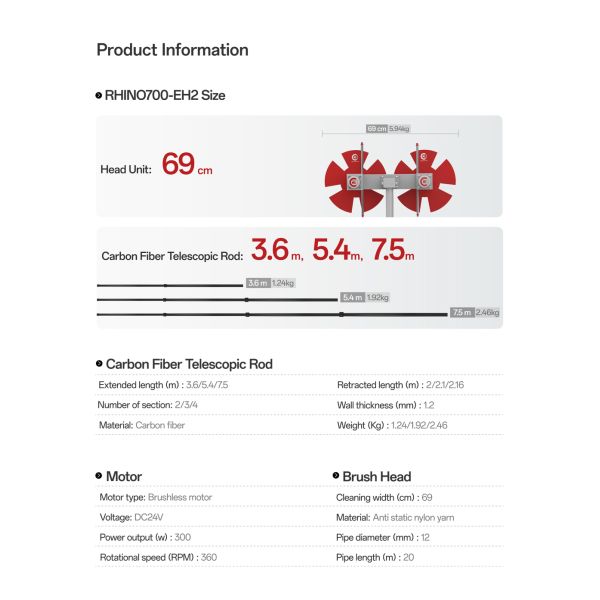

Product Name Double Disc Solar Cleaning Brush RHINO700-EH2
Parameter Item Product Model

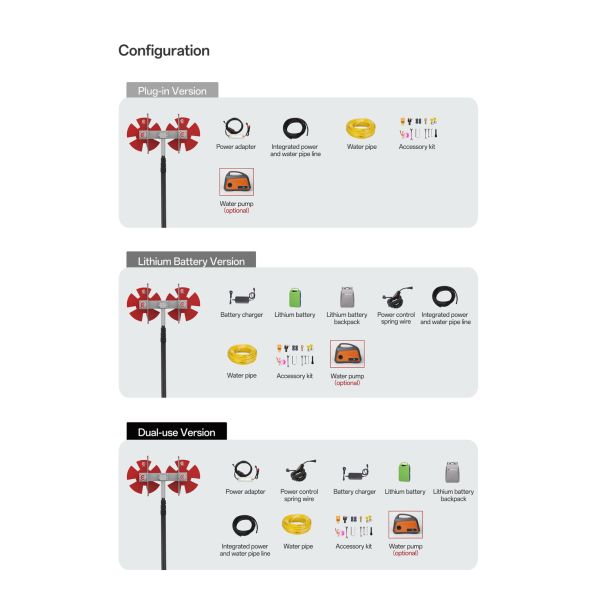

Plug-in Version Lithium Battery Version Dual-use Version
Power Supply AC95V~264V;DC24V Lithium Battery AC95V~264V;DC24V
or Lithium Battery
Motor Type Brushless Motor
Motor Speed 360RPM
Motor Voltage DC 24V
Telescopic Rod Material Carbon Fiber Aluminum Alloy
Telescopic Rod Wall Thickness 1.2mm 1mm
Number of Section 3.6m 2 3.6m 3
5.4m 3 5.4m 4
7.5m 4 7.5m 5
Water Pipe Length 20m (can be customized)
Brush Hair Material Anti-Static Nylon Yarn
Cleaning Width 690mm
Lithium Battery Voltage 24V
Lithium Battery Capacity 30AH
Lithium Battery Charging Time 4~6H
Lithium Battery Life Per Full Charge 3~3.5H


Solar Panel Cleaning Brush Designed for Operational Safety and Maximum Cleaning Efficiency with Balanced Dual Motor System

Solar Panel Cleaning Brush Designed for Operational Safety and Maximum Cleaning Efficiency with Balanced Dual Motor System

Solar Panel Cleaning Brush Designed for Operational Safety and Maximum Cleaning Efficiency with Balanced Dual Motor System

Solar Panel Cleaning Brush Designed for Operational Safety and Maximum Cleaning Efficiency with Balanced Dual Motor System

Solar Panel Cleaning Brush Designed for Operational Safety and Maximum Cleaning Efficiency with Balanced Dual Motor System

Solar Panel Cleaning Brush Designed for Operational Safety and Maximum Cleaning Efficiency with Balanced Dual Motor System

Solar Panel Cleaning Brush Designed for Operational Safety and Maximum Cleaning Efficiency with Balanced Dual Motor System

Solar Panel Cleaning Brush Designed for Operational Safety and Maximum Cleaning Efficiency with Balanced Dual Motor System
