High Brightness all in one Solar Street Light LED Outdoor Lighting
High Brightness all in one Solar Street Light LED Outdoor Lighting
High Brightness all in one Solar Street Light LED Outdoor Lighting
High Brightness all in one Solar Street Light LED Outdoor Lighting
High Brightness all in one Solar Street Light LED Outdoor Lighting
High Brightness all in one Solar Street Light LED Outdoor Lighting
High Brightness all in one Solar Street Light LED Outdoor Lighting
High Brightness all in one Solar Street Light LED Outdoor Lighting
High Brightness all in one Solar Street Light LED Outdoor Lighting
High Brightness all in one Solar Street Light LED Outdoor Lighting
Specifications
MOQ :
10
Price :
contact us with more details
Payment Terms :
T/T,Western Union
Supply Ability :
8000pcs/Month
Delivery Time :
5-7 workdays
Packaging Details :
carton
Brand Name :
Led Solar Street light
Model Number :
LKH-60W
Certification :
CE,IP65,FCC
Place of Origin :
Shenzhen China
Product Name :
Solar Street Light LKH-60W
Model NO. :
LKH-60W
Charge Time :
6 Hrs
Working Time :
12 Hrs / 3-5 Days
Specification :
1173*408*150mm
Waterproof :
IP65
Installation Height :
7-8m
Discharge time :
3-5 rainy days
Controller :
MPPT controller
Light angle :
120° / >95%
Cloud platform :
IoT Control Management System (optional)
Lighting Method :
Intelligent + Microwave + Segmented time control
Warranty :
3 years
Applications :
Road Lighting / Industrial Parks / Highways / Urban Street / Countryside
Description

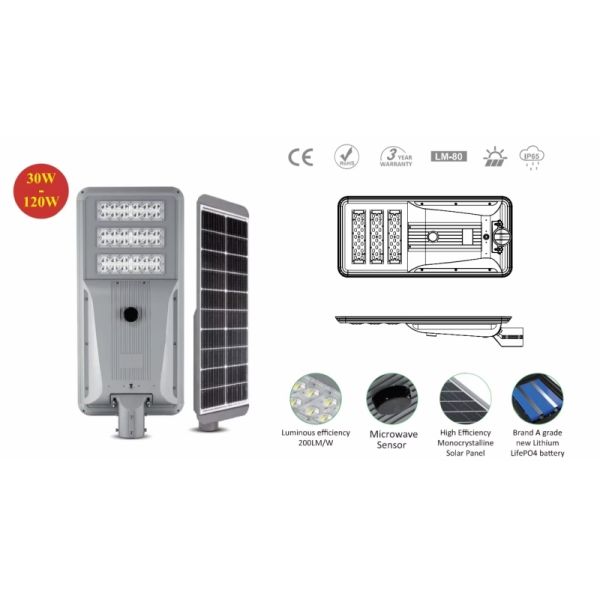

High Brightness all in one Solar Street Light LED Outdoor Lighting
1. Core Features
High Efficiency, Wide Application
  • Power range: 30W–120W, luminous flux: 6000LM–24000LM, suitable for rural paths to urban main roads.
  • Monocrystalline solar panel (18V/50W–18V/150W), 23.8% conversion efficiency, fully charged in 4–6 hours.
3–5 Days Rainy Weather Backup
  • Built-in high-capacity LiFePO4 battery (3.2V 72Ah–12.8V 75Ah), ensures continuous lighting for 3–5 days in overcast/rainy conditions.
Smart Control, Energy Saving
  • Three modes: Smart (auto on/off), Microwave Sensor (motion-activated), and Dimming (4h 100% → 2h 50% → rest 30%).
  • Energy saving up to 30% with motion detection and scheduled dimming.
Industrial-Grade Durability
  • Die-casting aluminum + pure aluminum heat dissipation, operates in -30℃ to 60℃.
  • IP65 waterproof, dustproof, corrosion-resistant, ideal for deserts, coasts, and high-altitude areas.
  • Mounting height: 5–12m, illuminates up to 20m wide roads.
2. Product Specifications Table
Model Power Solar Panel Battery Luminous Flux Mounting Height Rainy Days Application
LKH-30W 30W 18V/50W Mono 3.2V 72Ah 6000LM 5–6m 3–5 days Rural paths, alleys
LKH-40W 40W 18V/60W Mono 3.2V 100Ah 8000LM 6–7m 3–5 days Residential streets
LKH-60W 60W 18V/80W Mono 12.8V 30Ah 12000LM 7–8m 3–5 days Industrial parks
LKH-80W 80W 18V/105W Mono 12.8V 45Ah 16000LM 8–10m 3–5 days Urban secondary roads
LKH-100W 100W 18V/125W Mono 12.8V 60Ah 20000LM 10–11m 3–5 days Main roads, squares
LKH-120W 120W 18V/150W Mono 12.8V 75Ah 24000LM 11–12m 3–5 days Highways, large areas
High Brightness all in one Solar Street Light LED Outdoor Lighting

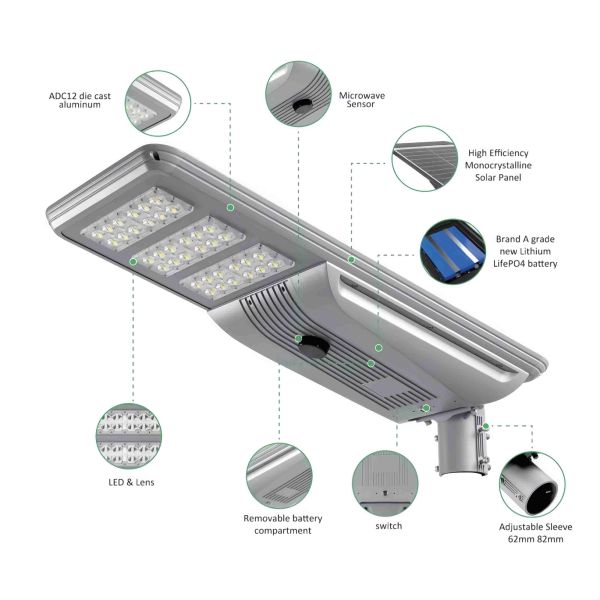

3. Technical Highlights
  • Solar Panel: A-grade monocrystalline silicon, 200LM/W efficiency, anti-UV, anti-aging.
  • Battery: Grade A LiFePO4, 2000+ cycles, stable performance in extreme temperatures.
  • LED Chips: SMD 3030, 4-core high-efficiency design, 50,000+ hours lifespan.
  • Controller: MPPT controller, 98% charging efficiency, overcharge/overdischarge protection.
  • Optional: IoT cloud platform for remote monitoring and management.
High Brightness all in one Solar Street Light LED Outdoor Lighting
4. Why Choose LKH Series?
  • Cost-effective: No electricity bill, low maintenance, 3-year warranty.
  • Eco-friendly: 100% solar powered, zero carbon emission.
  • Easy Installation: All-in-one design, no wiring needed, plug-and-play.
  • Smart Management: Optional IoT system for real-time status monitoring and fault alerts.
High Brightness all in one Solar Street Light LED Outdoor Lighting
5. Applications
  • Urban & Rural Roads
  • Industrial Parks & Warehouses
  • Residential Communities
  • Parking Lots & Gardens
  • Highways & Squares

High Brightness all in one Solar Street Light LED Outdoor Lighting
