Specifications
Brand Name :
KC-TYD5105
Model Number :
KC-TYD5105-3
Certification :
CE,IP65
Place of Origin :
Shenzhen
MOQ :
10
Price :
contact us
Payment Terms :
T/T,Western Union
Supply Ability :
8000pcs/month
Delivery Time :
5-8work days
Packaging Details :
carton
Product Name :
Solar Garden Lamp
Model NO. :
KC-TYD5105-3
Charge Time :
6–8 Hrs (Full Sun)
Working Time :
12–16 Hrs (Full Charge)
Waterproof :
IP65
Installation Height :
ole Mount (Dia. 8.9 cm)
Discharge time :
2–3 Rainy Days
Controller :
MPPT controller
Light :
Philips 2835 SMD × 240 pcs
Lighting Method :
Automatic Dusk-to-Dawn + Manual Switch
Applications :
Garden, Pathway, Patio, Driveway, Park
Color Temperature :
3000K (Warm White) / 6500K (Cool White)
Warranty :
2 years
Description
Smart Solar Garden & Road Lights Roadside Solar Panel LED Lamp Post with High Mast Lighting Poles
Elegant Design • High Efficiency • Weatherproof Durability
Product Overview

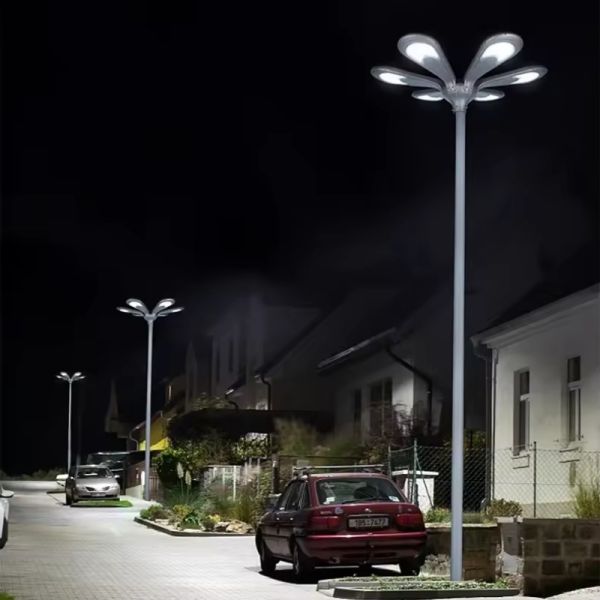

The Road Lights Roadside Solar Panel LED Lamp combines modern aesthetics with advanced lighting technology to deliver reliable, energy-efficient outdoor illumination for streets, parks, campuses, and residential areas. Available in both Solar Power and AC Power versions, these lights feature Philips LED chips, durable die-cast aluminum construction, and IP65 waterproof rating — built to withstand harsh weather conditions from -20°C to 50°C.
Choose between the compact 3-Head model (KC-TYD5105-3) or the high-output 6-Head model (KC-TYD5105-6) — each designed for optimal light distribution and long-term performance.
Design Features

Flower-Inspired Aesthetic: Unique petal-shaped design blends seamlessly into urban and natural landscapes.

Adjustable Angles: Each head can be tilted for precise directional lighting.

Dual Power Options: Choose solar for off-grid sustainability or AC for consistent brightness.

Premium Materials: Die-cast aluminum housing ensures corrosion resistance and longevity.

IP65 Waterproof: Fully protected against dust and water jets — ideal for all climates.

Smart Solar Garden & Road Lights Roadside Solar Panel Led Lamp Post with High Mast Lighting Poles
Technical Specifications
Parameter KC-TYD5105-3 (Solar) KC-TYD5105-3 (AC Power) KC-TYD5105-6 (Solar) KC-TYD5105-6 (AC Power)
Model Name Shengshi Lily 3 Heads (Solar Energy) Shengshi Lily 3 Heads (AC power) Shengshi Lily 6 Heads (Solar power) Shengshi Lily 6 Heads (AC Power)
Power Source Solar AC Grid Solar AC Grid
Solar Panel Mono 48W / 5V -- Mono 96W / 5V --
Battery LiFePO4 3.2V / 60AH -- LiFePO4 3.2V / 120AH --
Light Source Philips 2835 SMD × 240 pcs Philips 2835 SMD × 240 pcs Philips 2835 SMD × 480 pcs Philips 3030 SMD × 480 pcs
Light Color White / Warm White White / Warm White White / Warm White White / Warm White
Shell Color Sandy Gray / Black Sandy Gray / Black Sandy Gray / Black Sandy Gray / Black
Material Die-cast Aluminum + PC Die-cast Aluminum + PC Die-cast Aluminum + PC Die-cast Aluminum + PC
Waterproof Rating IP65 IP65 IP65 IP65
Working Temperature -20°C ~ 50°C -20°C ~ 50°C -20°C ~ 50°C -20°C ~ 50°C
Lamp Head Size 1660 × H435 mm 1660 × H435 mm 1660 × H435 mm 1660 × H435 mm
Pole Connection Dia. 8.9 cm Dia. 8.9 cm Dia. 8.9 cm Dia. 8.9 cm
Net Weight (Unit) 11.33 kg ~11.33 kg* 29.06 kg ~29.06 kg*
Gross Weight (Unit) 12.44 kg ~12.44 kg* 32.05 kg ~32.05 kg*
Packaging Configuration Leaf Carton: 83×36×40 cm
Support Parts: 39×39×37 cm		 Light Head Carton: 83×36×40 cm
Support Parts: 39×39×37 cm		 2× Leaf Cartons (83×36×40 cm)
Support Parts: 39×39×37 cm		 Leaf Carton: 83×36×40 cm
Support Carton: 39×39×37 cm
* Approximate weight for AC power models
Model Comparison
Choose the perfect Shengshi Lily light for your project — whether you need compact 3-head design or high-output 6-head configuration, solar-powered sustainability or reliable AC operation. All models feature premium Philips LEDs, rugged die-cast aluminum housing, and IP65 weatherproof protection.
Frequently Asked Questions
Q: Can I mix solar and AC models in one order?
A: Yes! We offer flexible MOQs and mixed container loading.
Q: What's the warranty period?
A: Standard 2-year warranty covering manufacturing defects. Extended warranties available.
Q: Do you provide installation guides or videos?
A: Absolutely — downloadable PDF manuals and YouTube tutorials included with every shipment.
Q: Is there a dimming option?
A: Yes — compatible with external dimmers or internal timer controllers (optional upgrade).
