12KW All-In-One Hybrid Inverter with dual MPPT, parallel capability, and 99% efficiency — powerful, flexible, and built for homes and businesses.

Part 1 – Overview & Features

Product Introduction

The ALL Series 12KW Pro All-In-One Hybrid Inverter is a powerful, intelligent, and highly flexible energy management solution for residential and commercial applications. With a massive 12kW output, dual MPPT trackers, and parallel capability, this inverter is built to handle heavy loads, large solar arrays, and complex energy scenarios with ease.

Whether you're upgrading a home solar system, powering a small business, or building a large off-grid setup, the ALL 12KW Pro delivers exceptional performance, efficiency, and reliability.

Key Features

• 12kW Rated Output – 12KVA / 12KW power for heavy-duty applications.

• Dual MPPT Trackers – 160A total charging current; supports up to 15kW solar input (9000W per MPPT + 7500W×2).

• Parallel Ready – Supports parallel connection for expanded capacity and redundancy.

• Dual AC Outputs – Independent outputs for flexible load management.

• Wide MPPT Voltage Range – 60–500Vdc, compatible with most solar panel configurations.

• High Efficiency – Peak efficiency up to 99% (PV to inverter) and 93% (battery to inverter).

• Pure Sine Wave Output – Clean and stable power, safe for sensitive electronics.

• Fast Transfer Time – 10ms (PC mode) / 20ms (household mode).

• Battery Flexibility – 48V battery system with CC/CV charging; supports LiFePO₄ communication via RS485.

• Multiple Output Priority Modes – SUB, SBU, SUF modes for optimized energy usage.

• No Battery Operation – Can work without a battery for solar direct supply.

• Removable Dust Cover – Protects against harsh environments.

• Remote Monitoring – Optional WiFi module for app-based monitoring and control.

• EQ Function – Equalization charging to optimize battery performance and extend life.

Part 2 – Key Specifications (Table)

Part 3 – Details & Convenience

Built for Power. Designed for Ease.

The ALL Series 12KW Pro combines industrial-grade performance with user-friendly features:

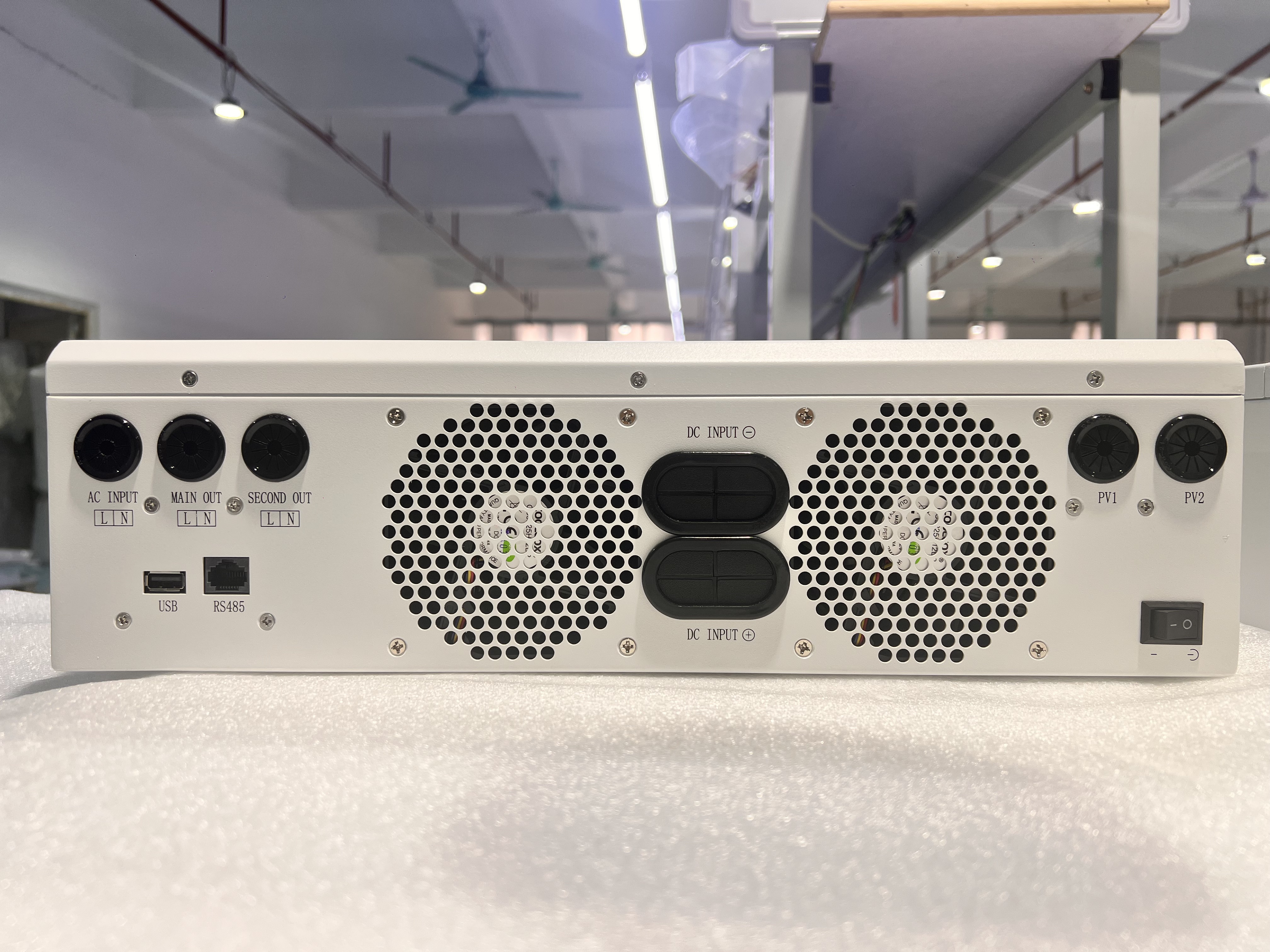

• Plug-and-Play Connectivity – Pre-configured ports for solar, battery, and grid make installation straightforward.

• Intuitive LCD Display – Real-time monitoring of input, output, load, and battery status with easy navigation buttons.

• Flexible Output Management – Dual AC outputs let you prioritize critical and non-critical loads separately.

• Smart Priority Modes – Choose from SUB (Solar-Utility-Battery), SBU (Solar-Battery-Utility), or SUF (Solar-Utility-First) to optimize energy use.

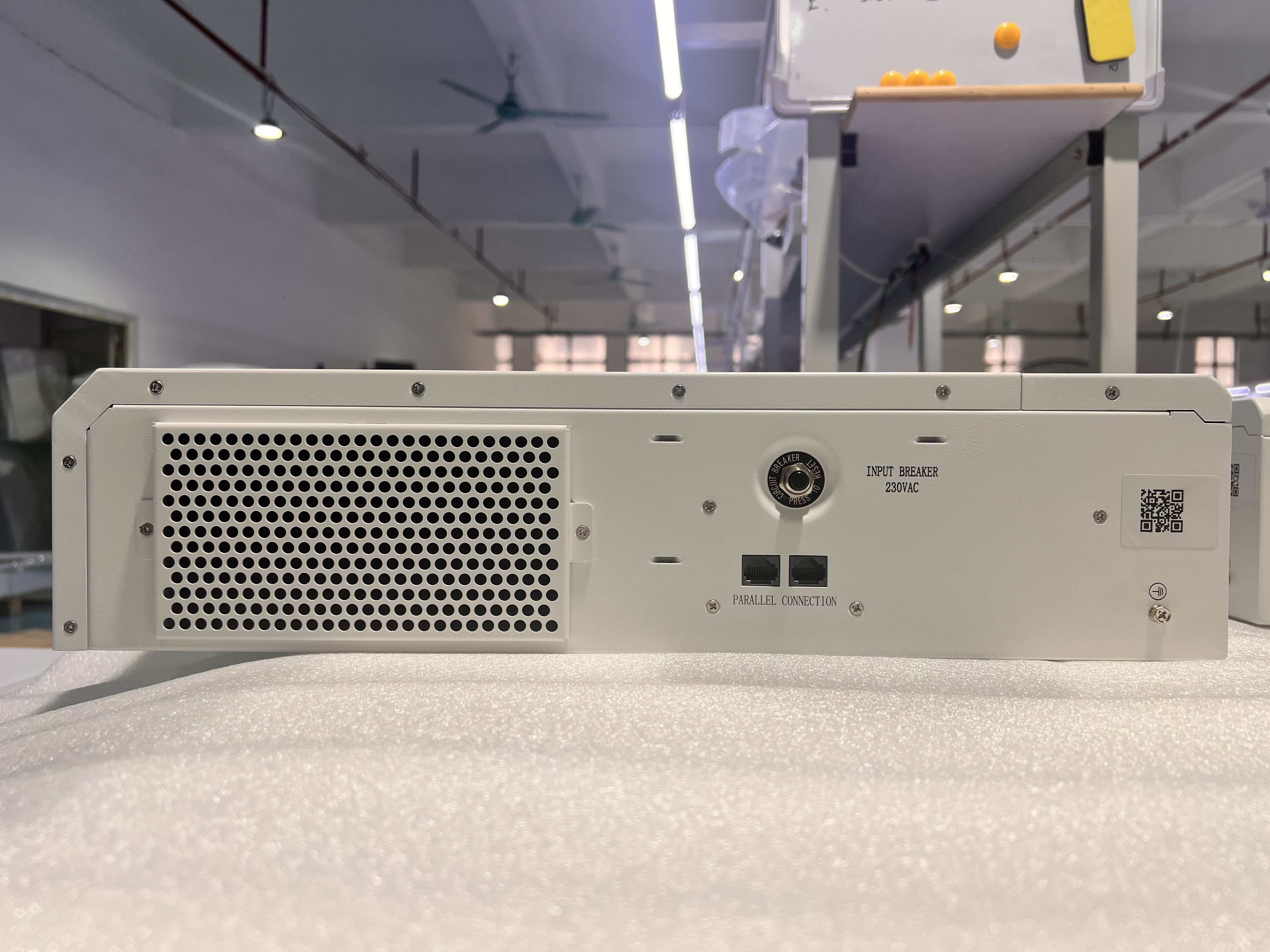

• Parallel Expansion – Start with one unit and scale up as your energy needs grow.

• Dual MPPT Trackers – Maximize solar harvest even with panels facing different orientations.

• Removable Dust Cover – Keeps internal components clean in dusty environments, extending product life.

• No Battery Required – System can operate purely on solar during the day, saving battery cycles.

• EQ Function – Maintenance charging ensures longer battery lifespan.

• Remote Monitoring – Optional WiFi module allows you to check system status anytime, anywhere via mobile app.

Reliable Protection

• Overload Protection – Automatic shutdown at 140%+ load (5s) and 110–140% load (10s).

• Battery Protection – Overcharge protection at 63Vdc with CC/CV charging algorithm.

• Temperature Control – Intelligent fan cooling for stable operation.

• Surge Protection – Handles up to 22,000VA peak power.

Part 4 – Application Scenarios

Where Can You Use It?
