Hot Dipped Galvanized 9m 10m LED Street Light Pole
Hot Dipped Galvanized 9m 10m LED Street Light Pole
Hot Dipped Galvanized 9m 10m LED Street Light Pole
Hot Dipped Galvanized 9m 10m LED Street Light Pole
Hot Dipped Galvanized 9m 10m LED Street Light Pole
Hot Dipped Galvanized 9m 10m LED Street Light Pole
Hot Dipped Galvanized 9m 10m LED Street Light Pole
Hot Dipped Galvanized 9m 10m LED Street Light Pole
Specifications
Brand Name :
Yahua lighting
Model Number :
YHZ-LP
Certification :
CE ROHS
Place of Origin :
China
MOQ :
30pcs
Price :
USD90-USD120
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000pcs
Delivery Time :
5-8Days
Packaging Details :
Foam
Item type :
Light pole
Warranty(year) :
10
Application :
ROAD,Roadway,outdoor,park Highway
Lamp body material :
Q235 Steel
Standard :
ASTM
street light pole :
Hot galvanized pole
Description

9m 10m Single double arm hot dipped galvanized light pole

Type Street Lamp pole, lamp post, Lamp column, Street Light Pole
Shape Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Material Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490ST52
Torlance of dimenstion ±0.02
Design Load in Kg 300~ 1000 Kg appliced to 50cm from the to pole
Surface treatment

Hot dip galvanized Following ASTM A 123, color polyester power or any other

standard by client required.

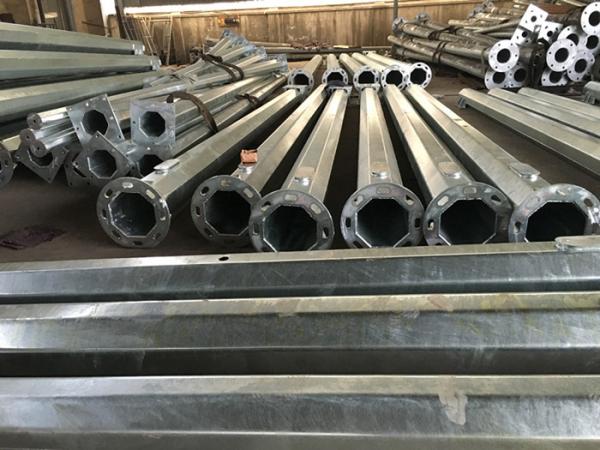

Standard Octagonal tapered column
Conforms to Standard:
Pole design : BS EN 40
Material : BS EN 10025 S275 / JIS G3101 SS400
Welding : BS 5135
Galvanizing : BS 729 / ISO 1461 ASTM A 123
Length of per section Within 14m once forming without slip joint.
Suit for Highway
Roadway
Residential subdivisions
Commercial development
Option Height from 6m to 12m
Flange mounted or planted type
Variable arm length from 0.125m to 3.0m with single or double arm type
Variable spigot size from 35mm to 60mm.

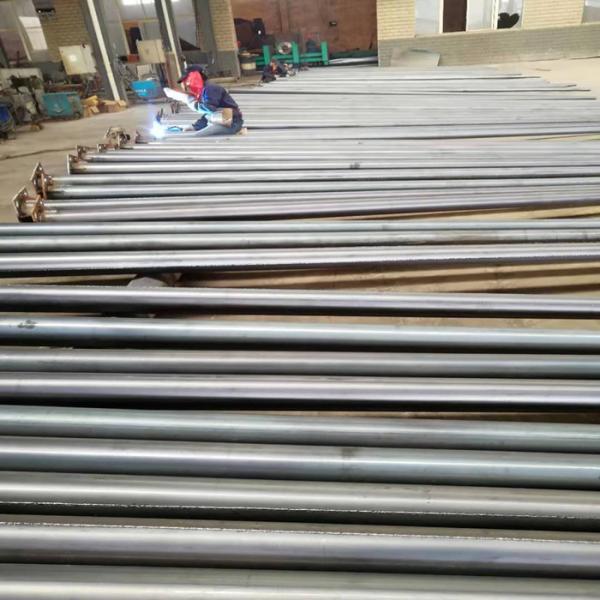

Production Process

Raw material test → Cutting →Molding or bending →Welidng (longitudinal )→

Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→

Galvanization or powder coating ,painting →Recalibration →Thread →Packages
Packages

Our poles as normal cover by bubble pack/blanket or straw bale at the top and

bottom ,anyway also can following by client required

Warranty At least 20 years.

Hot Dipped Galvanized 9m 10m LED Street Light Pole

Hot Dipped Galvanized 9m 10m LED Street Light Pole

Hot Dipped Galvanized 9m 10m LED Street Light Pole
