3KW Home Hybrid Solar Power System With Lithium Battery
3KW Home Hybrid Solar Power System With Lithium Battery
3KW Home Hybrid Solar Power System With Lithium Battery
3KW Home Hybrid Solar Power System With Lithium Battery
3KW Home Hybrid Solar Power System With Lithium Battery
3KW Home Hybrid Solar Power System With Lithium Battery
3KW Home Hybrid Solar Power System With Lithium Battery
3KW Home Hybrid Solar Power System With Lithium Battery
Specifications
Brand Name :
No brand
Model Number :
SHS3000
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
,T/T,Western Union
Supply Ability :
50 sets/month
Delivery Time :
7 working days
Packaging Details :
Carton, plywood box
Power Output :
3000 Watt
Inverter Type :
High Frequency Inverter
System Voltage :
24Vdc
Solar Panel :
350W*6
Panel Type :
Mono
Daily Power Generation :
10KWH
Battery Capacity :
2.56KWH
Battery Type :
Lithium Battery
Description

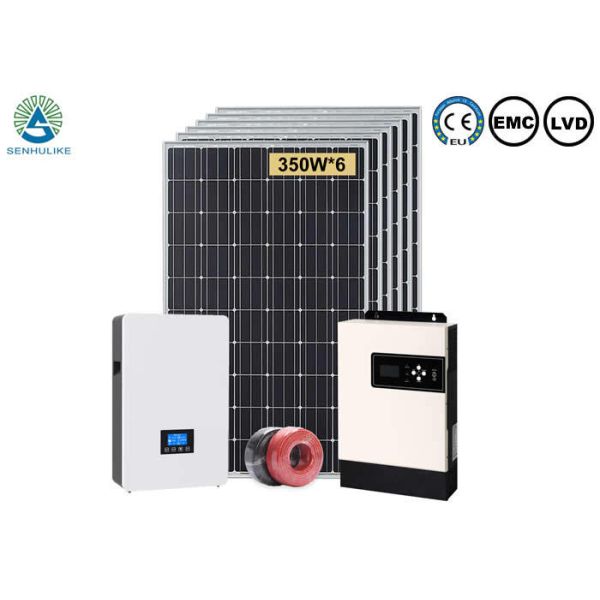

3KW Hybrid Solar Power System With Lithium Battery For Home Use

Description:

1.This is a hybrid solar power system, which means user can choose solar or home electricity to power the home appliances.

2.The solar inverter with a high PV input voltage capacity, more convenient to connect solar panels.

3.Based on an average of 5 hours of sunshine per day, solar panels can generate about 10KWH of electricity, which is enough for a household's basic daily consumption.

4.Around 2.5KWH power can be stored in the lithium battery when fully charged.

3KW Home Hybrid Solar Power System With Lithium Battery

Quick Detail:

1.Hybrid system can achieve solar and ac power complementarity;

2.Mono solar panels, higher efficiency;

3.High-frequency inverter has higher inverter efficiency;

4.Lithium battery discharges more power than lead acid battery.

Specification:

PRODUCTS ITEMS SPECIFICATIONS

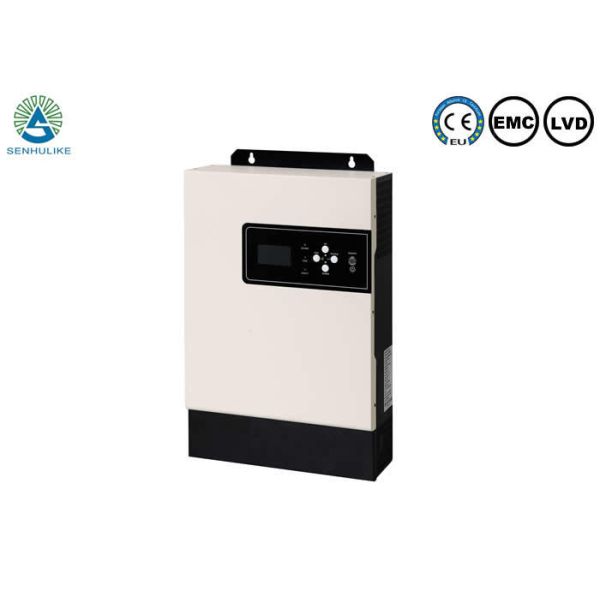

Solar Inverter Rated Output Power 3000W
System Voltage 24Vdc
Built-in Mppt Charger 100A
Max PV Input Power 4000W
Max PV Input Voltage 500Vdc

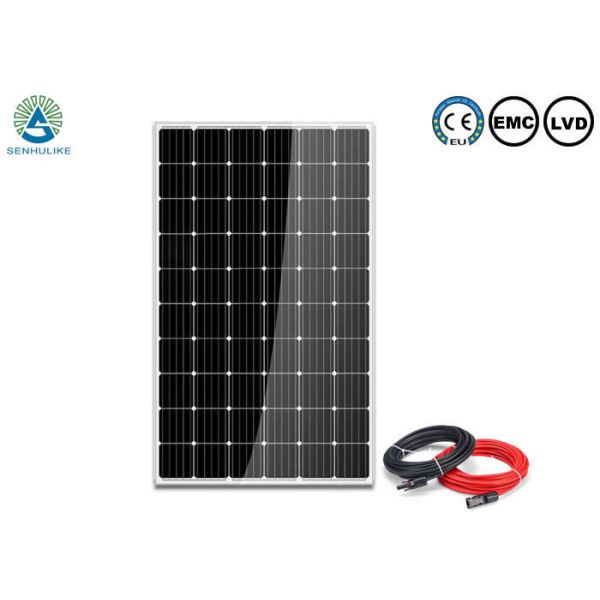

Solar Panel Rated Power 350W
Type Monocrystalline
Quantity 6 pieces
Daily Power Generation 10KWH

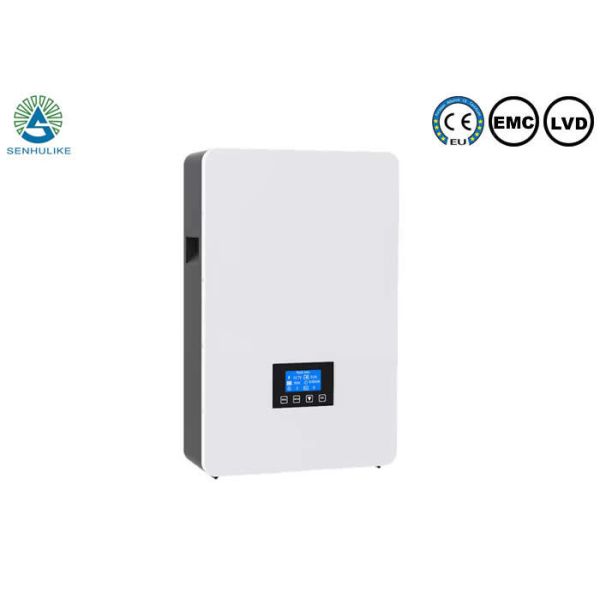

Lithium Battery Battery capacity 100Ah/25.6V
Power Storage 2.56KWH
Type LiFePO4
PV Cables Length Black & red 20 meters each
MC4 Connector Quantity 1 pair

FAQ:

1.Q: How does a solar power system work?
A: Solar panels convert sunlight into direct current (DC) electricity, which is then transformed into household alternating current (AC) by an inverter. Excess energy can be stored in batteries for backup.

2.Q: Can the system still generate electricity on cloudy/rainy days or at night?
A: Power generation decreases during cloudy/rainy weather, and the system doesn't produce electricity at night. During nighttime, the system will draw power from battery and supply to the appliances.

3.Q: How much is a complete solar power system?

A: Solar power system needs to be customized, because every household uses different electrical appliances.

4.Q: What should I do?

A: Please contact our sales manager and tell us which appliances need to be powered. Then we will design a solution for your house.
