IP65 Anodized Aluminum Alloy Solar PV Panel
IP65 Anodized Aluminum Alloy Solar PV Panel
IP65 Anodized Aluminum Alloy Solar PV Panel
IP65 Anodized Aluminum Alloy Solar PV Panel
IP65 Anodized Aluminum Alloy Solar PV Panel
IP65 Anodized Aluminum Alloy Solar PV Panel
Specifications
Brand Name :
NACYC ENERGY
Model Number :
DS-10M6-36
Certification :
CE,SGS,TUV
Place of Origin :
Fujian, China
MOQ :
3 Kilowatts
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
300 kilowatts per month
Delivery Time :
Shipped in 15 days after payment
Packaging Details :
250KW/40ft, 100KW/20ft
Solar Size :
350*255*17mm
Module efficiency :
11.2%
Weight :
1.00 kg
Framed :
Anodized aluminium alloy
Front Glass :
3.2mm tempered glass
Junction box :
IP65
Cell arrangement :
36 cells in series
Cell efficiency :
16.4%
Description

Anodized Aluminum Alloy IP65 Solar PV Panel 10 Years Warranty Efficiency Solar Module

Product usage

1. Application: Home&Residental; Commericial; Industrial; Large scale development

2. Solar system type: on grid solar system; off grid solar system; Hybrid solar system

Product parameters

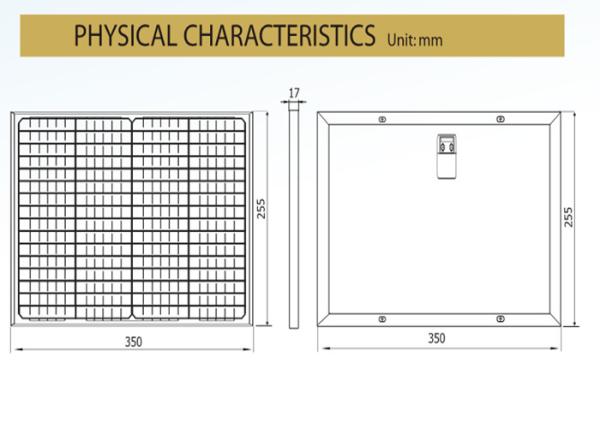

Solar size 350mm*255mm*17mm
Weight 1.00KGS
Framed Anodized aluminium alloy
Module efficiency 11.2%
Front Glass 3.2mm tempered glass
standards CE; SGS; TUV
Junction box IP65
Cell arragement 36 cells in series
Cell efficiency 16.4%
Warranty Ten years warranty
Duratiom More than 20 years

Product advantage

1. Easy installation, maximized pre-assembly, great savings on labor and cost.the structures of rails and girders are the same, ensure a shorter delivery.

2. Great Flexibility, no matter it’s a few solar panel residential installation, framed photovoltaic modules can be easily deployed. The solar system has mounting accessories designed for almost every type of installations.
3. Excellent Compatibility, designed as a universal racking system, framed modules from all the popular manufactures can be used.
4. Excellent Adaptability, the angle of the rails has been designed to maximum the harveast of solar power according to your local latitude.
5. Engineered To High Standards, all aluminum design, excellent endurance,the high corrosion resistance guarantees the maximum possible lifespan and is also completely recyclable.
6. All the modules are sorted and packaged by amperage, reducing mismatch losses and maximizing system output.

IP65 Anodized Aluminum Alloy Solar PV PanelIP65 Anodized Aluminum Alloy Solar PV Panel
