Adjustable Orientation Ground Mounting System PV Panel Mounting For Concrete Block Or Screw Pile
Adjustable Orientation Ground Mounting System PV Panel Mounting For Concrete Block Or Screw Pile
Adjustable Orientation Ground Mounting System PV Panel Mounting For Concrete Block Or Screw Pile
Adjustable Orientation Ground Mounting System PV Panel Mounting For Concrete Block Or Screw Pile
Adjustable Orientation Ground Mounting System PV Panel Mounting For Concrete Block Or Screw Pile
Adjustable Orientation Ground Mounting System PV Panel Mounting For Concrete Block Or Screw Pile
Specifications
Brand Name :
NACYC ENERGY
Model Number :
Metis GM
Place of Origin :
Fujian, China
MOQ :
50 Kilowatts
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10 Megawatts per month
Delivery Time :
Shipped in 15 days after payment
Packaging Details :
250KW/40ft, 100KW/20ft
Certification :
SGS
Solar Power (W) :
Customized
Technical Support :
Provided
Size :
Customized
Foundation :
ground or rolling slope
Factory Visit :
Accepted
Warranty :
10 years
Material :
Aluminum
Description

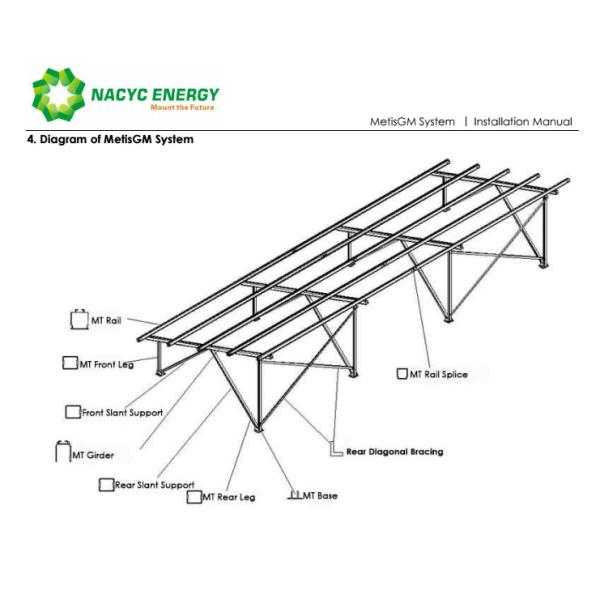

High Quality Ground Mounting System suitable for Concrete block or screw pile

Advantages:

1)Reinforced Metis rail for severe wind&snow condition

2)Muiti-rows design,making full use of land

3)Main structure made of aluminum AL6005-T5 with at least 10μm of anodized finishing, ideal for coastal projects;

4)Reinforced structure delivers durability and stability throughout the 25-year lifespan of your solar plant;

5)Light-weight design for easy and fast installation;

6)Engineered to high standards, all aluminum design, excellent endurance, the high corrosion resistance guarantees the maximum possible lifespan and is also completely recyclable

Technical Datasheet

Orientation: Landscape &Portrait
Application: Concrete block or screw pile
Material Anodized Aluminum (rail&clamp),Q235 steel(screw piles),SUS304(bolts&nuts)
PV module: Framed
Standards AS/NZS1170(AU),NTC2008(IT),EN1900,EN1999(EU),BS63969(UK)
Warranty 10 years

Adjustable Orientation Ground Mounting System PV Panel Mounting For Concrete Block Or Screw PileAdjustable Orientation Ground Mounting System PV Panel Mounting For Concrete Block Or Screw PileAdjustable Orientation Ground Mounting System PV Panel Mounting For Concrete Block Or Screw Pile
