Specifications
Brand Name :
BL
Certification :
ISO9001、ISO14001、ISO45001、CQC
Place of Origin :
Anhui, China
MOQ :
1
Price :
USD2000-4000
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
100sets/month
Delivery Time :
7-15 Days
Packaging Details :
Wooden /Box
Model Number :
BLCT-P020
processing capacity :
99%
productivity :
800L/Hour
weight (kg) :
450
Function :
make pure drinking water
Voltage :
220v 380V 50HZ 60HZ（Or customize）
Advantage :
24 Hours Automatic Running
core components :
Pressure vessel, Pump, Engine, motor, PLC
​​Water Source :
Surface water (rivers, lakes, ponds) or Groundwater (wells, boreholes). Pre-treatment highly recommended for very turbid or contaminated water.
Description

Short Description:​​

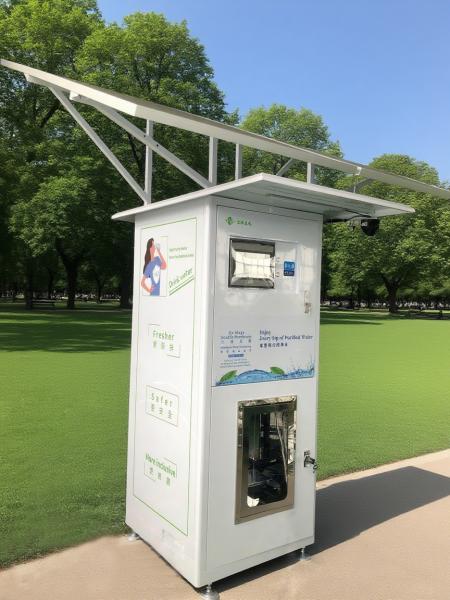

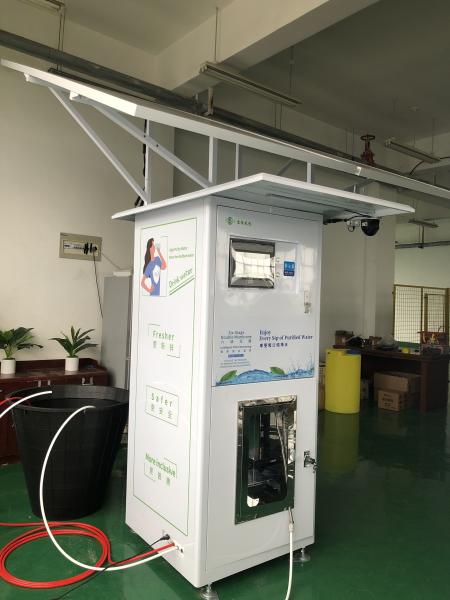

The PureSolar Off-Grid Water Purification System is an innovative, self-contained solution designed to turn virtually any freshwater source (rivers, lakes, boreholes, wells) into safe, clean drinking water using ONLY solar energy. No grid power, no generators, just pure hydration powered by sunlight. Engineered for resilience and simplicity, it's perfect for remote locations, disaster relief, off-grid living, eco-tourism, and sustainable development projects.


​​Key Features & Benefits:​​

​​1.100% Solar Powered:​​ Integrated high-efficiency PV panels power the entire process – no batteries needed for operation (simpler, less maintenance).

2.​​Advanced Multi-Stage Purification:​​ Rigorous filtration and disinfection removes pathogens (bacteria, viruses, protozoa) and improves taste/odor (Pre-filter, UF Membrane, Activated Carbon, Optional Solar UV).

​​3.Zero Energy Waste:​​ Intelligent design powers the system (pump/UV) only when purifying water.

​​4.Simple & Robust:​​ Plug-and-play operation. UV-resistant, corrosion-resistant construction for harsh environments. Low maintenance (easy cartridge replacement).

​​5.Portable & Scalable:​​ Compact units for mobility; modular design for larger needs.

6.​​Eco-Conscious:​​ Eliminates plastic bottles and fossil fuel dependence.

​​7.Safe & Reliable:​​ Produces water meeting/exceeding WHO drinking water guidelines.


Technical Specifications (Example - PureSolar PS-500):​

Feature Specification

​​Model​​

PureSolar PS-500

​​Daily Output​​

~500 Liters / 132 US Gallons (at 1000 W/m² solar irradiance; output varies with sunlight intensity)

​​Water Source​​

Surface Water (Rivers, Lakes, Ponds), Groundwater (Wells, Boreholes) Pre-treatment recommended for turbid/contaminated water

​​Filtration Process​​

1. 50 Micron Sediment Pre-filter

2. 5 Micron Activated Carbon Block Filter

3. 0.01 Micron Hollow Fiber UF Membrane

4. Integrated Solar UV Sterilizer (Optional)

​​Contaminant Removal​​

* Bacteria: >99.9999% (Log 6)

* Protozoan Cysts (e.g., Giardia, Crypto): >99.9999% (Log 6)

* Viruses: >99.999% (Log 5)

* Turbidity/Sediment: >99.9%

* Chlorine/Taste/Odor: Significant Reduction

* Note: Does not reduce TDS (dissolved salts). For brackish/saltwater, see Solar RO systems.

​​Solar Power​​

* Integrated Panel: 200W Monocrystalline (High-Efficiency)

* Operating Voltage: 12V/24V DC (Direct Drive)

* Power Consumption: ~80-150W (System Total)

​​Flow Rate​​

~8-12 Liters per Minute (Steady state, sunlight dependent)

​​Inlet/Outlet​​

Standard Food-Grade Quick-Connect Fittings (1/2" or 3/4")

​​Operating Conditions​​

* Ambient Temp: 0°C to 50°C (32°F to 122°F)

* Source Water Temp: 2°C to 45°C (36°F to 113°F)

* Max Inlet Pressure: < 2 bar (29 PSI - Gravity/Booster Pump Optional)

​​Dimensions (HxWxD)​​

Approx. 185cm x 80cm x 80cm

​​Weight​​

Approx. 450kg
Supporting material

UV-Stabilized Engineering Polymer, Stainless Steel Brackets


scene graph
