96V 80A MPPT Solar Regulator Australia OEM ODM 3 Years Warranty At Least
96V 80A MPPT Solar Regulator Australia OEM ODM 3 Years Warranty At Least
96V 80A MPPT Solar Regulator Australia OEM ODM 3 Years Warranty At Least
96V 80A MPPT Solar Regulator Australia OEM ODM 3 Years Warranty At Least
Specifications
Brand Name :
Yo Power Electrical
Model Number :
YQMS-G96-80
Certification :
CE, ROHS, FCC
Place of Origin :
Anhui, China
MOQ :
5 units
Price :
Negotiable
Payment Terms :
L/C, D/A, Western Union, T/T, MoneyGram, Paypal
Supply Ability :
1000units per month
Delivery Time :
within 3 days for 1~20pcs
Packaging Details :

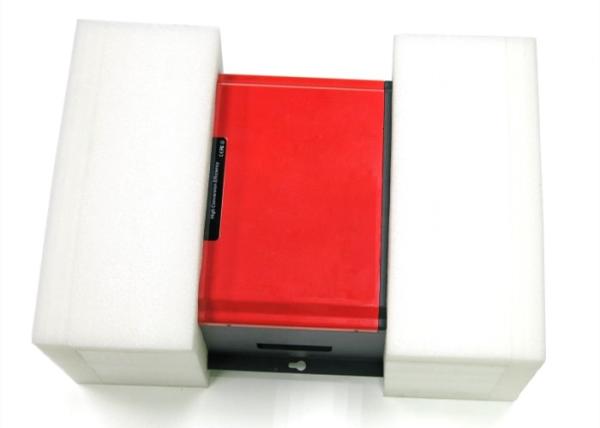

Carton box with pearl sponge
Rated voltage :
96V
Rated charging current :
80A
Max. input solar power :
8320W
Color :
Red
Warranty :
3 years
Display :
LCD
Description

96V 80A MPPT Solar Regulator Australia OEM ODM 3 Years Warranty At Least

This 96V 80A MPPT Solar regulator Australia is a high power MPPT solar controller, which is suitable for big power (8320W) solar power system.

1. Features

  • High efficiency MPPT charging technology
  • Three charging stages to prolong the service time of battery
  • With DC output, there are four ways to control the output
  • Support multi - machine parallel to realize system power upgrade
  • LCD shows the running data and working status
  • Support PC monitoring and APP monitoring
  • CE, ROHS, FCC certifications
  • 3 years warranty, and 3~10 years extended warranty service also can be provided

2. Parameters

Model YQMS-G96-80
Rated system voltage 96V
Rated charging current 80A
Max. PV input power

8320w
Max. PV input voltage 430V
Charging model MPPT (Maximum Power Point Tracking)
Regulator method PWM
MPPT efficiency more than 99.5%, whole machine efficiency upto 99.8%
MPPT tracking arrange 72V~128V
Starting charging voltage >Battery voltage+20V
Low voltage stop charging <battery voltage+10V

Selectable battery types

(Default type is GEL battery)

 Flooded, Sealed lead acid, Gel battery
(Other types of batterry also can be defined)
Output voltage Same to the rated system voltage
Load control current 80A
Output control method

Manual control, PV control, Time control mode, PV&Time control mode
Display LCD
Display language English
Cooling method Fan cooling
Ambient temperature -40℃~+75℃
Operation temperature -20℃~+50℃
Protection level IP21
Dimension 371*500*187mm
N.W 14.7KG
Packing size 590*420*270mm
G.W About 16.6KG
Communication

8-PIN RJ45 port/RS485 port support PC monitoring or

WIFI support APP monitoring
Packing information Carton box with pearl sponge
Warranty 3 years

96V 80A MPPT Solar Regulator Australia OEM ODM 3 Years Warranty At Least

3. Protection

  • PV & Battery reverse connect protection
  • Input Low Voltage Protection
  • Input Overvoltage Protection
  • Charge over voltage power Protection
  • Low Voltage output Protection
  • Rated output Current protection
  • Temperature Protection

4. DC load control mode

  • On mode
  • Off mode
  • PV control mode
  • Time control mode
  • PV & Time control mode

5. LCD backlight display

  • System type
  • Charging mode
  • Time
  • Date
  • Day/Month/Total generated energy
  • PV input voltage & input current
  • Battery type & battery voltage
  • Charging current & charging power
  • Load power & load type
  • Load current & load current
