2KW Horizontal Axis Wind Turbine Generator SR‑W20 48V/96V For Home Use Wind Power System
2KW Horizontal Axis Wind Turbine Generator SR‑W20 48V/96V For Home Use Wind Power System
2KW Horizontal Axis Wind Turbine Generator SR‑W20 48V/96V For Home Use Wind Power System
2KW Horizontal Axis Wind Turbine Generator SR‑W20 48V/96V For Home Use Wind Power System
2KW Horizontal Axis Wind Turbine Generator SR‑W20 48V/96V For Home Use Wind Power System
2KW Horizontal Axis Wind Turbine Generator SR‑W20 48V/96V For Home Use Wind Power System
2KW Horizontal Axis Wind Turbine Generator SR‑W20 48V/96V For Home Use Wind Power System
2KW Horizontal Axis Wind Turbine Generator SR‑W20 48V/96V For Home Use Wind Power System
2KW Horizontal Axis Wind Turbine Generator SR‑W20 48V/96V For Home Use Wind Power System
2KW Horizontal Axis Wind Turbine Generator SR‑W20 48V/96V For Home Use Wind Power System
Specifications
Model Number :
SR-W20
Payment Terms :
L/C,D/A,D/P,T/T
Place of Origin :
Beijing, China
Price :
USD 667
Delivery Time :
10-15work days
Brand Name :
Aokun
MOQ :
1 piece
Description

SR‑W20 2KW Horizontal Axis Wind Turbine Generator

Our SR‑W20 series horizontal‑axis wind turbine is designed for household, farm, remote off‑grid wind power supply system. Rated power reaches 2KW, max output 2.2KW, optional working voltage 48V or 96V.

✅ Key Advantages

  1. Low start‑up wind speed 2m/s, make full use of low‑wind‑speed resources.
  2. 3 pieces FRP blades, light weight, high strength, anti‑aging.
  3. Built‑in electromagnetic brake system, safe protection under strong wind condition.
  4. Tail automatic wind‑tracking design, keep blades facing wind direction automatically.
  5. IP65 protection grade, aluminium alloy housing, adapt to harsh outdoor environment from ‑40℃ to 80℃.
  6. Long service life up to 20 years, stable performance for long‑term outdoor operation.

Tower support, controller and inverter are optional accessories, please contact us for quotation if you need them.
Item		 Specification
Model SR‑W20
Rated Power 2KW
Max Power 2.2KW
Nominal Voltage 48V / 96V

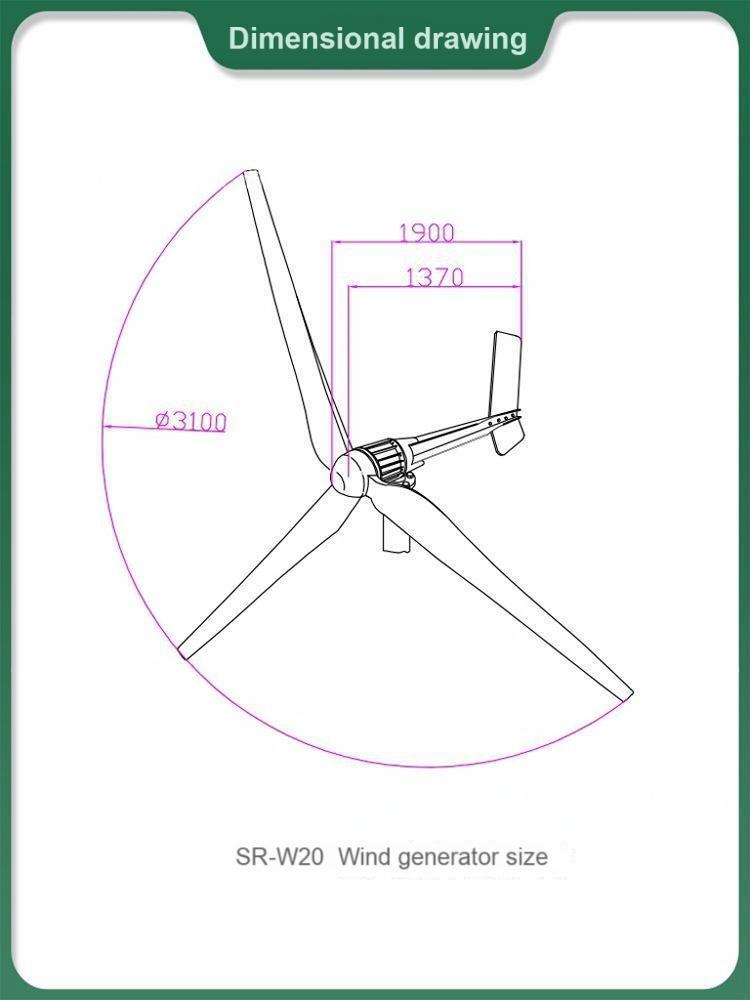

Rotor Diameter 3.1M
Blade Quantity 3 PCS
Blade Material FRP / Fiberglass Reinforced Plastic
Start‑up Wind Speed 2M/S
Cut‑in Wind Speed 4M/S
Rated Wind Speed 11M/S
Survival Wind Speed 53M/S
Generator Type Three‑phase AC Permanent Magnet Generator
Generator Housing Material Aluminium Alloy
Surface Treatment Plastic Spraying
Insulation Class F
Protection Degree IP65
Magnet Material NdFeB
Brake Mode Electromagnetic Brake
Wind Adjustment Tail Automatic Windward
Working Temperature -40℃ ~ 80℃
Design Service Life 20 Years
Packing Carton
Tower Support Optional
Controller / Inverter Optional
