10kV Amorphous Alloy Epoxy Resin Cast Dry-type Power Transformer SCBH15 SCBH17 SCBH19,30-2500kVA Three Phase Dry Transformer for Residential Zone,Mine,School,Airport,Low Loss Energy Saving Transformer
10kV Amorphous Alloy Epoxy Resin Cast Dry-type Power Transformer SCBH15 SCBH17 SCBH19,30-2500kVA Three Phase Dry Transformer for Residential Zone,Mine,School,Airport,Low Loss Energy Saving Transformer
10kV Amorphous Alloy Epoxy Resin Cast Dry-type Power Transformer SCBH15 SCBH17 SCBH19,30-2500kVA Three Phase Dry Transformer for Residential Zone,Mine,School,Airport,Low Loss Energy Saving Transformer
10kV Amorphous Alloy Epoxy Resin Cast Dry-type Power Transformer SCBH15 SCBH17 SCBH19,30-2500kVA Three Phase Dry Transformer for Residential Zone,Mine,School,Airport,Low Loss Energy Saving Transformer
10kV Amorphous Alloy Epoxy Resin Cast Dry-type Power Transformer SCBH15 SCBH17 SCBH19,30-2500kVA Three Phase Dry Transformer for Residential Zone,Mine,School,Airport,Low Loss Energy Saving Transformer
10kV Amorphous Alloy Epoxy Resin Cast Dry-type Power Transformer SCBH15 SCBH17 SCBH19,30-2500kVA Three Phase Dry Transformer for Residential Zone,Mine,School,Airport,Low Loss Energy Saving Transformer
10kV Amorphous Alloy Epoxy Resin Cast Dry-type Power Transformer SCBH15 SCBH17 SCBH19,30-2500kVA Three Phase Dry Transformer for Residential Zone,Mine,School,Airport,Low Loss Energy Saving Transformer
10kV Amorphous Alloy Epoxy Resin Cast Dry-type Power Transformer SCBH15 SCBH17 SCBH19,30-2500kVA Three Phase Dry Transformer for Residential Zone,Mine,School,Airport,Low Loss Energy Saving Transformer
10kV Amorphous Alloy Epoxy Resin Cast Dry-type Power Transformer SCBH15 SCBH17 SCBH19,30-2500kVA Three Phase Dry Transformer for Residential Zone,Mine,School,Airport,Low Loss Energy Saving Transformer
10kV Amorphous Alloy Epoxy Resin Cast Dry-type Power Transformer SCBH15 SCBH17 SCBH19,30-2500kVA Three Phase Dry Transformer for Residential Zone,Mine,School,Airport,Low Loss Energy Saving Transformer
10kV Amorphous Alloy Epoxy Resin Cast Dry-type Power Transformer SCBH15 SCBH17 SCBH19,30-2500kVA Three Phase Dry Transformer for Residential Zone,Mine,School,Airport,Low Loss Energy Saving Transformer
10kV Amorphous Alloy Epoxy Resin Cast Dry-type Power Transformer SCBH15 SCBH17 SCBH19,30-2500kVA Three Phase Dry Transformer for Residential Zone,Mine,School,Airport,Low Loss Energy Saving Transformer
Specifications
Model Number :
SCBH Series
MOQ :
1
Price :
USD 5659 / piece
Payment Terms :
L/C,D/A,D/P,T/T
Place of Origin :
China
Brand Name :
Aokun
Description

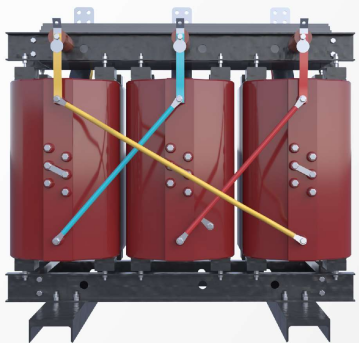

This 10kV Amorphous Alloy Epoxy Resin Cast Dry-type Power Transformer complies with GB 20052-2020 national standard and IEC, ANSI/IEEE, NEMA standards. Models include SCBH15, SCBH17, SCBH19 with capacity from 30kVA to 2500kVA. Primary voltage 6kV-35kV, secondary rated 0.4kV, 5 tap positions, 50/60Hz three-phase, vector group Dyn11/Yyn0, impedance 4%-6%.
It adopts amorphous alloy core, cutting no-load loss by 75% vs silicon steel transformers for superior energy saving. Vacuum epoxy casting removes air bubbles, partial discharge below 5PC, flame retardant, explosion-proof and pollution-free. Low temperature rise and noise, high mechanical strength resists sudden short-circuit impact. Ideal for residential quarters, commercial malls, mines, airports, stations, schools and urban infrastructure with fluctuating power load, greatly cutting power consumption and pollution, customizable capacity, voltage and cooling enclosure.
