HY-TB7000 Series Retention Box
HY-TB7000 Series Retention Box
HY-TB7000 Series Retention Box
HY-TB7000 Series Retention Box
HY-TB7000 Series Retention Box
HY-TB7000 Series Retention Box
HY-TB7000 Series Retention Box
HY-TB7000 Series Retention Box
HY-TB7000 Series Retention Box
HY-TB7000 Series Retention Box
Specifications
Certification :
ccc
Delivery Time :
5-8
Place of Origin :
china
MOQ :
1
Supply Ability :
99999
Brand Name :
tianke
Description

Product Description

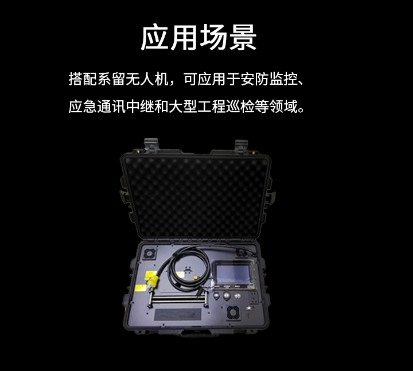

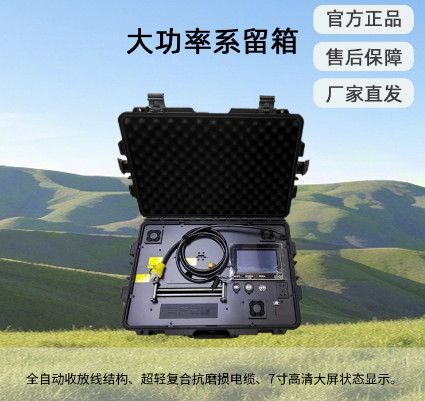

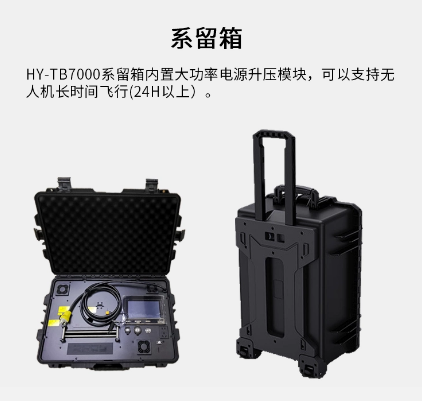

The HY-TB7000 Tethered Box is a high-power ground power supply equipment designed specifically for industrial tethered drones. It features a built-in high-power step-up module, an adjustable-tension fully automatic cable winding structure, ultra-light composite wear-resistant cables, and a 7-inch HD large screen for status display. The retractable pull rod facilitates equipment relocation, and the built-in efficient cooling system supports long-duration drone flights (over 24 hours).

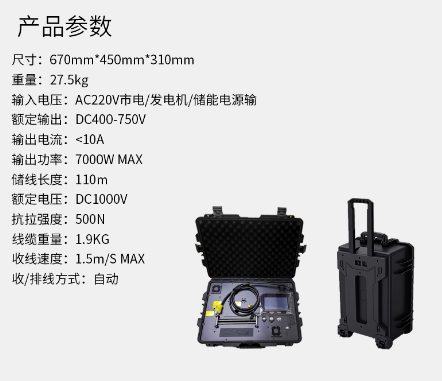

Technical Parameters

Dimensions: 670mm*450mm*310mm

Cable Length: 110m

Weight: 27.5kg

Rated Voltage: DC1000V

Input Voltage: AC220V Mains/Generator/Energy Storage Power

Tensile Strength: 500N

Rated Output: DC400-750V

Cable Weight: 1.9KG

Output Current: <10A

Retrieval Speed: 1.5m/S MAX

Output Power: 7000W MAX

Winding/Unwinding Method: Automatic
