Heat Exchange Enamelling cylinder 100Liter Furnace Water Tank Wall Mounted
Heat Exchange Enamelling cylinder 100Liter Furnace Water Tank Wall Mounted
Heat Exchange Enamelling cylinder 100Liter Furnace Water Tank Wall Mounted
Heat Exchange Enamelling cylinder 100Liter Furnace Water Tank Wall Mounted
Specifications
Brand Name :
longpu
Place of Origin :
china
MOQ :
10 sets
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
10000sets per month
Delivery Time :
25 days
Packaging Details :
cartons,wooden cases
Insulation :
42mm
Material of outer shell :
PCM Colored Steel Plate
Capacity :
100L,150L,200L
Material of inner tank :
Enamel Steel Plate
Diameter of water tank :
500mm
Pressure :
0.7Mpa
Application :
Air Heating And Hot Water Supply
Description

Heat Exchange Enamelling cylinder 100Liter Furnace Water Tank Wall Mounted

Longpu brand wall mounted boiler water tank is designed for heating and hot water supply. It has high quality enamel steel plate inner tank and 42mm insulation material. The diameter of water tank is 500mm, and the capacity is 100L, 150L, and 200L.
The wall mounted boiler water tank is ideal for use in residential and commercial buildings. It is easy to install and maintain. With its high quality material, it is able to provide hot water for a long time without any problems.
Longpu wall mounted boiler water tanks are widely used in many places such as hotels, schools, hospitals, shopping malls, and so on.
The wall mounted boiler water tank is highly reliable and efficient. It is energy-saving and cost-effective. With its long-lasting performance, it is able to provide hot water for a long time and save energy.
Longpu wall mounted boiler water tanks are reliable and durable. They are designed to provide hot water for a long time without any problems. The wall mounted boiler water tanks are also easy to install and maintain, so you don't need to worry about any trouble.


Quick details:

  1. Model:500series

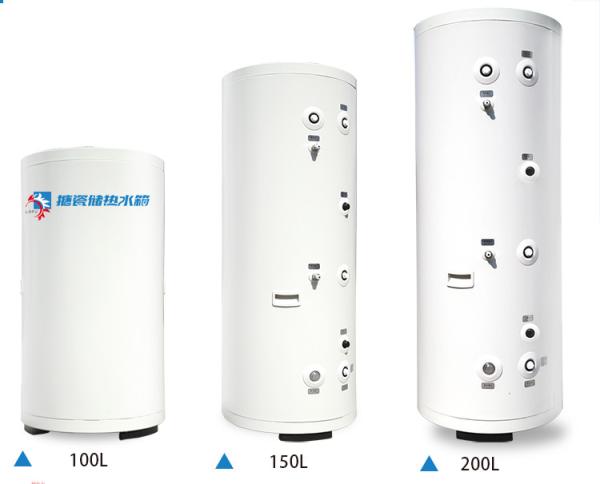

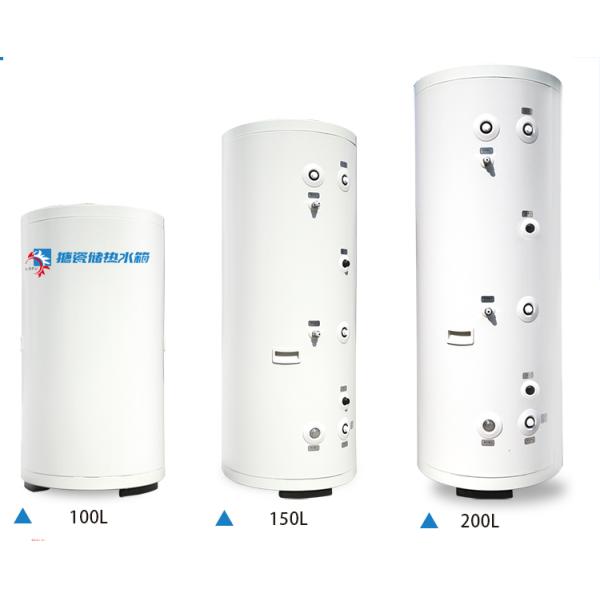

  2. Capacity:100L,150L,200L
  3. Diameter of water tank:500mm
  4. Insulation:42mm
  5. Pressure:0.7MPa
  6. Material of inner tank:enamel steel plate
  7. Material of outer shell:PCM colored steel plate
  8. Application:air heating and hot water supplyHeat Exchange Enamelling cylinder 100Liter Furnace Water Tank Wall Mounted

Technical Parameters:

Technical parameter for wall mounted furnace heat exchange enamel water tank
Capacity100L150L200L
Dimension of water tank(mm)Φ500*957Φ500*1327Φ500*1677

Gross/Net
Weight

38/34Kg50/45Kg60/55Kg
Heat exchange methodCopper coil heat exchange
Plate material and thickness of inner tank(mm)Material: enameling steel plate ,Grade:BTC210R
Thickness:2.0mm
Process:The inner surface is first sandblasted and then enameled.
Material and thickness of out shell(mm)Out shell Material:PCM colored steel plate,
Out shell thickness: 0.4mm
Out shell color:Gray white color,
Printing on out shell: can be customized
Size of inlet and outlet and pipe mouthThe size of the inlet and outlet is 4 internal threads, the size of the return outlet is 4 internal threads, the size of the T/P valve interface is 4 internal threads, the size of the medium outlet is 4 external threads, and the size of the discharge outlet is 6 internal threads.
Temperature sensing mouth:2pcsHeating tube :optionalPolyurethane insulation layer thickness(mm)42mmRated working pressure: inner tank:0.70MPA


Heat Exchange Enamelling cylinder 100Liter Furnace Water Tank Wall Mounted

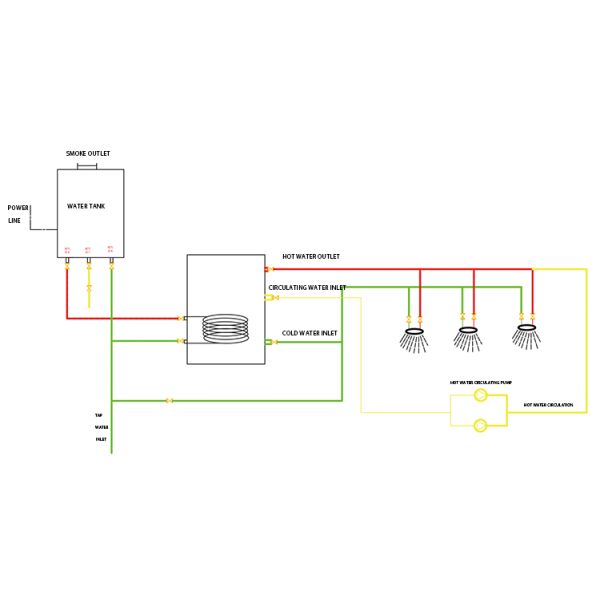

The hot water system of the wall mounted farnace water tank meets the hot water needs of households' kitchens and

showers. It can be installed in the kitchen or bathroom and can store a large amount of hot water at once, ready to use. It

can also be used at multiple points simultaneously to avoid frequent start-up of wall mounted boilers, extend their service

life, and save gas costs.

Heat Exchange Enamelling cylinder 100Liter Furnace Water Tank Wall Mounted

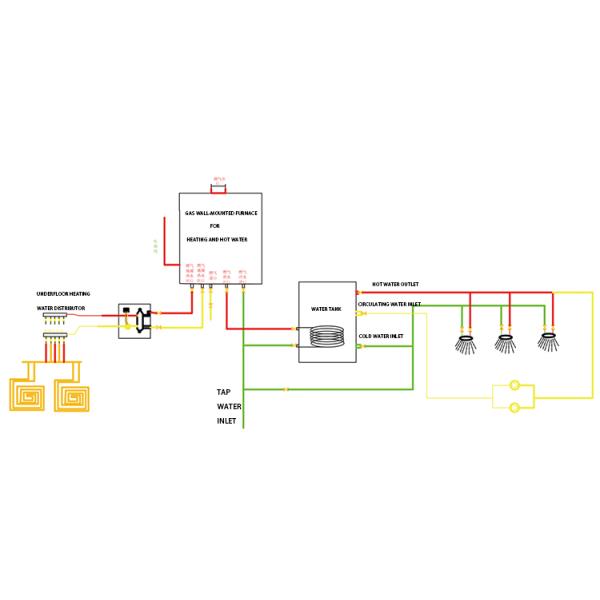

The wall mounted furnace dual purpose system can meet both household hot water and heating needs. When the wall

mounted furnace operates efficiently, it is equipped with a Longpu enamel heat exchange water tank, which has sufficient

hot water volume and does not affect the operating conditions of underfloor heating. The pressure bearing design of the

water tank makes bathing more comfortable and safe to use.

Heat Exchange Enamelling cylinder 100Liter Furnace Water Tank Wall Mounted
Heat Exchange Enamelling cylinder 100Liter Furnace Water Tank Wall MountedHeat Exchange Enamelling cylinder 100Liter Furnace Water Tank Wall Mounted


OEM and ODM orders are warmly welcomed.We have rich ODM OEM experience.

We can customize product as your requests.Please don't hesitate to contact us if you have any demands.

Heat Exchange Enamelling cylinder 100Liter Furnace Water Tank Wall Mounted

Heat Exchange Enamelling cylinder 100Liter Furnace Water Tank Wall Mounted

Heat Exchange Enamelling cylinder 100Liter Furnace Water Tank Wall Mounted

Heat Exchange Enamelling cylinder 100Liter Furnace Water Tank Wall Mounted


Heat Exchange Enamelling cylinder 100Liter Furnace Water Tank Wall Mounted

Questions and Answers about Wall Mounted Boiler Water Tank

Q1. What is the capacity of Wall Mounted Boiler Water Tank?
A1. 100L,150L,200L

Q2. What is the material of Wall Mounted Boiler Water Tank?
A2. The material of inner water tank is enamel steel plate.

Q3. What is the use of Wall Mounted Boiler Water Tank?

A2. It's used for heating and hot water supply.

Q3: Are you a manufacturer or trading company??

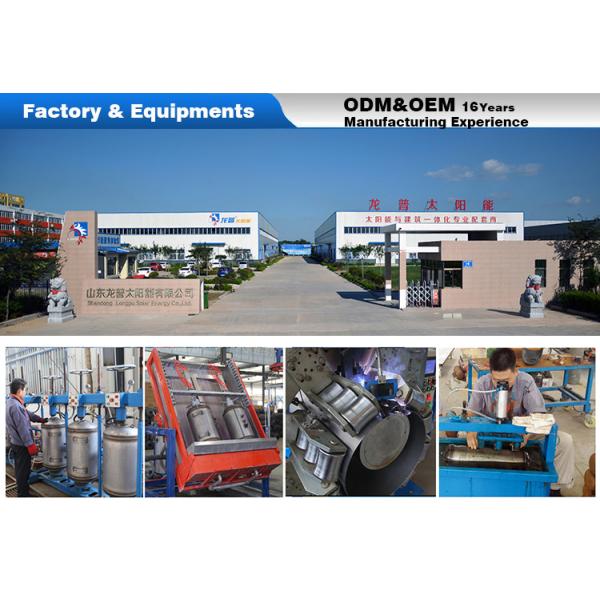

A3: Shandong Longpu Solar Energy Co., Ltd. (Stock Code: 870395) ,established in 2008,is a high-tech enterprise specializing in the research, design and manufacture of enamel hot water storage tanks, solar water heaters, solar collectors,solar vacuum tube and solar cooker oven
