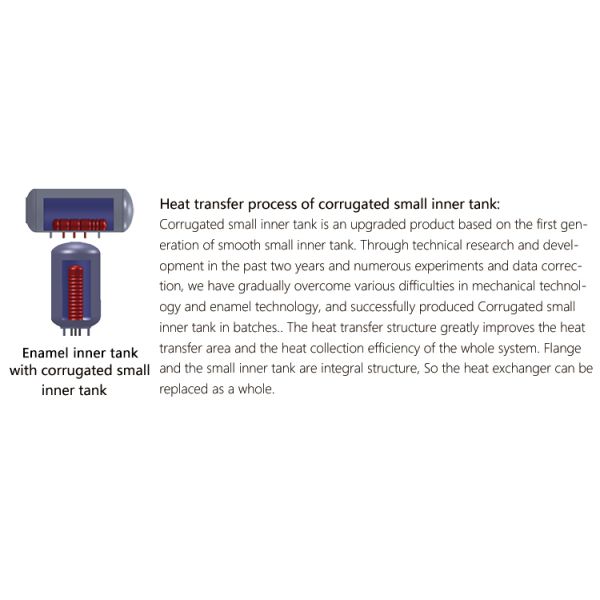

Heat transfer process of corrugated small inner tank:
Corrugated small inner tank is an upgraded product based on the first generation of smooth small inner tank. Through technical research and development in the past two years and numerous experiments and data correction, we have gradually overcome various difficulties in mechanical technology and enamel technology, and successfully produced Corrugated small inner tank in batches.. The heat transfer structure greatly improves the heat transfer area and the heat collection efficiency of the whole system. Flange and the small inner tank are integral structure, So the heat exchanger can be replaced as a whole.

small inner tank heat exchanger refers to the small tank heat exchanger designed inside the inner enamel tank of heat storage water tank . This small tank is used for heat exchange. Because it is a small tank inside the inner enamel liner, so it is called tank-in-tank heat exchange.
Material of the small inner tank: Enamelled
Structural style: corrugated tank

Features:
1.Strong pressure resistance
2. Large heat exchange area

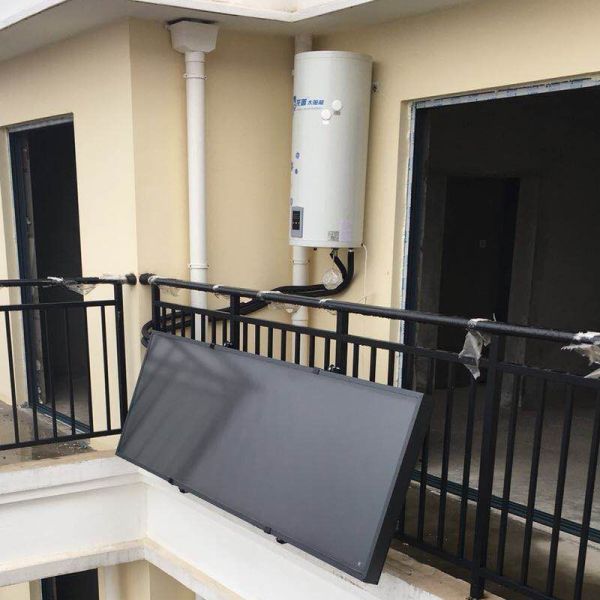

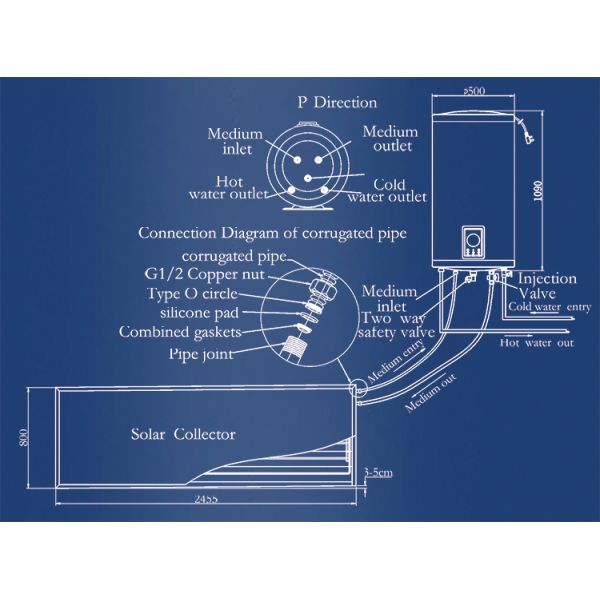

Application:Used for Solar balcony wall mounted system and Centralized heat collection and household heat storage system

OEM and ODM orders are warmly welcomed.We have rich ODM OEM experience.

We can customize product as your requests.Please don't hesitate to contact us if you have any demands.

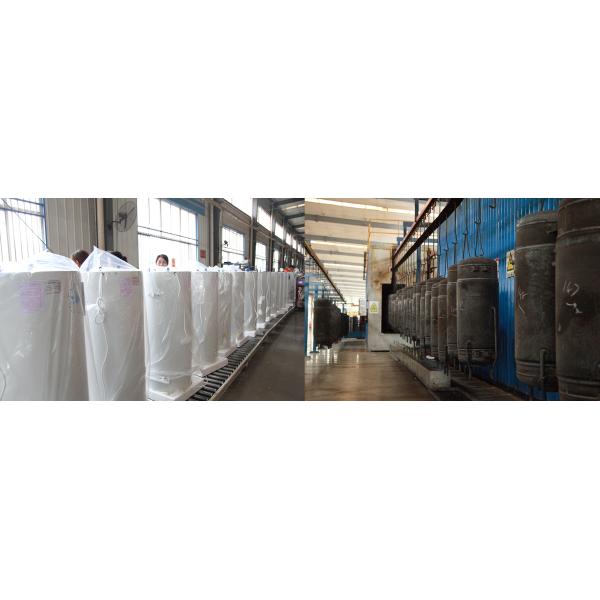

Established in 2008,Shandong Longpu Solar Energy Co., Ltd. (Stock Code: 870395) is a high-tech enterprise specializing in the research, design and manufacture of enamel hot water storage tanks, solar water heaters, solar collectors,solar vacuum tube and solar cooker oven. With Shandong Haovat New Energy Co., Ltd., as a wholly-owned subsidiary, it covers an total area of 65,000 square meters with a total capacity of 600,000 sets per year.
Our main products includes heat storage enamel solar water tanks ,air source heat pump household enamel water tank, air source heating buffer water tank,balcony solar water heater,split solar water heater, integrated solar water heater,tankless solar water heater,flat plate solar collector,solar vacuum tube and solar cooker.

FAQ:

Q1: Are you a manufacturer or trading company??
A: Shandong Longpu Solar Energy Co., Ltd. (Stock Code: 870395) ,established in 2008,is a high-tech enterprise specializing in the research, design and manufacture of enamel hot water storage tanks, solar water heaters, solar collectors,solar vacuum tube and solar cooker oven

Q2: What's the capacity of Enamel Solar Water Tank ?
A: 60L,80L,100L,120L.

Q3: What is the material of your Enamel Solar Water Tank?
A: The Material of inner tank is enamel steel plate,the material of outer shell is PCM colored steel plate.

Q4:Can you supply OEM &ODM service ?
A:Yes, but there is a minimum order quantity required.
