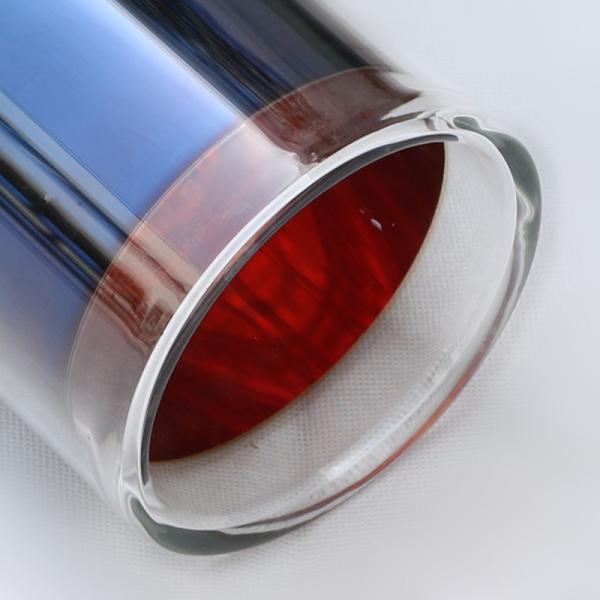

137x1860mm Big Size Solar Collector Tube High Efficiency Three Target All Glass Thermal Solar Vacuum Tube
137x1860mm Big Size Solar Collector Tube High Efficiency Three Target All Glass Thermal Solar Vacuum Tube
137x1860mm Big Size Solar Collector Tube High Efficiency Three Target All Glass Thermal Solar Vacuum Tube
137x1860mm Big Size Solar Collector Tube High Efficiency Three Target All Glass Thermal Solar Vacuum Tube
137x1860mm Big Size Solar Collector Tube High Efficiency Three Target All Glass Thermal Solar Vacuum Tube
137x1860mm Big Size Solar Collector Tube High Efficiency Three Target All Glass Thermal Solar Vacuum Tube
137x1860mm Big Size Solar Collector Tube High Efficiency Three Target All Glass Thermal Solar Vacuum Tube
137x1860mm Big Size Solar Collector Tube High Efficiency Three Target All Glass Thermal Solar Vacuum Tube
137x1860mm Big Size Solar Collector Tube High Efficiency Three Target All Glass Thermal Solar Vacuum Tube
137x1860mm Big Size Solar Collector Tube High Efficiency Three Target All Glass Thermal Solar Vacuum Tube
137x1860mm Big Size Solar Collector Tube High Efficiency Three Target All Glass Thermal Solar Vacuum Tube
137x1860mm Big Size Solar Collector Tube High Efficiency Three Target All Glass Thermal Solar Vacuum Tube
Specifications
Brand Name :
Longpu
Model Number :
137mm
Place of Origin :
china
MOQ :
50 pcs
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
10000pcs
Delivery Time :
25days
Packaging Details :
Cartons ,wooden cases
Structure :
Three Target
Length :
566mm, 610mm, 850mm, 1860mm, 2160mm
Outer Diameter of tube :
137mm
Material of tube :
Borosilicate Glass 3.3
Inner Diameter of tube :
121mm
Thickness of tube :
3.0mm
Application :
Solar Cooker,solar Water Heater ,solar Collector
Origin :
China
Description

137x1860mm Big Size Solar Collector Tube High Efficiency Three Target All Glass Thermal Solar Vacuum Tube

Solar Thermal Vacuum Tube is made of high-quality borosilicate glass 3.3, known for its superior thermal properties and durability. The tube is designed to efficiently absorb and retain solar energy, converting it into heat that can be used for various purposes.

The vacuum inside the tube ensures minimal heat loss, making it highly energy-saving. Its eco-friendly design makes it a sustainable alternative to conventional heating methods, reducing carbon footprint and promoting a cleaner environment.

137x1860mm Big Size Solar Collector Tube High Efficiency Three Target All Glass Thermal Solar Vacuum Tube

Technical parameter:

137x1860mm Big Size Solar Collector Tube High Efficiency Three Target All Glass Thermal Solar Vacuum Tube

Technical parameter of Three target solar vacuum tube
Outer tube diameter(mm) 125 125 137 137
Inner tube diameter(mm) 111 111 121 121
Tube Thickness(mm) 3
Tubes length(mm) 566/600/700/850/1860/2160mm (from 566mm to 2160mm)
Structure Three Target
Material Borosilicate Glass 3.3
Material of coating Copper, Aluminum, Stainless Steel
Absorptance ≥0.92
Emittance ≤0.06
Vacuum < 3×10-3 Pa
Transmittance of Outer Tube 0.92
Stagnation temperature (height) >200℃
Solar radiance exposure(MJ/m2) ≤3.6
Heat-loss coefficient(w/ (m2*℃) < 0.5
Pressure-endure ability 1 MPa
Application solar cooker,solar water heater ,solar collector

137x1860mm Big Size Solar Collector Tube High Efficiency Three Target All Glass Thermal Solar Vacuum Tube

Applications:

The Solar Thermal Vacuum Tube, produced by the brand Longpu, with the outer diameter of 137mm, is a product that can be used in various scenarios to harness solar energy and convert it into thermal energy for cooking, heating or other purposes. With its place of origin in China, this product is made with high-quality materials and advanced technology to provide efficient and eco-friendly solutions for energy needs.

137x1860mm Big Size Solar Collector Tube High Efficiency Three Target All Glass Thermal Solar Vacuum Tube

Customized Service for Solar Thermal Vacuum Tube

Our customized service for Solar Thermal Vacuum Tube is designed to meet your specific needs and requirements. With our brand, Longpu, we offer high-quality and durable evacuated solar tubes that are perfect for various applications such as solar cookers, solar water heaters, and solar collectors. Our tubes are made of borosilicate glass 3.3 with a thickness of 3.0mm, ensuring optimal performance and longevity.

137x1860mm Big Size Solar Collector Tube High Efficiency Three Target All Glass Thermal Solar Vacuum Tube

Packaging and Shipping for Solar Thermal Vacuum Tube

Our Solar Thermal Vacuum Tube is carefully packaged and shipped to ensure safe delivery to our valued customers.

Packaging:

The Solar Thermal Vacuum Tube is first wrapped in protective material to prevent any damage during transportation. It is then placed in a sturdy cardboard box with ample cushioning to further protect the product.

The box is sealed with strong tape and labeled with the product name and any necessary handling instructions.

Shipping:

We offer worldwide shipping for our Solar Thermal Vacuum Tube. Our preferred shipping method is through a reputable courier service, such as DHL or FedEx, to ensure timely and secure delivery.

For larger orders, we may use freight shipping to reduce costs for our customers. In this case, the product will be securely packaged on pallets and delivered to the designated shipping address.

We provide tracking information for all shipments so customers can easily track the progress of their order.

Our team carefully monitors the shipping process to ensure that the product arrives in excellent condition.

For any questions or concerns about packaging and shipping, please don't hesitate to contact us. We are committed to providing the best possible service for our customers.

137x1860mm Big Size Solar Collector Tube High Efficiency Three Target All Glass Thermal Solar Vacuum Tube

FAQ:

  • Q: What is the brand name of this product?
  • A: The brand name of this product is Longpu.
  • Q: What is the model number of this product?
  • A: The model number of this product is 137mm.
  • Q: Where is this product made?
  • A: This product is made in China.
  • Q: How is this product packaged?
  • A: This product is packaged in cartons.
  • Q: What is the main function of this product?
  • A: The main function of this product is to convert solar energy into heat.
  • Q: What is the size of the vacuum tube in this product?
  • A: The vacuum tube in this product has a diameter of 137mm.
