Specifications
Brand Name :
Amosolar
Model Number :
AS400-420M10-108
Place of Origin :
Anhui, China
Cell size :
182mmx182mm
Type :
PERC, Half Cell, All Black, MWT, HJT, N-TYPE, TOPCON
Panel Dimensions :
1723*1134*35mm
Panel Efficiency :
21.5%
Warranty :
25YEARS
Number of Cells: :
108 Cells (6x18)
Front Side Glass: :
High transparency solar glass 3.2mm
Junction Box: :
IP68 Rated
Frame: :
All Black Anodized Aluminium Alloy
Wind/Snow Load: :
2400Pa/5400Pa
Weight: :
20.9kg
Connector: :
MC4 Compatible Connector
Keyword: :
Half Cell All Black Mono Solar Panel
Backsheet: :
Black
Certificate :
CE/TUV/INMETRO
MOQ :
1000 watts
Price :
$0.18/watts 1000-99999 watts
Description

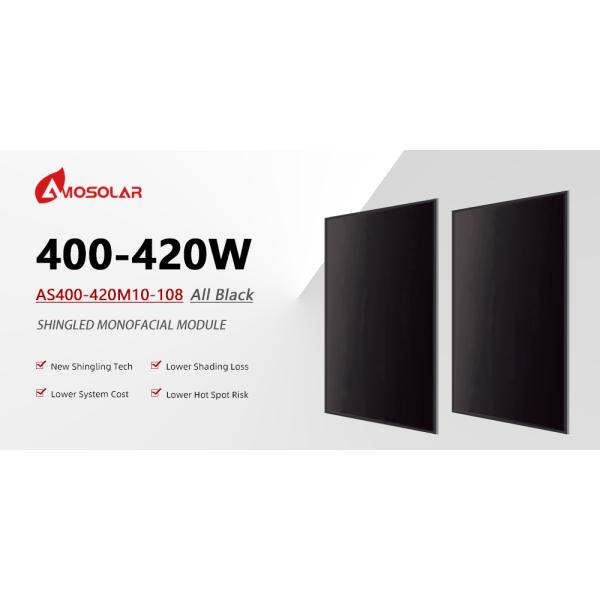

Solar Panel Description
Amosolar Solar 400w Shingled Solar Panels Connector MC4 Compatible Connector For Your
Amosolar Solar 400w Shingled Solar Panels Connector MC4 Compatible Connector For Your
Certifications
Amosolar Solar 400w Shingled Solar Panels Connector MC4 Compatible Connector For Your

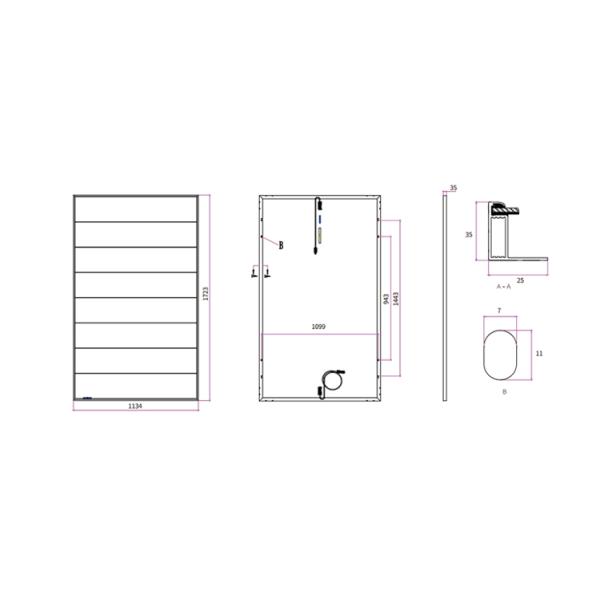

Mechanical Data
Model
AS400M10-108
AS405M10-108
AS410M10-108
AS415M10-108
AS420M10-108
Rated Maximum Power at STC
400W
405W
410W
415W
420W
Open Circuit Voltage (Voc)
43.50
43.58
43.61
43.66
43.68
Maximum Power Voltage (Vmp)
37.78
37.82
38.31
38.32
38.44
Short Circuit Current (Isc)
11.33
11.43
11.44
11.53
11.54
Maximum Power Current (Imp)
10.59
10.72
10.71
10.83
10.93
PV Module Efficiency (%)
20.5
20.7
21.0
21.3
21.5
Standard
Inradiance 1000w/m² ， Cell Temperature 25 ℃ ， Air Mass 1.5
Amosolar Solar 400w Shingled Solar Panels Connector MC4 Compatible Connector For Your
Amosolar Solar 400w Shingled Solar Panels Connector MC4 Compatible Connector For Your
Amosolar Solar 400w Shingled Solar Panels Connector MC4 Compatible Connector For Your
Strict QC System
Amosolar Solar 400w Shingled Solar Panels Connector MC4 Compatible Connector For Your
Amosolar Solar 400w Shingled Solar Panels Connector MC4 Compatible Connector For Your
Amosolar Solar 400w Shingled Solar Panels Connector MC4 Compatible Connector For Your
Amosolar Solar 400w Shingled Solar Panels Connector MC4 Compatible Connector For Your
External Assessment
After Lamination,Check Each Panels
Make sure that the surface of eachsolar panel is complete, clean and correct.

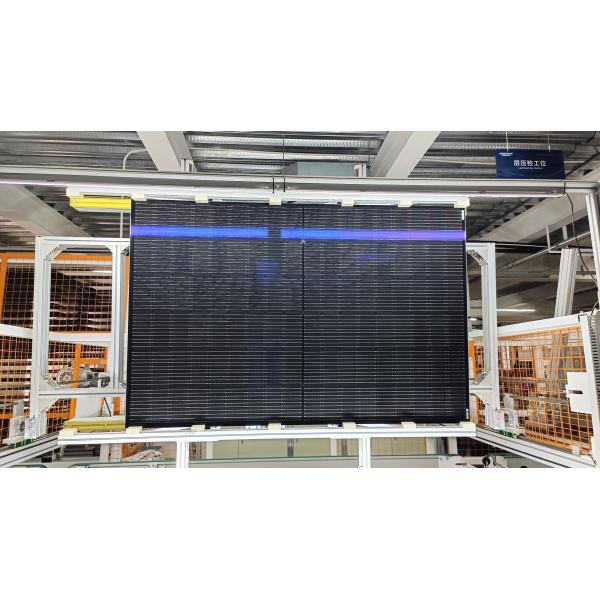

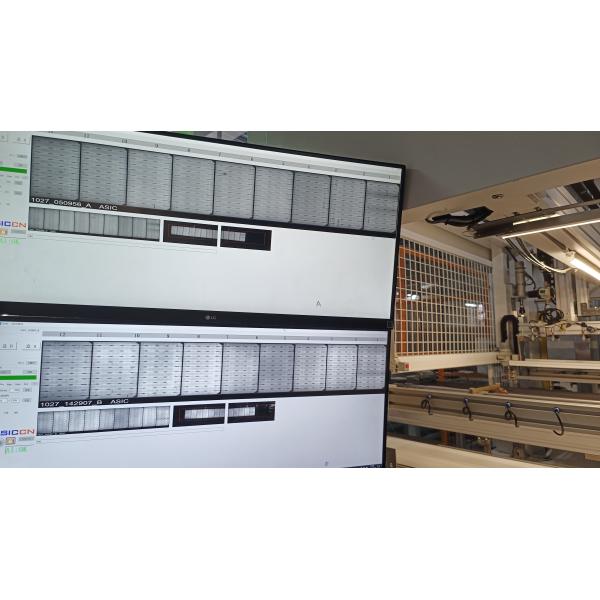

EL Testing
Before and Following Lamination,Twice Testing Ensure no micro crack monitoring before final inspection, Continuousline monitoring and video/photorecord for each cell and panel.

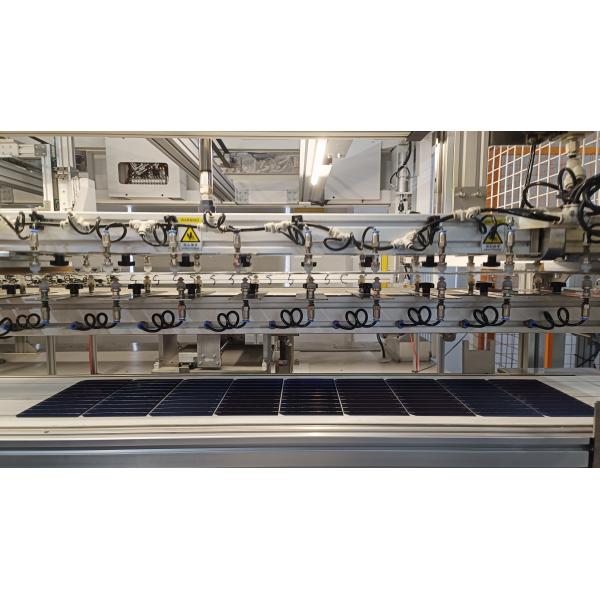

IV Testing
After Lamination,Conduct Electrical Performance Testing Simulate the real sunlight and testthe voltage and current of each solar panel to ensure the efficiency of each solar panel.

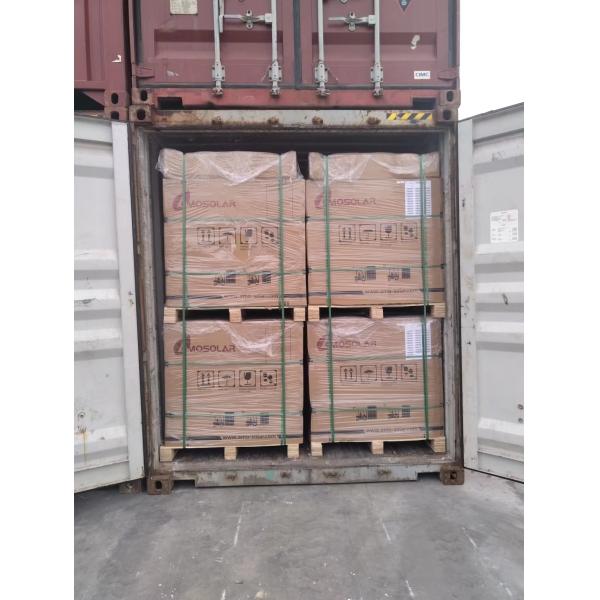

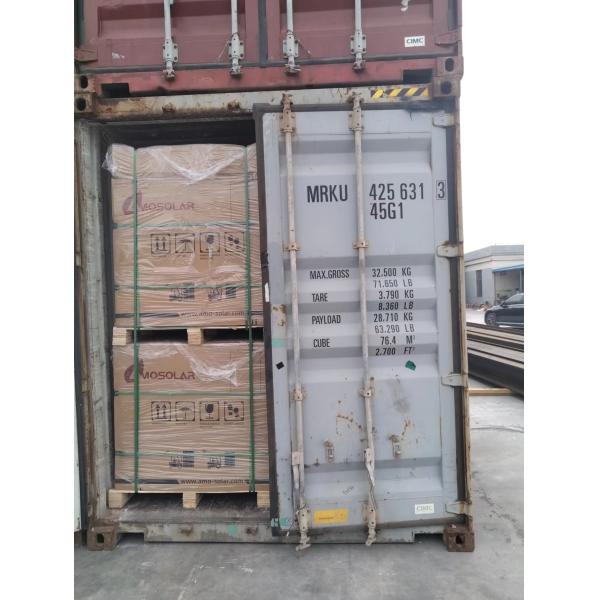

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Amosolar Solar 400w Shingled Solar Panels Connector MC4 Compatible Connector For Your
Amosolar Solar 400w Shingled Solar Panels Connector MC4 Compatible Connector For Your
Amosolar Solar 400w Shingled Solar Panels Connector MC4 Compatible Connector For Your
Amosolar Solar 400w Shingled Solar Panels Connector MC4 Compatible Connector For Your

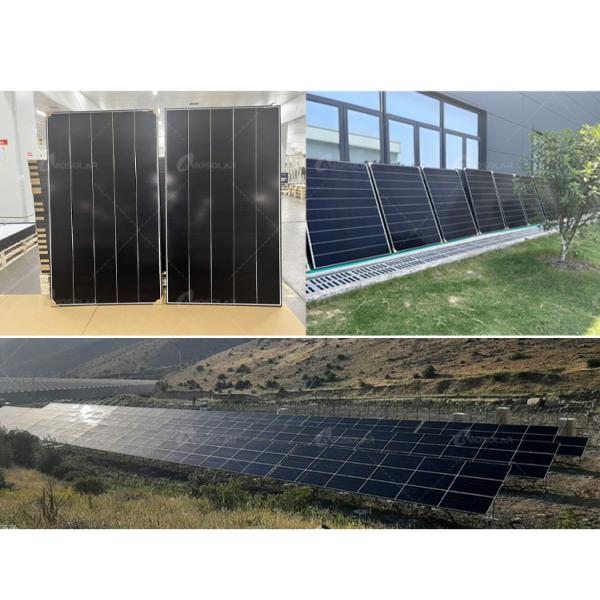

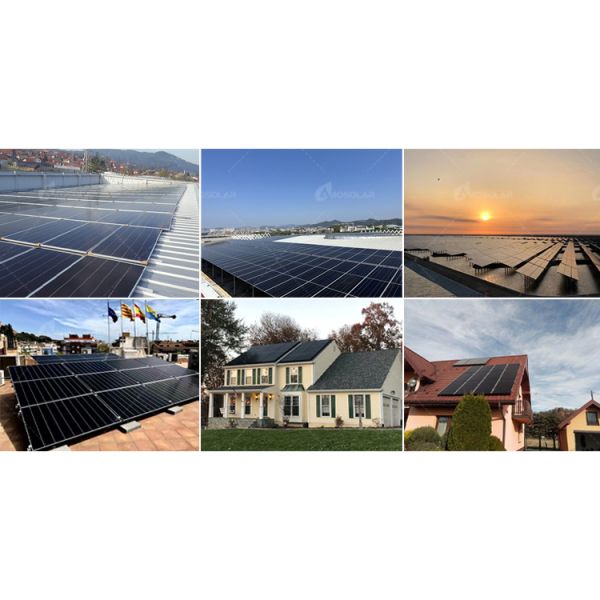

Project
Amosolar Solar 400w Shingled Solar Panels Connector MC4 Compatible Connector For Your
Amosolar Solar 400w Shingled Solar Panels Connector MC4 Compatible Connector For Your
OEM Service
Amosolar Solar 400w Shingled Solar Panels Connector MC4 Compatible Connector For Your
