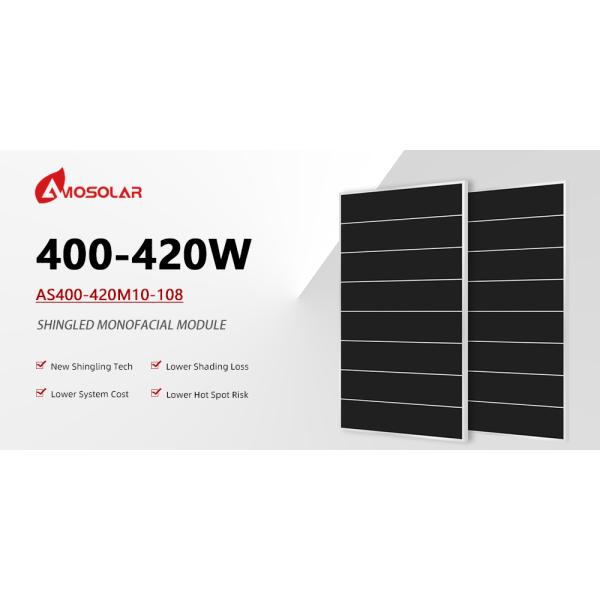

Anodized Aluminium Alloy Frame 410W Shingled Solar Panels Pv Module for Solar Roof Panel
Anodized Aluminium Alloy Frame 410W Shingled Solar Panels Pv Module for Solar Roof Panel
Anodized Aluminium Alloy Frame 410W Shingled Solar Panels Pv Module for Solar Roof Panel
Anodized Aluminium Alloy Frame 410W Shingled Solar Panels Pv Module for Solar Roof Panel
Anodized Aluminium Alloy Frame 410W Shingled Solar Panels Pv Module for Solar Roof Panel
Anodized Aluminium Alloy Frame 410W Shingled Solar Panels Pv Module for Solar Roof Panel
Anodized Aluminium Alloy Frame 410W Shingled Solar Panels Pv Module for Solar Roof Panel
Anodized Aluminium Alloy Frame 410W Shingled Solar Panels Pv Module for Solar Roof Panel
Anodized Aluminium Alloy Frame 410W Shingled Solar Panels Pv Module for Solar Roof Panel
Anodized Aluminium Alloy Frame 410W Shingled Solar Panels Pv Module for Solar Roof Panel
Anodized Aluminium Alloy Frame 410W Shingled Solar Panels Pv Module for Solar Roof Panel
Anodized Aluminium Alloy Frame 410W Shingled Solar Panels Pv Module for Solar Roof Panel
Specifications
Brand Name :
Amosolar
Model Number :
AS400-420M10-108
Place of Origin :
Anhui, China
Cell size :
182mmx182mm
Type :
PERC, Half Cell, All Black, MWT, HJT, N-TYPE, TOPCON
Panel Dimensions :
1723*1134*35mm
Panel Efficiency :
21.5%
Warranty :
25YEARS
Number of Cells: :
108 Cells (6x18)
Front Side Glass: :
High transparency solar glass 3.2mm
Junction Box: :
IP68 Rated
Frame: :
Anodized Aluminium Alloy
Wind/Snow Load: :
2400Pa/5400Pa
Weight: :
20.9kg
Connector: :
MC4 Compatible Connector
Cable: :
4mm2
Keyword: :
Half Cell Mono Solar Panel
Packaging: :
31pcs/pallet, 806pcs/40HQ container
Certificate :
CE/TUV/INMETRO
Packaging Details :
Cartons and pallets and wooden box
Europe Popular Selling Solar Panel 400W 405W All Black Mono 380w 390watt 400w 410w Full Black Solar Panels
Port :
Shanghai / Ningbo /Guangzhou / Shenzhen
MOQ :
1000 watts
Price :
$0.12/watts 1000-99999 watts
Description
Solar Panel Description
Anodized Aluminium Alloy Frame 410W Shingled Solar Panels Pv Module for Solar Roof Panel
Anodized Aluminium Alloy Frame 410W Shingled Solar Panels Pv Module for Solar Roof Panel
Certifications
Anodized Aluminium Alloy Frame 410W Shingled Solar Panels Pv Module for Solar Roof Panel
Mechanical Data
Model
AS400M10-108
AS405M10-108
AS410M10-108
AS415M10-108
AS420M10-108
Rated Maximum Power at STC
400W
405W
410W
415W
420W
Open Circuit Voltage (Voc)
43.50
43.58
43.61
43.66
43.68
Maximum Power Voltage (Vmp)
37.78
37.82
38.31
38.32
38.44
Short Circuit Current (Isc)
11.33
11.43
11.44
11.53
11.54
Maximum Power Current (Imp)
10.59
10.72
10.71
10.83
10.93
PV Module Efficiency (%)
20.5
20.7
21.0
21.3
21.5
Standard
Inradiance 1000w/m² ， Cell Temperature 25 ℃ ， Air Mass 1.5
Anodized Aluminium Alloy Frame 410W Shingled Solar Panels Pv Module for Solar Roof Panel
Anodized Aluminium Alloy Frame 410W Shingled Solar Panels Pv Module for Solar Roof Panel
Anodized Aluminium Alloy Frame 410W Shingled Solar Panels Pv Module for Solar Roof Panel
Strict QC System
Anodized Aluminium Alloy Frame 410W Shingled Solar Panels Pv Module for Solar Roof Panel
Anodized Aluminium Alloy Frame 410W Shingled Solar Panels Pv Module for Solar Roof Panel
Anodized Aluminium Alloy Frame 410W Shingled Solar Panels Pv Module for Solar Roof Panel
Anodized Aluminium Alloy Frame 410W Shingled Solar Panels Pv Module for Solar Roof Panel
External Assessment
After Lamination,Check Each Panels
Make sure that the surface of eachsolar panel is complete, clean and correct.

EL Testing
Before and Following Lamination,Twice Testing Ensure no micro crack monitoring before final inspection, Continuousline monitoring and video/photorecord for each cell and panel.

IV Testing
After Lamination,Conduct Electrical Performance Testing Simulate the real sunlight and testthe voltage and current of each solar panel to ensure the efficiency of each solar panel.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Anodized Aluminium Alloy Frame 410W Shingled Solar Panels Pv Module for Solar Roof Panel
Anodized Aluminium Alloy Frame 410W Shingled Solar Panels Pv Module for Solar Roof Panel
Anodized Aluminium Alloy Frame 410W Shingled Solar Panels Pv Module for Solar Roof Panel
Anodized Aluminium Alloy Frame 410W Shingled Solar Panels Pv Module for Solar Roof Panel
Project
Anodized Aluminium Alloy Frame 410W Shingled Solar Panels Pv Module for Solar Roof Panel
Anodized Aluminium Alloy Frame 410W Shingled Solar Panels Pv Module for Solar Roof Panel
OEM Service
Anodized Aluminium Alloy Frame 410W Shingled Solar Panels Pv Module for Solar Roof Panel
