Specifications
Brand Name :
Amosolar
Model Number :
AMO515-540M10-132
Place of Origin :
China
Cell size :
182mmx182mm
Type :
Half Cell, N-TYPE, TOPCON
Panel Dimensions :
2094*1134*35mm
Panel Efficiency :
22.74%
Warranty :
30Years
Solar cell :
Mono 182*182mm
Cell Type :
N-type Mono-crystalline
Application :
Solar Power System
Junction Box :
IP68
Frame :
Anodized Aluminium Alloy
No. of cells :
132 (6*22) Cells
Max. Power :
540Watt
Weight :
24.5kg
OEM Order :
Acceptable
MOQ :
31 pieces
Price :
$58.00/pieces 31-203 pieces
Description
Company Profile

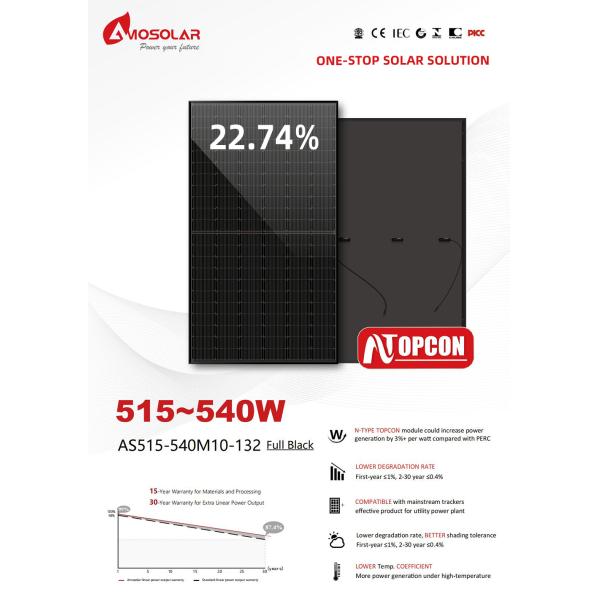

A Grade Solar Panels 182mm Mono Solar PV Modules for Home Electricity N-TYPE 515W 540W
Maximum Power(Pmax)
515w
520w
525w
530w
535w
540W
Open-circuit Voltage (Voc)
48.22
48.34
48.46
48.58
48.70
48.82
Maximum Power Voltage(Vmp)
39.30
39.50
39.70
39.90
40.10
40.30
Short-circuit Current (Isc)
13.57
13.63
13.69
13.75
13.81
13.87
Maximum Power Current (Imp)
13.11
13.17
13.23
13.29
13.35
13.41
Solar Panel Efficiency
21.69%
21.90%
22.11%
22.32%
22.53%
22.74%
Junction Box
IP68
Frame
Anodized Aluminium Alloy
Weight
24.5kg
Power
515w-540w
Cell Type
N-type Mono-crystalline
Solar cell
Mono 182*182mm
OEM Order
Acceptable
Number of Cells
132 (6 * 22)
A Grade Solar Panels 182mm Mono Solar PV Modules for Home Electricity N-TYPE 515W 540W
Amosolar solar panel have full line of international authoritative certificates such as CE, TUV, IEC, INMETRO, etc.

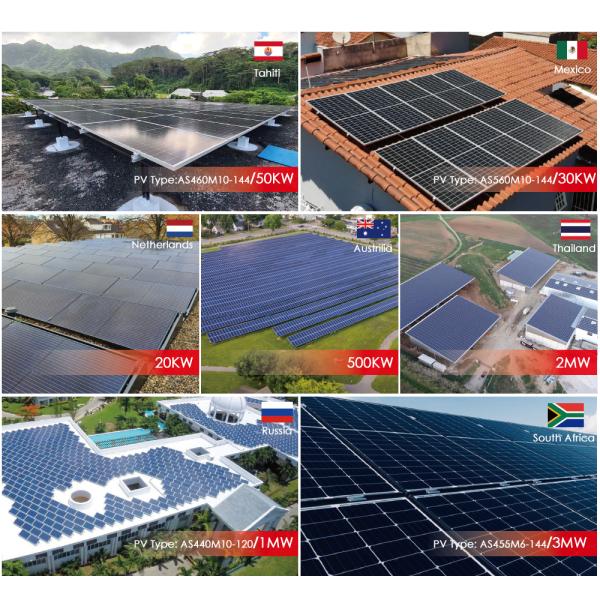

90+ countries where Amosolar PV modules have contributed to the zero-emission goal
A Grade Solar Panels 182mm Mono Solar PV Modules for Home Electricity N-TYPE 515W 540W
A Grade Solar Panels 182mm Mono Solar PV Modules for Home Electricity N-TYPE 515W 540W

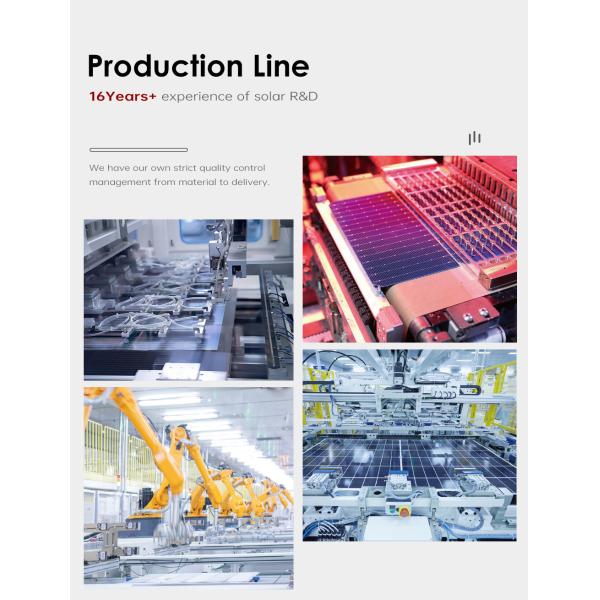

SMARTER MANUFACTURING

Utilizingilizing fully automated manufacturing facilities
Advanced quality control system
Self-developed fully transparent quality management system.

ADVANCED TECHNOLOGY

Automated manufacturing facilities
Advanced quality control system
Self-developed fully transparent quality management system
A Grade Solar Panels 182mm Mono Solar PV Modules for Home Electricity N-TYPE 515W 540W
Quality Control

External Assessment
After Lamination,Check Each Panels
Make sure that the surface of each solar panel is complete, clean and correct.

EL Testing
Before and Following Lamination,Twice Testing Ensure no micro crack monitoring before final inspection, Continuous line monitoring and video/photo record for each cell and panel.

IV Testing
After Lamination,Conduct Electrical Performance Testing Simulate the real sunlight and test the voltage and current of each solar panel to ensure the efficiency of each solar panel.
A Grade Solar Panels 182mm Mono Solar PV Modules for Home Electricity N-TYPE 515W 540W
Model
ASXXXM10-108
ASXXX310-120
ASXXXM10-120
ASXXXM10-132
ASXXXM10-132
ASXXXM10-144
ASXXXM10-156

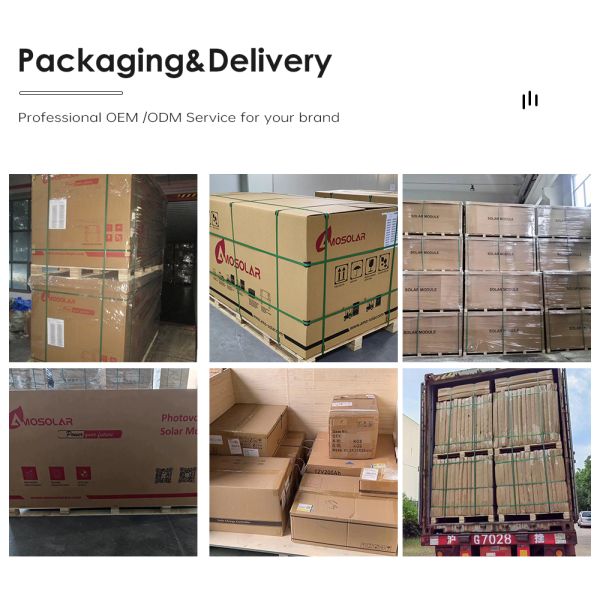

Modules per pallet
31pcs
36pcs
31pcs
36pcs
31pcs
36pcs
31pcs
36pcs
31pcs
Modules per 40'HQ
806pcs
936pcs
744pcs
864pcs
682pcs
792pcs
720 pcs
620pcs
496pcs
A Grade Solar Panels 182mm Mono Solar PV Modules for Home Electricity N-TYPE 515W 540W
A Grade Solar Panels 182mm Mono Solar PV Modules for Home Electricity N-TYPE 515W 540W
A Grade Solar Panels 182mm Mono Solar PV Modules for Home Electricity N-TYPE 515W 540W
