INMETRO Certified 500w Hybrid Solar Panel for Off Grid Solar System by Amosolar Chinese
INMETRO Certified 500w Hybrid Solar Panel for Off Grid Solar System by Amosolar Chinese
INMETRO Certified 500w Hybrid Solar Panel for Off Grid Solar System by Amosolar Chinese
INMETRO Certified 500w Hybrid Solar Panel for Off Grid Solar System by Amosolar Chinese
INMETRO Certified 500w Hybrid Solar Panel for Off Grid Solar System by Amosolar Chinese
INMETRO Certified 500w Hybrid Solar Panel for Off Grid Solar System by Amosolar Chinese
INMETRO Certified 500w Hybrid Solar Panel for Off Grid Solar System by Amosolar Chinese
INMETRO Certified 500w Hybrid Solar Panel for Off Grid Solar System by Amosolar Chinese
INMETRO Certified 500w Hybrid Solar Panel for Off Grid Solar System by Amosolar Chinese
INMETRO Certified 500w Hybrid Solar Panel for Off Grid Solar System by Amosolar Chinese
INMETRO Certified 500w Hybrid Solar Panel for Off Grid Solar System by Amosolar Chinese
INMETRO Certified 500w Hybrid Solar Panel for Off Grid Solar System by Amosolar Chinese

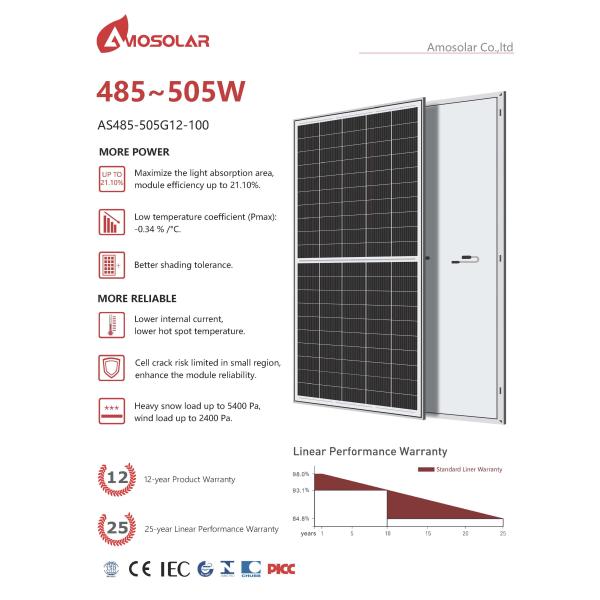

Specifications
Model Number :
AS485-505G12-100
Place of Origin :
Anhui, China
Cell size :
210mmx210mm
Type :
PERC, Half Cell, Bifacial, Double-glass
Panel Dimensions :
2185*1098*35mm
Panel Efficiency :
20.10%
Warranty :
25 Years, 25 Years
Application :
Solar Power System
Product name :
solar PV module
Cell Type :
Mono Solar Cell
Certificate :
CE, TUV, INMETRO,
Frame :
Anodized Aluminium Alloy
Junction Box :
IP68 Rated
Keyword :
PV Mudule
Number of Cells :
100 cells
Weight :
26.5KG
MOQ :
1000 watts
Price :
$0.13/watts 1000-9999 watts
Description
INMETRO Certified 500w Hybrid Solar Panel for Off Grid Solar System by Amosolar Chinese
Mechanical Data
ELECTRICAL PARAMETERS
ELECTRICAL PARAMETERS
Rated Maximum Power at STC
485W
490W
495W
500W
505W
Open Circuit Voltage (Voc)
33.90
34.10
34.30
34.50
34.70
Maximum Power Voltage (Vmp)
28.20
28.40
28.60
28.80
29.00
Short Circuit Current (Isc)
18.31
18.39
18.47
18.55
18.63
Maximum Power Current (Imp)
17.19
17.25
17.31
17.36
17.42
PV Module Efficiency (%)
20.30
20.50
20.70
20.90
20.10
STC: Irradiance 1000W/m2, Cell Temperature 25°C, Air Mass AM1.5.
*Measuring Tolerance: ±3%.
STC: Irradiance 1000W/m2, Cell Temperature 25°C, Air Mass AM1.5.
*Measuring Tolerance: ±3%.
Layout
100(5 × 20 ）
Junction Box
Split junction box, IP67, 3 diodes
Weight
26.5KG
Cable Length
300mm (+) / 300mm（-)
Cable Size
4mm²（IEC)
PV Size
2185×1098×35mm
Packaging
31 pcs / pallet
620 pcs / 40HQ container
Auto Production Line
INMETRO Certified 500w Hybrid Solar Panel for Off Grid Solar System by Amosolar Chinese
INMETRO Certified 500w Hybrid Solar Panel for Off Grid Solar System by Amosolar Chinese
INMETRO Certified 500w Hybrid Solar Panel for Off Grid Solar System by Amosolar Chinese
SMARTER MANUFACTURING

Utilizingilizing fully automated manufacturing facilities
Advanced quality control system
Self-developed fully transparent quality management system.

ADVANCED TECHNOLOGY

Automated manufacturing facilities
Advanced quality control system
Self-developed fully transparent quality management system
Strict QC System
INMETRO Certified 500w Hybrid Solar Panel for Off Grid Solar System by Amosolar Chinese
INMETRO Certified 500w Hybrid Solar Panel for Off Grid Solar System by Amosolar Chinese
INMETRO Certified 500w Hybrid Solar Panel for Off Grid Solar System by Amosolar Chinese
INMETRO Certified 500w Hybrid Solar Panel for Off Grid Solar System by Amosolar Chinese
External Assessment
After Lamination,Check Each Panels
Make sure that the surface of eachsolar panel is complete, clean and correct.

EL Testing
Before and Following Lamination,Twice Testing Ensure no micro crack monitoring before final inspection, Continuousline monitoring
and video/photorecord for each cell and panel.

IV Testing
After Lamination,Conduct Electrical Performance Testing Simulate the real sunlight and testthe voltage and current of each solar panel to ensure the efficiency of each solar panel.
Certifications
INMETRO Certified 500w Hybrid Solar Panel for Off Grid Solar System by Amosolar Chinese

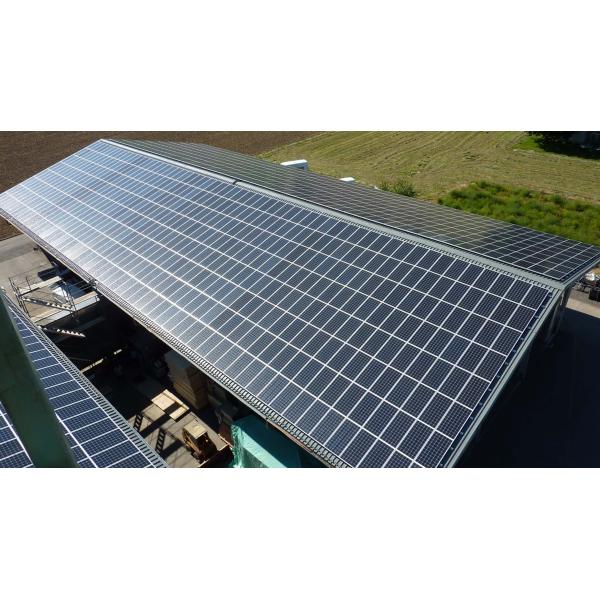

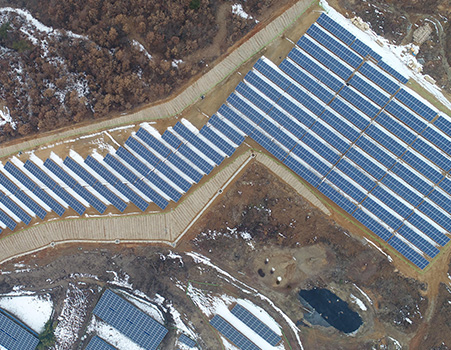

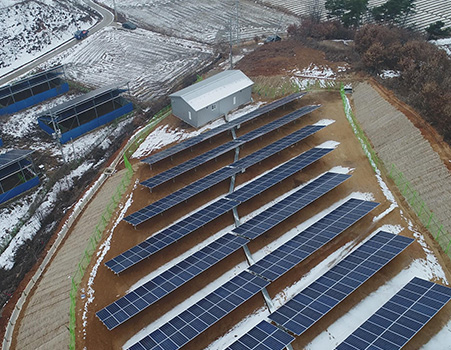

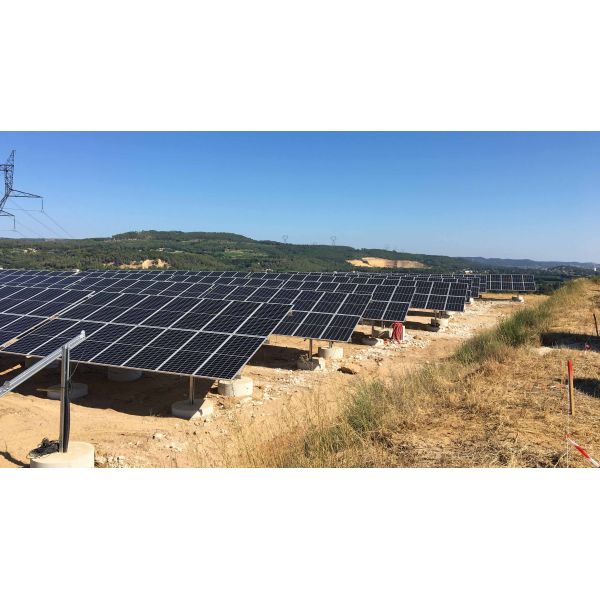

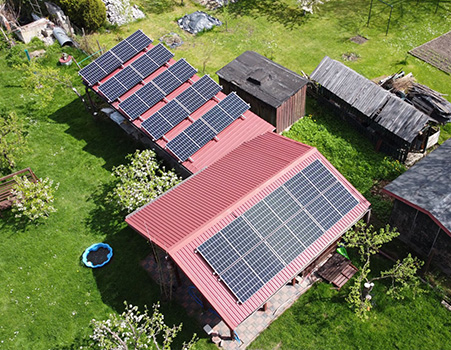

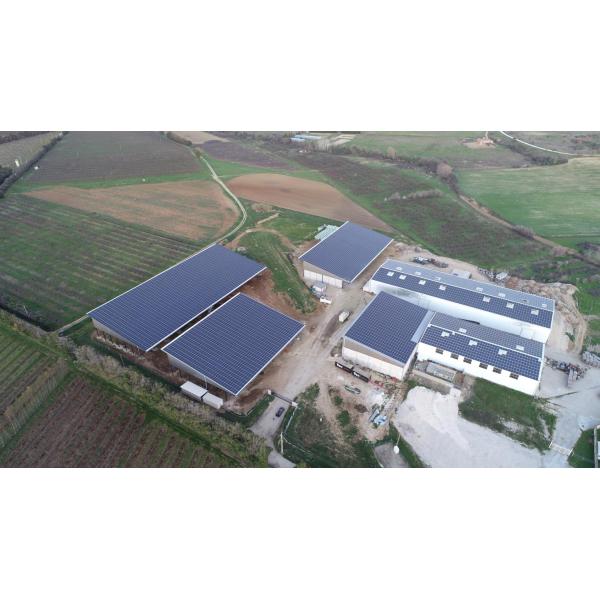

Project
INMETRO Certified 500w Hybrid Solar Panel for Off Grid Solar System by Amosolar Chinese
INMETRO Certified 500w Hybrid Solar Panel for Off Grid Solar System by Amosolar Chinese
INMETRO Certified 500w Hybrid Solar Panel for Off Grid Solar System by Amosolar Chinese
INMETRO Certified 500w Hybrid Solar Panel for Off Grid Solar System by Amosolar Chinese
INMETRO Certified 500w Hybrid Solar Panel for Off Grid Solar System by Amosolar Chinese
INMETRO Certified 500w Hybrid Solar Panel for Off Grid Solar System by Amosolar Chinese
