Specifications
Brand Name :
Amosolar
Model Number :
AMO555-580G12-110
Place of Origin :
China
Cell size :
210mmx210mm
Type :
Half Cell, N-TYPE, TOPCON
Panel Dimensions :
2384*1096*35mm
Panel Efficiency :
22.20%
Warranty :
30Years
Solar cell :
Mono 210*210mm
Cell Type :
N-type Mono-crystalline
Application :
Solar Power System
Junction Box :
IP68
Frame :
Anodized Aluminium Alloy
No. of cells :
110 (5*22) Cells
Max. Power :
580Watt
Weight :
28.6kg
OEM Order :
Acceptable
MOQ :
31 pieces
Price :
$87.00/pieces 31-619 pieces
Description
Company Profile
210mm N-type Mono-crystalline Solar Panels 560W 570W 580W for Solar Power System
Maximum Power(Pmax)
555w
560w
565w
570w
575w
580w
Open-circuit Voltage (Voc)
38.6
38.7
38.8
38.9
39.0
39.1
Maximum Power Voltage(Vmp)
32.0
32.2
32.4
32.6
32.8
33.0
Short-circuit Current (Isc)
18.30
18.35
18.40
18.45
18.50
18.55
Maximum Power Current (Imp)
17.35
17.40
17.45
17.50
17.55
17.60
Solar Panel Efficiency
21.24%
21.43%
21.62%
21.82%
22.01%
22.20%
Junction Box
IP68
Frame
Anodized Aluminium Alloy
Weight
28.6kg
Power
555w-580w
Cell Type
N-type Mono-crystalline
Solar cell
Mono 210*210mm
OEM Order
Acceptable
Number of Cells
110 (5 * 22)
210mm N-type Mono-crystalline Solar Panels 560W 570W 580W for Solar Power System
Amosolar solar panel have full line of international authoritative certificates such as CE, TUV, IEC, INMETRO, etc.
90+ countries where Amosolar PV modules have contributed to the zero-emission goal
210mm N-type Mono-crystalline Solar Panels 560W 570W 580W for Solar Power System
210mm N-type Mono-crystalline Solar Panels 560W 570W 580W for Solar Power System
210mm N-type Mono-crystalline Solar Panels 560W 570W 580W for Solar Power System
210mm N-type Mono-crystalline Solar Panels 560W 570W 580W for Solar Power System

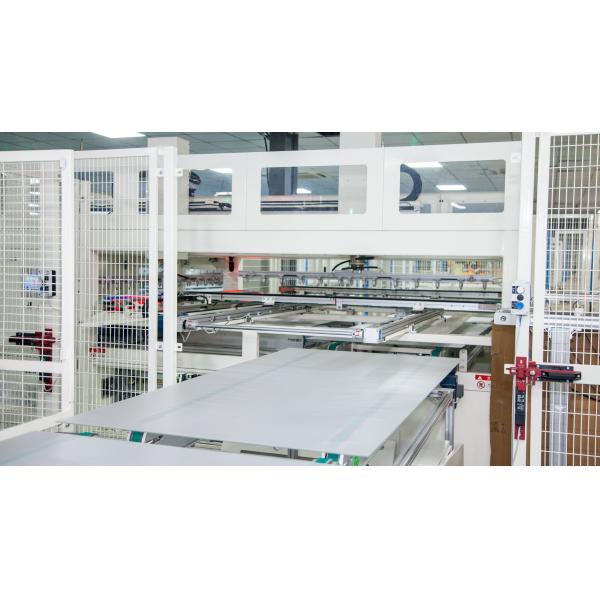

SMARTER MANUFACTURING

Utilizingilizing fully automated manufacturing facilities
Advanced quality control system
Self-developed fully transparent quality management system.

ADVANCED TECHNOLOGY

Automated manufacturing facilities
Advanced quality control system
Self-developed fully transparent quality management system
210mm N-type Mono-crystalline Solar Panels 560W 570W 580W for Solar Power System
210mm N-type Mono-crystalline Solar Panels 560W 570W 580W for Solar Power System
210mm N-type Mono-crystalline Solar Panels 560W 570W 580W for Solar Power System
Quality Control

External Assessment
After Lamination,Check Each Panels
Make sure that the surface of each solar panel is complete, clean and correct.

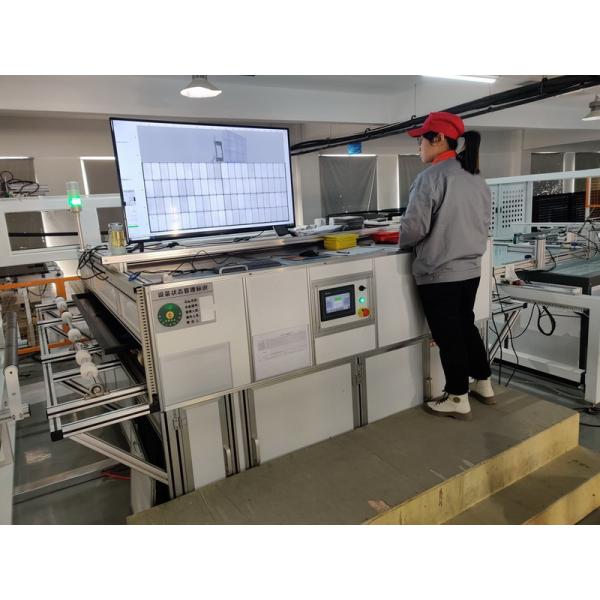

EL Testing
Before and Following Lamination,Twice Testing Ensure no micro crack monitoring before final inspection, Continuous line monitoring and video/photo record for each cell and panel.

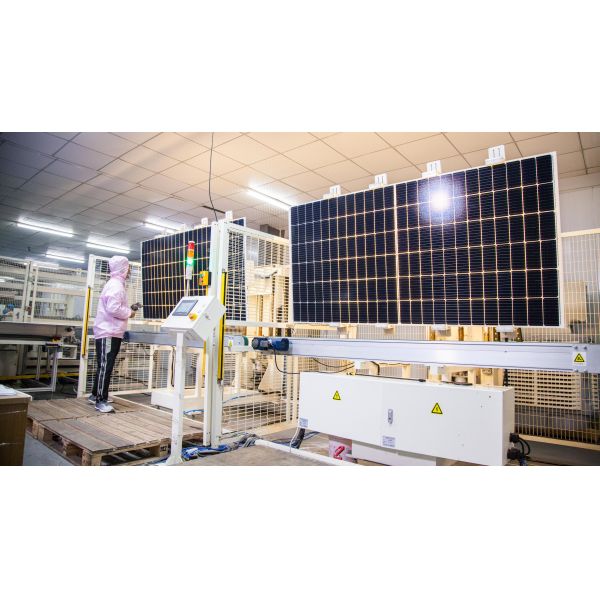

IV Testing
After Lamination,Conduct Electrical Performance Testing Simulate the real sunlight and test the voltage and current of each solar panel to ensure the efficiency of each solar panel.
210mm N-type Mono-crystalline Solar Panels 560W 570W 580W for Solar Power System
Model
ASXXXG12-110
ASXXXG12-120
ASXXXG12-132
Modules per pallet
31pcs
31pcs
31pcs
Modules per 40'HQ
620pcs
558pcs
558pcs
210mm N-type Mono-crystalline Solar Panels 560W 570W 580W for Solar Power System
210mm N-type Mono-crystalline Solar Panels 560W 570W 580W for Solar Power System
210mm N-type Mono-crystalline Solar Panels 560W 570W 580W for Solar Power System
