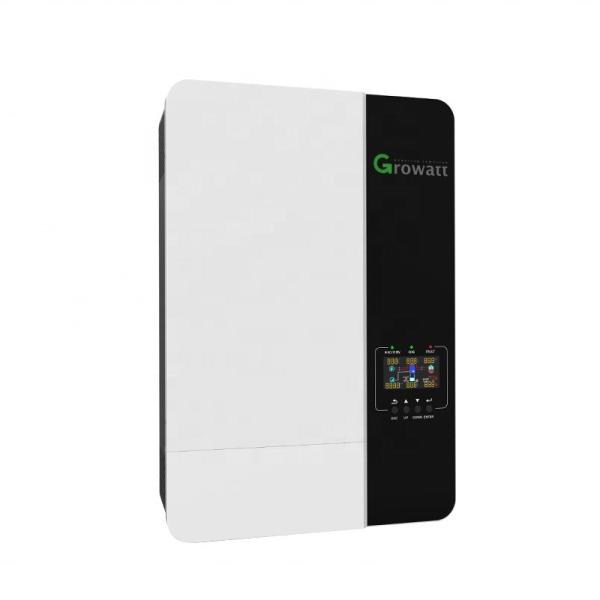

Growatt SPF 5000ES 48V 3500W Solar Panel Inverter 5000W 230V MPPT Pure Sine Wave Inverter
Growatt SPF 5000ES 48V 3500W Solar Panel Inverter 5000W 230V MPPT Pure Sine Wave Inverter
Growatt SPF 5000ES 48V 3500W Solar Panel Inverter 5000W 230V MPPT Pure Sine Wave Inverter
Growatt SPF 5000ES 48V 3500W Solar Panel Inverter 5000W 230V MPPT Pure Sine Wave Inverter
Growatt SPF 5000ES 48V 3500W Solar Panel Inverter 5000W 230V MPPT Pure Sine Wave Inverter
Growatt SPF 5000ES 48V 3500W Solar Panel Inverter 5000W 230V MPPT Pure Sine Wave Inverter
Growatt SPF 5000ES 48V 3500W Solar Panel Inverter 5000W 230V MPPT Pure Sine Wave Inverter
Growatt SPF 5000ES 48V 3500W Solar Panel Inverter 5000W 230V MPPT Pure Sine Wave Inverter
Growatt SPF 5000ES 48V 3500W Solar Panel Inverter 5000W 230V MPPT Pure Sine Wave Inverter
Growatt SPF 5000ES 48V 3500W Solar Panel Inverter 5000W 230V MPPT Pure Sine Wave Inverter
Growatt SPF 5000ES 48V 3500W Solar Panel Inverter 5000W 230V MPPT Pure Sine Wave Inverter
Growatt SPF 5000ES 48V 3500W Solar Panel Inverter 5000W 230V MPPT Pure Sine Wave Inverter
Specifications
Place of Origin :
China
Brand Name :
Growatt
Model Number :
SPF3500-5000ES
Input Voltage :
220/230Vac
Output Voltage :
230Vac
Output Current :
80A/100A
Output Frequency :
50Hz/ 60Hz
Output Type :
Triple, Three Phase
Size :
330mm*485mm*135mm
Type :
DC/AC Inverters
Inverter Efficiency :
95%
Certificate :
CE
Warranty :
2 years, 2 Years
Weight :
11.5kg/12kg
Product name :
Off-grid Solar Power Inverter
Keyword :
Solar Inverter 5KW
Efficiency :
90%-95%
Application :
Solar Power System Home
Price :
$425.00/pieces 1-99 pieces
Description
Growatt SPF 5000ES 48V 3500W Solar Panel Inverter 5000W 230V MPPT Pure Sine Wave Inverter
Growatt SPF 5000ES 48V 3500W Solar Panel Inverter 5000W 230V MPPT Pure Sine Wave Inverter
Growatt SPF 5000ES 48V 3500W Solar Panel Inverter 5000W 230V MPPT Pure Sine Wave Inverter
Datasheet
SPF 3500 ES
SPF 5000 ES
Battery Voltage
48VDC
Battery Type
Lithium/Lead-acid
INVERTER OUTPUT
Rated Power
3500VA/ 3500W
5000VA/ 5000W
Parallel Capability
Yes, 6 units maximum
AC Voltage Regulation
(Battery Mode)
230VAC ± 5% @ 50/60Hz
Surge Power
7000VA
10000VA
Efficiency (Peak)
93%
Waveform
Pure sine wave
Transfer Time
10ms typical, 20ms Max
SOLAR CHARGER
Maximum PV Array Power
4500W
6000W
MPPT Range @ Operating Voltage
120VDC ~ 430VDC
Number of Independent MPP Trackers/
Strings Per MPP Tracker
1/1
Maximum PV Array Open
Circuit Voltage
450VDC
Maximum Solar Charge Current
80A
100A
AC CHARGER
Charge Current
60A
80A
AC Input Voltage
230 VAC
Selectable Voltage Range
170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
Frequency Range
50Hz/60Hz (Auto sensing)
PHYSICAL
Protection Degree
IP20
Dimension (W/H/D)
330/485/135mm
330/485/135mm
Net Weight
11.5kgs
12kgs
OPERATING ENVIRONMENT
Humidity
5% to 95% Relative Humidity(Non-condensing)
Altitude
<2000m
Operating Temperature
0°C - 55°C
Storage Temperature
-15°C - 60°C
Growatt SPF 5000ES 48V 3500W Solar Panel Inverter 5000W 230V MPPT Pure Sine Wave Inverter

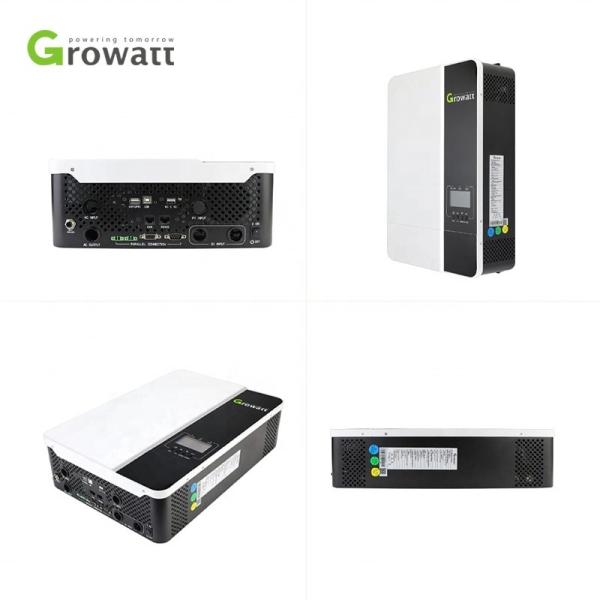

Product Description
Growatt SPF 5000ES 48V 3500W Solar Panel Inverter 5000W 230V MPPT Pure Sine Wave Inverter
Growatt SPF 5000ES 48V 3500W Solar Panel Inverter 5000W 230V MPPT Pure Sine Wave Inverter
Packaging & Delivery
Growatt SPF 5000ES 48V 3500W Solar Panel Inverter 5000W 230V MPPT Pure Sine Wave Inverter

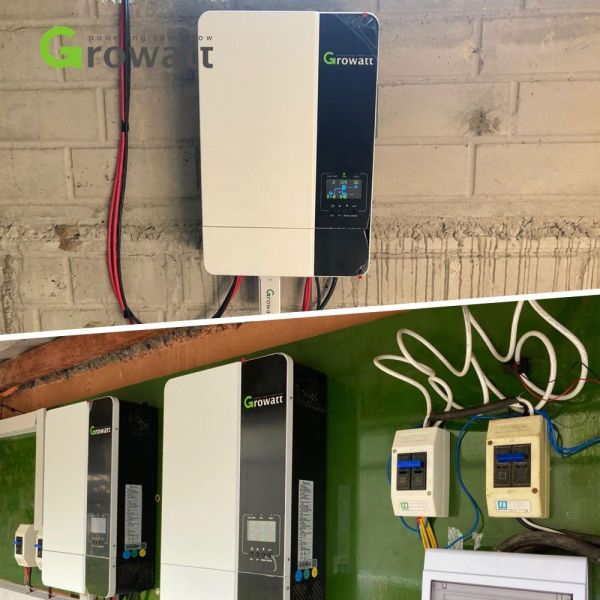

Project
Growatt SPF 5000ES 48V 3500W Solar Panel Inverter 5000W 230V MPPT Pure Sine Wave Inverter
Why Choose Us
Growatt SPF 5000ES 48V 3500W Solar Panel Inverter 5000W 230V MPPT Pure Sine Wave Inverter
