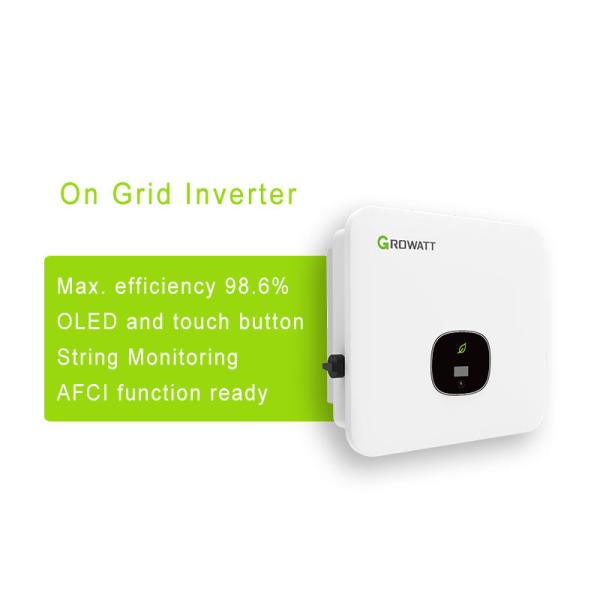

15KW Inverter MOD 10000TL3-X for Pre-sales project design by Growatt Solar Inverters
15KW Inverter MOD 10000TL3-X for Pre-sales project design by Growatt Solar Inverters
15KW Inverter MOD 10000TL3-X for Pre-sales project design by Growatt Solar Inverters
15KW Inverter MOD 10000TL3-X for Pre-sales project design by Growatt Solar Inverters
15KW Inverter MOD 10000TL3-X for Pre-sales project design by Growatt Solar Inverters
15KW Inverter MOD 10000TL3-X for Pre-sales project design by Growatt Solar Inverters
15KW Inverter MOD 10000TL3-X for Pre-sales project design by Growatt Solar Inverters
15KW Inverter MOD 10000TL3-X for Pre-sales project design by Growatt Solar Inverters
15KW Inverter MOD 10000TL3-X for Pre-sales project design by Growatt Solar Inverters
15KW Inverter MOD 10000TL3-X for Pre-sales project design by Growatt Solar Inverters
15KW Inverter MOD 10000TL3-X for Pre-sales project design by Growatt Solar Inverters
15KW Inverter MOD 10000TL3-X for Pre-sales project design by Growatt Solar Inverters
Specifications
Warranty :
5years
Free installation service :
NO
Place of Origin :
China
Brand Name :
Growatt
Model Number :
MOD 5-15KTL3-X
Application :
Home
Solar Panel Type :
Monocrystalline Silicon, Polycrystalline Silicon
Battery Type :
NONE
Controller Type :
MPPT
Mounting Type :
Ground Mounting
Load Power (W) :
20kw, 10KW
Output Voltage (V) :
220V/380V, 230V/400V
Output Frequency :
60Hz/50Hz
Work Time (h) :
24 Hours
Certificate :
CE, ROHS, TUV, IEC
Pre-sales project design :
Y
Place of Origin: :
Fujian, China
Model Number: :
MOD 5-15KTL3-X
Size: :
425/387/178MM
Inverter Efficiency: :
98.2%
Warranty: :
5 years
Weight: :
17 kg
Inverter type: :
On-grid Inverter
Output Type: :
Three-phase
MPPT Range: :
140VDC ~ 1000VDC
Brand Name: :
Growatt
Price :
$683.00/pieces 1-9 pieces
Description
Product Description
15KW Inverter MOD 10000TL3-X for Pre-sales project design by Growatt Solar Inverters
15KW Inverter MOD 10000TL3-X for Pre-sales project design by Growatt Solar Inverters
Specification
MOD 10~15KTL3-X
Specification
MOD
10KTL3-X
MOD
11KTL3-X
MOD
12KTL3-X
MOD
13KTL3-X
MOD
15KTL3-X
Input data (DC)
Max. recommended PV power
(for module STC)
15000W
16500W
18000W
19500W
19500W
Max DC voltage
1100V
Start voltage
200V
Nominal voltage
580V
MPPT voltage range
140V-1000V
No. of MPP trackers
2
No. of PV strings per MPP tracker
1
2/1
Max. input current per MPP tracker
13A
26/13
Max. input current per MPP tracker
16A
32/16
Output data(AC)
AC nominal power
10000W
11000W
12000W
13000W
15000W
Max. AC apparent power
11000VA*
12100VA
16500VA
16500VA
16500VA
Nominal AC voltage（range*）
220V/380V, 230V/400V (340-440V)
AC grid frequency（range*）
50/60 Hz (45-55Hz/55-65 Hz)
Max. output current
16.7A
18.3A
20A
21.7A
25A
Adjustable power factor
THDI
<3%
AC grid connection type
3W+N+PE
Efficiency
MAX. efficiency
98.6%
European efficiency
98.1%
98.2%
MPPT efficiency
99.9%
Protection devices
DC reverse polarity protection
Yes
DC Switch
Yes
AC/DC surge protection
Type II/Type II
Insulation resistance monitoring
Yes
AC short-circuit protection
Yes
Ground fault monitoring
Yes
Grid monitoring
Yes
Anti-islanding protection
Yes
Residual-current monitoring unit
Yes
String fault monitoring
Yes
AFCI protection
Optional
General data
Dimensions (W / H / D)
425/387/178mm
Weight
14kg
16kg
Operating temperature range
–25°C ... +60°C
Nighttime power consumption
<1W
Topology
Transformerless
Cooling
Natural convection
Protection degree
IP66
Relative humidity
0~100%
Altitude
4000m
DC connection
H4 / MC4 (Optional )
AC connection
Connector
DisplayVV
OLED+LED/WIFI+APP
Interfaces: USB/RS485/WIFI
/GPRS//LAN/RF
yes/yes/Optional/Optional/Optional/Optional
Warranty: 5 / 10 years
Yes/Optional

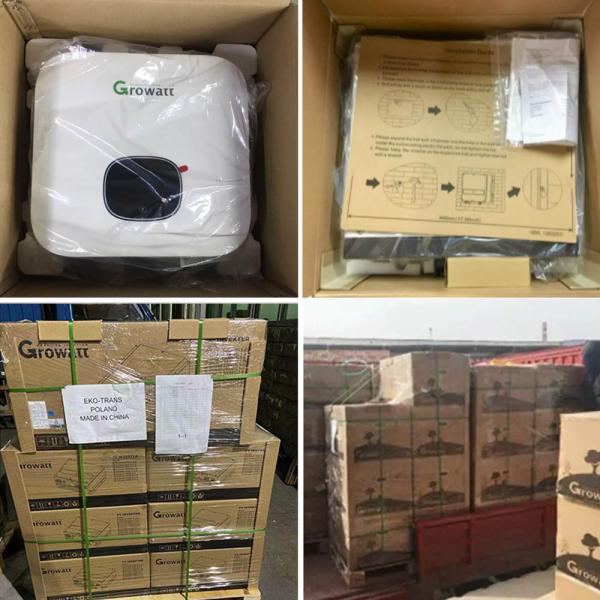

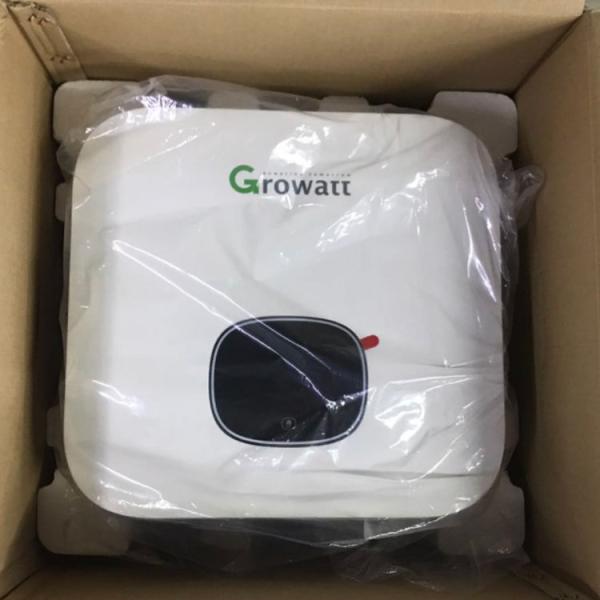

Packing & Delivery
15KW Inverter MOD 10000TL3-X for Pre-sales project design by Growatt Solar Inverters
15KW Inverter MOD 10000TL3-X for Pre-sales project design by Growatt Solar Inverters
Cartons and pallets and wooden box
Company Profile
15KW Inverter MOD 10000TL3-X for Pre-sales project design by Growatt Solar Inverters
15KW Inverter MOD 10000TL3-X for Pre-sales project design by Growatt Solar Inverters
15KW Inverter MOD 10000TL3-X for Pre-sales project design by Growatt Solar Inverters
******
FAQ
1. who are we?
We are based in Anhui, China, start from 2022,sell to Eastern Europe(20.00%),North America(18.00%),South America(10.00%),Western Europe(10.00%),Southern Europe(10.00%),Northern Europe(10.00%),Central America(10.00%),South Asia(5.00%),Domestic Market(2.00%),Mid East(1.00%),Eastern Asia(1.00%),Oceania(1.00%),Africa(1.00%),Southeast Asia(1.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Solar Panel,Battery,Solar System,Inverter Controller,Lithium battery energy storage system

4. why should you buy from us not from other suppliers?
We are a professional solar panel manufacturer,solar system product and service provider. We provides Inovative alternative energy solutions. Solar and energy storage solutions for residential & commercial applications and One-stop solutions.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
