Specifications
Warranty :
10YEARS
Free installation service :
NO
Place of Origin :
Anhui, China
Brand Name :
Amosolar
Model Number :
AS-600/800BL
Application :
Home
Solar Panel Type :
Monocrystalline Silicon
Battery Type :
NONE
Controller Type :
MPPT
Mounting Type :
Roof Mounting
Load Power (W) :
600w,800w
Output Voltage (V) :
230V/220V(180V-270V)
Output Frequency :
60Hz/50Hz
Work Time (h) :
24 Hours
Certificate :
CE, ROHS, TUV, IEC
Pre-sales project design :
Y
Peak Efficiency: :
97.1%/97.3%
Inverter: :
600W 800W micro inverter
Protection Class: :
NEMA-6 / IP-66 / IP-67
MPPT Efficiency: :
>99.5%
Overvoltage class: :
III
Noise: :
<10db
Communication: :
PLC or WiFi
System Integration: :
Integration of System and Module
Maximum input DC Current: :
18A
Startup Voltage: :
24V
MOQ :
100 sets
Price :
$400.00/sets 100-999 sets
Description
Product Description
System Integration Integration of 600W 800W 1000W PV Solar Hybrid System for Home
System Integration Integration of 600W 800W 1000W PV Solar Hybrid System for Home
Specification
Input Data (DC)
Inverter power
600W
800W
Recommended input Power(STC)
Full Black 410W (PERC) *2
Full Black 430W (N-TOPCON) *2
Full Black 460W (PERC) *2
Full Black 510W (N-TOPCON) *2
Maximum input DC Voltage
60V
Startup Voltage
24V
MPPT Voltage Range
22-55
Maximum input DC Current
18A
Output Data (AC)
Rated output Power
600w
800W
Rated output Current
2.52
3.26
Rated Output Voltage /V
220/230v，L+N+PE
Output Frequency Range
50 / 60Hz
Power Factor (Nominal/Adjustable Range)
1.0/0.8 leading…0.8 lagging
Output Current Total Harmonic Distortion
<3%
Efficiency
Peak Efficiency
97.1%
97.3%
MPPT Efficiency
>99.5%
>99.5%
Night Power Consumption /MW
<100
<100
Mechanical Data
Operating Ambient Temperature Range
'-40°C ~+65°C
Microinverter Dimensions(W*H*D)
227mm x 132mm x 50mm
Microinverter Weight
2.9kg
Cooling
Natural convection-No fans
Protection Class
NEMA-6 / IP-66 / IP-67
Overvoltage class
III
Features
Noise
＜10db
Communication
PLC or WiFi
System Integration
Integration of System and Module
Certificates
CE,EMC,RED,ROHS,EN50549,VDE-0126,VDE-4105,VDE-0124,CEI 021,UL1741,CSA22.2,CEC,AS 4777
Warranty
10 years

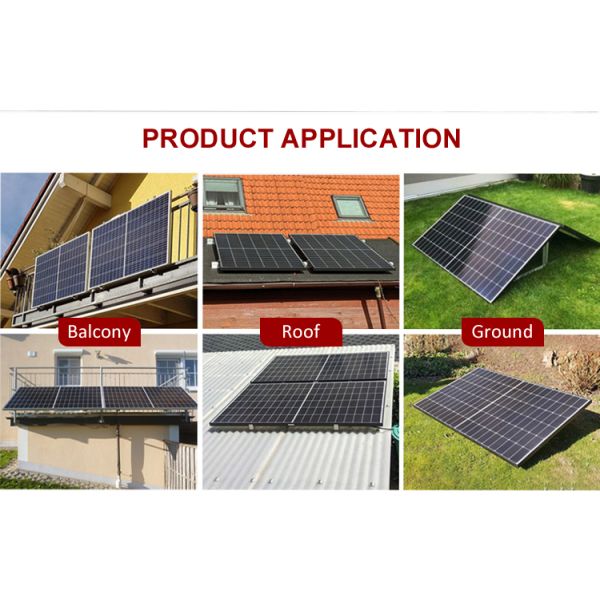

Products Application
System Integration Integration of 600W 800W 1000W PV Solar Hybrid System for Home
System Integration Integration of 600W 800W 1000W PV Solar Hybrid System for Home
System Integration Integration of 600W 800W 1000W PV Solar Hybrid System for Home
System Integration Integration of 600W 800W 1000W PV Solar Hybrid System for Home
System Integration Integration of 600W 800W 1000W PV Solar Hybrid System for Home
System Integration Integration of 600W 800W 1000W PV Solar Hybrid System for Home
System Integration Integration of 600W 800W 1000W PV Solar Hybrid System for Home
System Integration Integration of 600W 800W 1000W PV Solar Hybrid System for Home
System Integration Integration of 600W 800W 1000W PV Solar Hybrid System for Home
System Integration Integration of 600W 800W 1000W PV Solar Hybrid System for Home

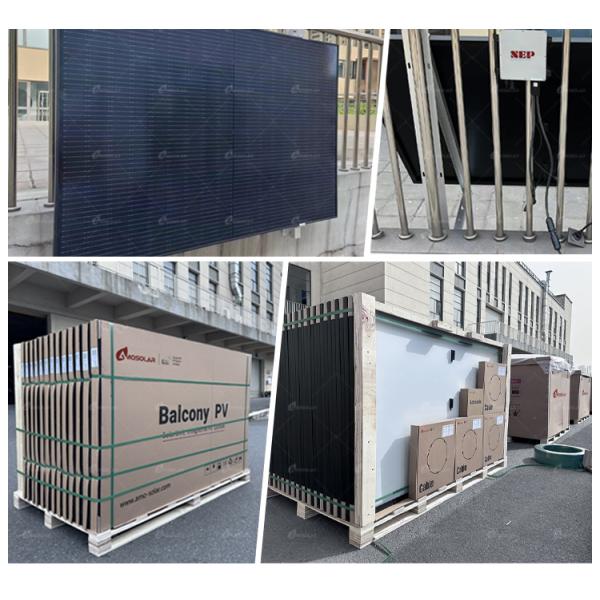

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

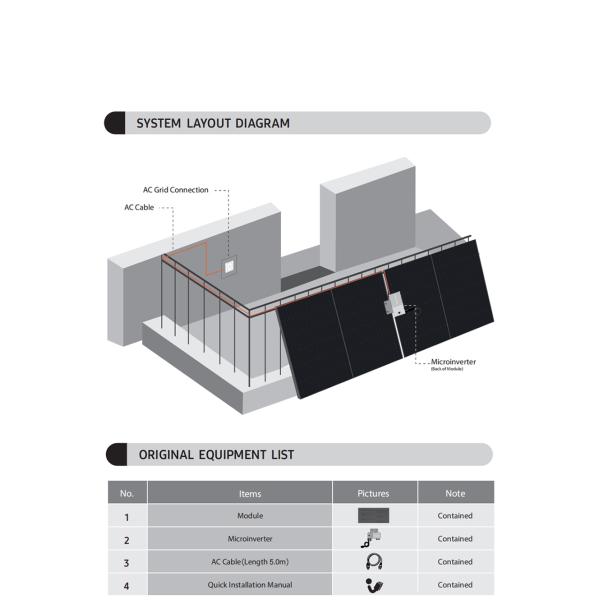

Each balcony solarsystem includes 2 PV Modules, 1 microinverter and accessories such as AC cables ECU for monitoring etc. Packing in 14 Solarsystem per Pallet, each set of Solarsystem is packaged independently in carton box, very convenient for customers to retail local.
System Integration Integration of 600W 800W 1000W PV Solar Hybrid System for Home
System Integration Integration of 600W 800W 1000W PV Solar Hybrid System for Home
