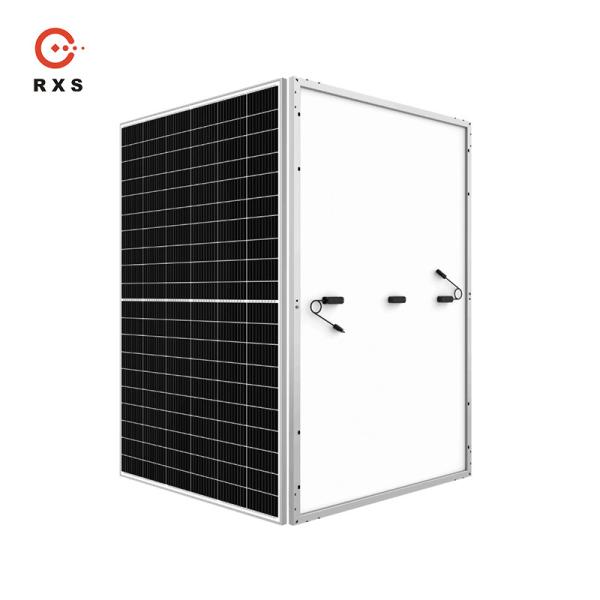

High Efficiency 550W Agricultural High Power Solar Panels Double Glass Mono Modules
High Efficiency 550W Agricultural High Power Solar Panels Double Glass Mono Modules
High Efficiency 550W Agricultural High Power Solar Panels Double Glass Mono Modules
High Efficiency 550W Agricultural High Power Solar Panels Double Glass Mono Modules
High Efficiency 550W Agricultural High Power Solar Panels Double Glass Mono Modules
High Efficiency 550W Agricultural High Power Solar Panels Double Glass Mono Modules
High Efficiency 550W Agricultural High Power Solar Panels Double Glass Mono Modules
High Efficiency 550W Agricultural High Power Solar Panels Double Glass Mono Modules
Specifications
Brand Name :
Rixin
Model Number :
DBG550
Certification :
TUV CE IEC
Place of Origin :
China
MOQ :
620pcs/HQ
Price :
Negotiations
Payment Terms :
L/C, T/T
Supply Ability :
3GW/year
Delivery Time :
7-15 working days
Packaging Details :
In Pallet or wooden case
Warranty :
25 Years
Junction box :
IP 68 rated
Connector :
MC4 Compatible Connector
Oem order :
Acceptable
Installation site :
Roof or ground solar panels,Open ground and flat roof
Module efficient(%) :
21.29
Cell Nos & array :
Mono half-cut cells 144 pcs
Cell size (mm) :
182*91
Glass thickness (mm) :
3.2
Module weight (kg) :
27kg
Module dimension (L*W*H)(mm) :
2278*1134*35mm
Packing :
31pcs/pallet
Description

High Efficiency 550W Agricultural High Power Solar Panels Double-glass Mono Modules

High Efficiency 550W Agricultural High Power Solar Panels Double Glass Mono ModulesHigh Efficiency 550W Agricultural High Power Solar Panels Double Glass Mono ModulesHigh Efficiency 550W Agricultural High Power Solar Panels Double Glass Mono Modules

High Efficiency 550W Agricultural High Power Solar Panels Double Glass Mono ModulesHigh Efficiency 550W Agricultural High Power Solar Panels Double Glass Mono Modules

Mono Solar Module DBG550

Model DBG530 DBG535 DBG540 DBG545 DBG550
Maximum power(Pm/Wp) 530 535 540 545 550
Maximum power voltage(Vmp/V) 41.57 41.80 42.03 42.25 42.48
Maximum power current(lmp/V) 12.75 12.80 12.85 12.90 12.95
Open circuit voltage(Voc/V) 49.63 49.76 49.89 50.10 50.32
Short circuit current(Isc/A) 13.50 13.55 13.6 13.65 13.7
Module efficient(%) 20.51 20.71 20.90 21.09 21.29

Test condition:irradiance=(1+0.1BiFi)1000W/㎡,ambient temperature=25℃,AM=1.5

Mechanical performance parameters

Cell Nos & array Mono half-cut cells 144 pcs
Cell size (mm) 182*91
Glass thickness (mm) 3.2
Frame Anodized alaminum alloy
Cable 4m㎡ negetive300mm, positive300mm
Module weight (kg) 27
Module dimension (L*W*H)(mm) 2278*1134*35mm
Packing 31pcs/pallet

Quality parameters

Module working temperature range (℃) -40~ +85
Power tolerance(W) 0~+3
Maximum system voltage(V) DC1500
System maximum protection current(A) 25
NOCT(℃) 45±2
Front/rear static loads(Pa) 2400 / 5400
Junction box/Connector Ip68,split / MC4 compatible

Temperaturecoefficient(STC)

Temperature coefficient of Voc -0.275%/℃
Temperature coefficient of Isc +0.05%/℃
Temperature coefficient of Pm -0.35%/℃
Test condition:irradiance=(1+0.1BiFi)1000W/㎡,ambient temperature=25℃,AM=1.5

Quality warranty

12-year material & workmanship warranty

25-year linear power warranty


Payment Term

T/T

 EXW

30% T/T in advance, paid the balance before shipment
FOB
CNF

30% T/T in advance, paid the balance against copy of B/L
