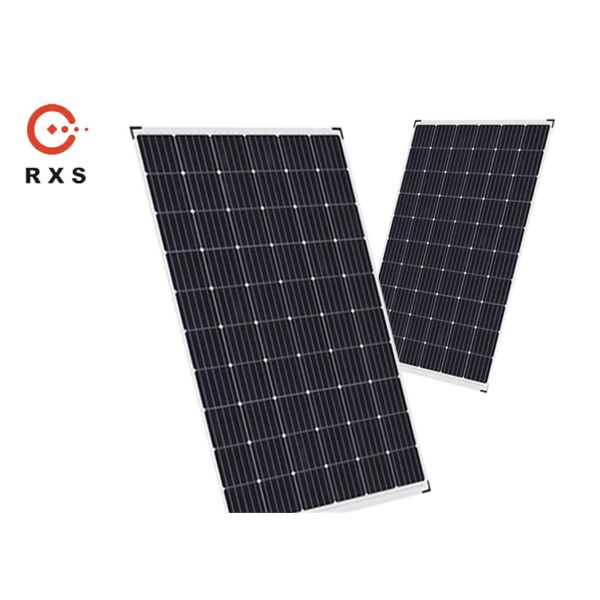

Residential Photovoltaic Standard Solar Panel 325W
Residential Photovoltaic Standard Solar Panel 325W
Residential Photovoltaic Standard Solar Panel 325W
Residential Photovoltaic Standard Solar Panel 325W
Residential Photovoltaic Standard Solar Panel 325W
Residential Photovoltaic Standard Solar Panel 325W
Specifications
Brand Name :
Rixin
Model Number :
DDP325(K)
Certification :
TUV, CE, ISO9001, ISO14001, OHSAS18000
Place of Origin :
Wuhan, China
MOQ :
840PCS/HQ
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
3MW/year
Delivery Time :
15 working days
Packaging Details :
33pcs/carton, 26cartons/40HQ, 858pcs/40HQ
Product name :
Photovoltaic Solar Panels
Module efficient(%) :
19.4
Cable :
4m㎡ negetive1000mm,positive1000mm
Module weight (kg) :
20
Module dimension (L*W*H)(mm) :
1606*1042*30mm
Power optimizer matching form :
2 modules equipped with 1 optimizer
Type :
Mono half-cut cells
Description

Residential Standard Solar Panel , 325W Photovoltaic wholesale solar panels prices

The solar panel is made to our specifications , the systems are ideal for homeuse with fridge ,light, and other home applicance. clean energy is needed. They are very popular among the international market and will the future tender of new energy.

Main Features

1. High power output

30 year linear performance warranty, more than 30% additional power gain.

2. Zero LID & PID

No LID, more power generation.

No PID, stable power generation.

3. Fire safety performance

Higher fire safety class to minimize fire risks.

4. Outstanding module performance

Higher power output, even under low light conditions.

Excellent low irradiation performance and below -0.38% /℃ temperature coefficient of Power.

5. Wider applications & more flexible installed angle

No water-permeability and high wear-resistance, can be widely used in high-humid, strong wind&sand areas and not limited to traditional slope installation.

Electrical performance parameters

Model DDP315(K) DDP320(K) DDP325(K)
Maximum power(Pm/Wp) 315 320 325
Maximum power voltage(Vmp/V) 29.3 29.4 29.5
Maximum power current(lmp/V) 10.75 10.88 11.00
Open circuit voltage(Voc/V) 35.9 36 36.1
Short circuit current(Isc/A) 11.54 11.60 11.66
Module efficient(%) 18.8 19.1 19.4

Mechanical performance parameters

Cell Nos & array Mono half-cut cells 108 (6*9*2)
Appearance color Black
Cable 4m㎡ negetive1000mm,positive1000mm
Module weight (kg) 20
Module dimension (L*W*H)(mm) 1606*1042*30mm
Packing 30pcs/pallet
Power optimizer matching form 2 modules equipped with 1 optimizer

Quality parameters

Module working temperature range (℃) -40~ +85
Power tolerance(W) 0~+5
Maximum system voltage(V) DC1500
System maximum protection current(A) 20
NOCT(℃) 45±2
Front/rear static loads(Pa) 2400 / 3600
Junction box/Connector Ip68,split / MC4 compatible

Temperaturecoefficient(STC)

Temperature coefficient of Voc -0.3%/℃
Temperature coefficient of Isc +0.06%/℃
Temperature coefficient of Pm -0.39%/℃
Test condition:irradiance=(1+0.1BiFi)1000W/㎡,ambient temperature=25℃,AM=1.5

Drawing(mm)

Residential Photovoltaic Standard Solar Panel 325W

Quality Warranty

10-year materials&workmanship warranty

30-year linear power warranty

Residential Photovoltaic Standard Solar Panel 325WResidential Photovoltaic Standard Solar Panel 325W
