Vertical Flat Roof Mounting System High Anodized Aluminum Extrusion Frame
Vertical Flat Roof Mounting System High Anodized Aluminum Extrusion Frame
Vertical Flat Roof Mounting System High Anodized Aluminum Extrusion Frame
Vertical Flat Roof Mounting System High Anodized Aluminum Extrusion Frame
Vertical Flat Roof Mounting System High Anodized Aluminum Extrusion Frame
Vertical Flat Roof Mounting System High Anodized Aluminum Extrusion Frame
Vertical Flat Roof Mounting System High Anodized Aluminum Extrusion Frame
Vertical Flat Roof Mounting System High Anodized Aluminum Extrusion Frame
Specifications
Brand Name :
TIANFON
Model Number :
Solar Panel Roof Mounting Systems
Certification :
SGS,ISO 9001,ISO 14001,OHSAS 18000
Place of Origin :
CHINA
MOQ :
5 set
Price :
US $0.05-0.18 / Watts
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30MW/month
Delivery Time :
15-25 work days
Packaging Details :
Carton box,wooden pallet,belt bundle packing and other kinds of package ensure the products safty and waterproof.
Name :
Anodized Aluminum Extrusion Frame Support
Surface Treatment :
Galvanized,Anodized
Thickness :
0.5mm-15mm
Feature :
Easy & Quick Installation
Max. Wind Speed :
60m/s
Max. Snow Load :
1.4KN/m2
Description

High Material Anodized Aluminum Extrusion Frame Support For Roof Mounting Solar Panel

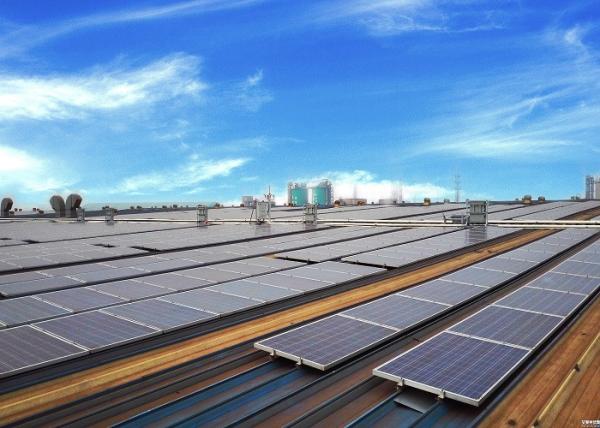

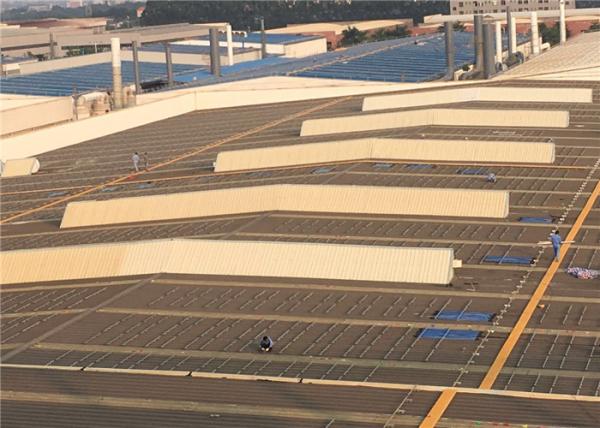

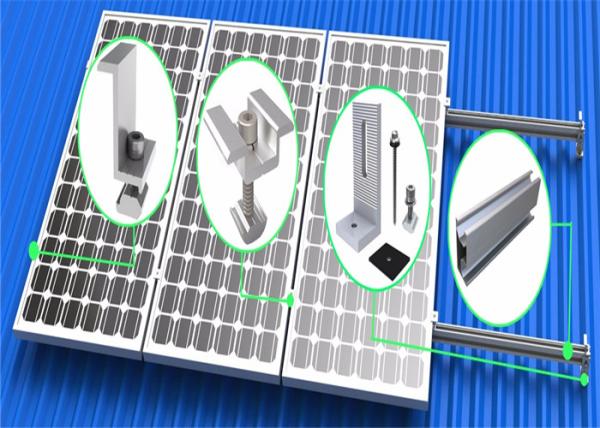

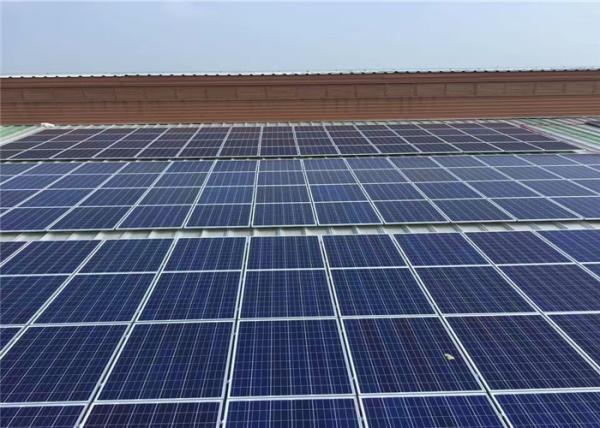

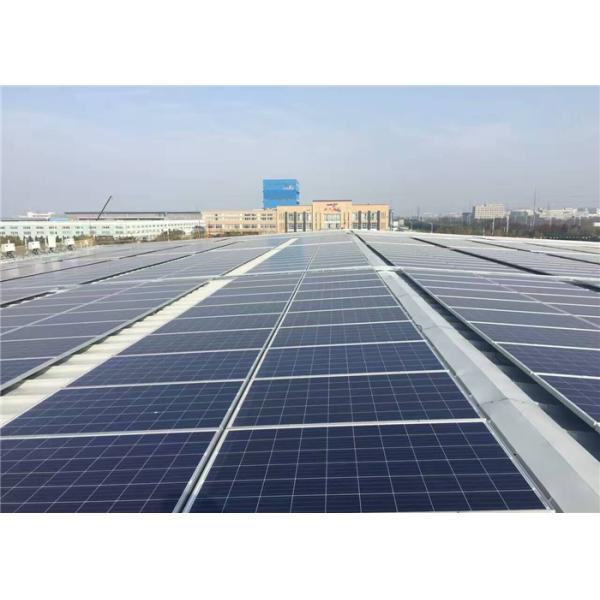

Solar roof mounting system is very popular with customers. The wide range of different components makes it possible to fasten almost all sorts of module. You can choose panels arrangement according to your roof size. With the high-quality and elaborated components, our solar panel mounts can reach 25 years of service life and 10-year warranty. Besides, as we are a manufacturer, our price is very competitive and delivery time is short.

Features of Flat roof aluminum solar mounting system

Fast and easy installation on roof directly or pre-made cement blocks

100% lightweight and corrosion resistant aluminum rails

Flexible to meet any solar panels

High competitiveness on materials cost

Extraordinarily environment-friendly performance

Product Parameter

Mount Type Solar mounting bracket/ pv solar panel tile roof mount/ bracket/ racking system
Installation Site Roof top
Application Framed solar panel for any size
Structural materials aluminum, stainless steel
Survival wind speed Up to130mph(60m/s)
Design snow pressure Up to 30psf(1.4KN/m2)
Inclination 0 degree (the same angle as roof)
Panel direction vertical or landscape
Warranty Design Life for 25 years, quality assurance for 10 years

Vertical Flat Roof Mounting System High Anodized Aluminum Extrusion Frame
