250L 316 Stainless Steel Flat Plate Solar Water Heater Blue Coating Flat Collector flat solar water heater
250L 316 Stainless Steel Flat Plate Solar Water Heater Blue Coating Flat Collector flat solar water heater
250L 316 Stainless Steel Flat Plate Solar Water Heater Blue Coating Flat Collector flat solar water heater
250L 316 Stainless Steel Flat Plate Solar Water Heater Blue Coating Flat Collector flat solar water heater
Specifications
Brand Name :
SolarShine/OEM/ODM
Model Number :
TH150-320L
Certification :
GB
Place of Origin :
China
MOQ :
5 SETS
Supply Ability :
300 SETS per month
Packaging Details :
Export packing
Capacity :
150L 260L 320L
Housing material :
Stainless Steel,galvanized steel,color steel,Aluminum Alloy,Plastic
Circulation type :
directed thermosyphon
Installation :
Flat roof bracket/Declining roof bracket
Type :
Flat-Plate,Pressurized
Connection type :
22MM
Collector area :
2M2, 2.4M2, 4M2, 4.8M2
Collector frame color :
black, white
Tank material :
stainless steel
Support bracket :
Stainless steel
Controller :
Intelligent automatic controler
Absorber :
selective coating
Backup heater :
1.5-3KW
Working pressure :
0.6Mpa
Circulation pipe :
PEX pipe with insulation
Circulation way :
Thermosyphon automatic
Heat insulation of tank :
high density polyurethane（non-CFC）
Description

250L 316 Stainless Steel Flat Plate Solar Water Heater Blue Coating Flat Collector flat solar water heater

PRODUCT INTRODUCTIONS:

SolarShine thermosyphon solar heating systems based on flat plate solar collector provide a simple way to get hot water from the sun.A normal-working system requires neither pump nor temperature- differential-control, the systems are very easy installation, simple and low cost maintenance.

All systems equipped with high- efficiency solar collectors, pressurized water tanks, and accessories pack for easy installation.

Features:

- System Volume available: /150L / 250L / 300L.
- Both of Inner and outer cover of tank is made of SUS304 high-grade stainless steel.
- Strong mounting frame for flat roof or pitch roof mounting.

- Easy installation and maintenance.

- Full automatic controller.

- Automatic start / stop the auxiliary electric heater under preset timing and temperature level.
- With Back up electric heater, ensure adequate hot water supplying at rainy or cloudy days.

SPECIFICATION AND PRICE QUOTATION:

1. ECO Series, suitable for hot climate regions and lower-cost budget.

PART Model TH-150-A2.0 TH-250-A4.0 TH-300-A4.0
  • Storage

Tank

 Capacity 150 Liters 250 Liters 300 Liters
Ext. Size(mm) Φ470x 1545 Φ560 x 1625 Φ560 x 1925
Inner material

SUS304 2B

1.2mm

SUS304 2B

1.5mm

SUS304 2B

1.5mm
Tank out cover material SUS304 2B/1.0mm
Insulation High density polyurethane
Tank out cover material SUS304 2B
2.Solar Collector Collector Model* A-2.0-78
Collector Size(mm) 2000x1000x78
Collector quantity 1 x 2.0M2 2 x 2M2 2 x 2M2
Total Collector Area 2.4M2 4M2 4 M2
3.Controller YN388 Full automatic intelligent system controller * 1ET
  • Mounting bracket
 Stainless steel mounting bracket * 1SET
  • Auxiliary Electric Heater
 1.5KW 2KW 3KW
  • Fitting and pipe
 Brass fitting / Valve / PEX circulation pipe * 1set
20’ container loading quantity 40 Sets 30 Sets 25 Sets

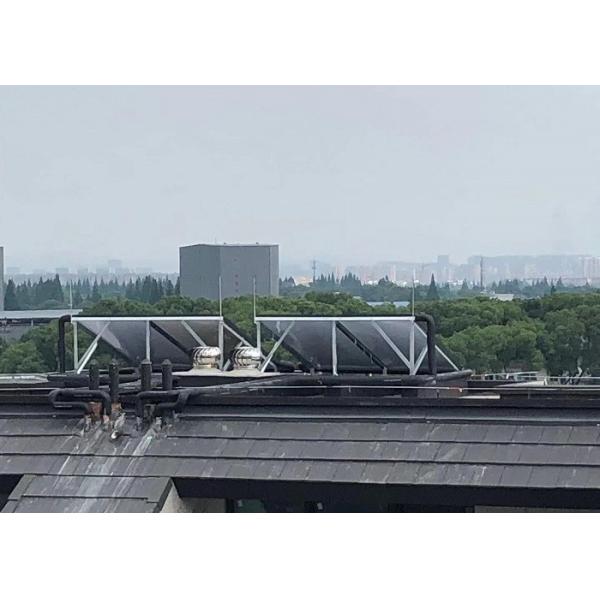

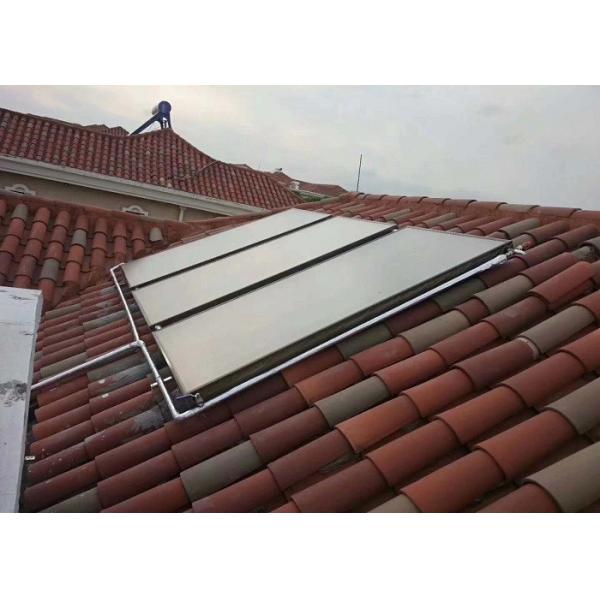

Successful applications:

250L 316 Stainless Steel Flat Plate Solar Water Heater Blue Coating Flat Collector flat solar water heater250L 316 Stainless Steel Flat Plate Solar Water Heater Blue Coating Flat Collector flat solar water heater250L 316 Stainless Steel Flat Plate Solar Water Heater Blue Coating Flat Collector flat solar water heater

Flat Plate Solar Water Heater Technical Data :

Model PTP-BT-15 PTP-BT-20 PTP-BT-25 PTP-BT-30 PTP-BT-35
Water
Tank		 Circulation Type Indirect/Closed circulation
Tank capacity 150L 200L 250L 300L 350L
Outer tank Color Steel Plate, 0.4mm Color: A - enamal white , B - silver
Inner tank Stainless steel SUS304-2B, 1.2mm
Working pressure 6 bar
Test pressure 12 bar
T/P valve 1 PC
Mag rod 1 PC
Electric booster 2KW 2KW 2KW 3KW 3KW
Flat Panel Solar Collector Dimension 2000 x 1000 x 80mm
Overall area 2m² x 1 PC 2m² x 2 PCS
Absorber material Aluminum Plate
Absorber coating Anode Oxidation / Black Chrome / Blue Titanium
Header pipe Red copper/ Φ22*0.6*2 PCS
Riser pipe Red copper/ Φ8*0.5*7 PCS/Φ10*0.5*7 PCS
Welding Laser welding/Ultrasonic welding
Cover material Low iron tempered textured glass
Frame material Anodised Aluminium Alloy
Insulation Glass Wool
Piping connector Φ22
Mounting Bracket Material Galvanized Steel Plate with plastic spraying, 1.4mm
Bracket style A: Flat roof (20° or 30° or 45°) B: Tilted roof ( 0° )

Packing:

LCL( Less than Container Load ): Carton and Wooden case

FCL( Full Container Load ):Carton

Delivery:

Usually, it is 15 Working days after receiving deposit or original L/C.
