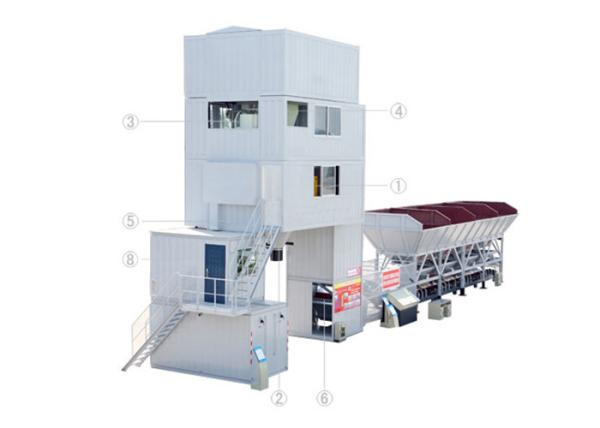

SWCMP1800 Belt Conveyor Concrete Batching Plant 120 - 150 M³/H For Construction
SWCMP1800 Belt Conveyor Concrete Batching Plant 120 - 150 M³/H For Construction
Specifications
Brand Name :
SINOWAY
Model Number :
SWCMP1800
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
D/A, L/C, D/A, D/P, T/T, Western Union
Supply Ability :
5 set per month
Delivery Time :
30 days
Packaging Details :
Nude
Capacity Per Hour :
120~150 m³/h
Capacity of the aggregate bin :
4×30m³
Discharge height :
3.8m
Total power :
272KW
Working voltage and frequency :
380 V/50 Hz
Control voltage :
DC24 V
Description

Factory Supply SWCMP1800 Belt Conveyor Concrete Batching Plant 120~150 m³/h Concrete Mixing Plant For Construction

Main Technical specifications 　
Productivity 120~150 m³/h
Model of the mixer SWM3000
Power of the mixing motor 2×55 kW
Cycle time 50 s
Volume of the mixer 3.0 m³
Aggregate size ≤150 mm
Capacity of the powder silo 4×100 ton
Capacity of the aggregate bin 30 m³
Number of aggregate bin 4
Conveying capacity of the Inclined belt conveyor 600 t/h
Discharge height 3.8 m
Total power 272 kW
weighing range and accuracy of the stone 2×3600±2% kg
Weighing range and accuracy of the sand 2×2400±2% kg
Weighing range and accuracy of the cement 1800±1% kg
Weighing range and accuracy of fly ash 500±1% kg
Weighing range and accuracy of the water 800±1% kg
Weighing range and accuracy of the admixture 2×80±1% kg
Working voltage and frequency 380 V/50 Hz
Control voltage DC24 V

SWCMP1800 Belt Conveyor Concrete Batching Plant 120 - 150 M³/H For Construction

SWCMP1800 Belt Conveyor Concrete Batching Plant 120 - 150 M³/H For Construction
