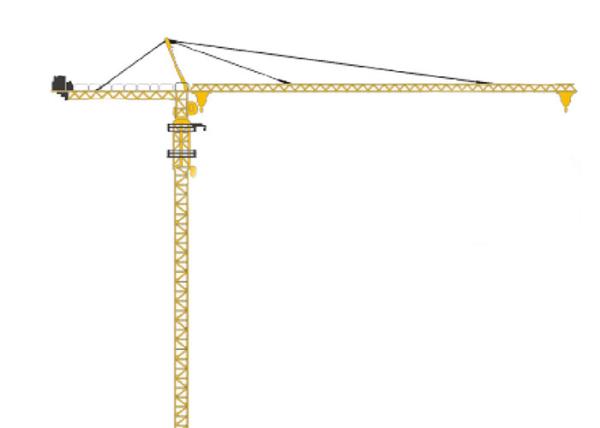

Topkit Tower Hydraulic Mobile Crane 6000kg Lifting Capacity Construction Building Equipment
Topkit Tower Hydraulic Mobile Crane 6000kg Lifting Capacity Construction Building Equipment
Specifications
Brand Name :
SINOWAY
Model Number :
SWQTZ63
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 units per year
Delivery Time :
60 days
Packaging Details :
Nude
Working radius :
56m
Free height :
41m
Max. height :
161m
Slewing speed :
0-0.62rpm
Slewing Mechanism Power :
2 x 3.7KW
Multiplying Power :
24/24/5.4KW
Size of mast section :
1.8 x 1.8 x 2.5m
Description

SWQTZ63 6000kg Lifting Capacity Construction Building Equipment Topkit Tower Crane From China Hydraulic Mobile Crane

Hoisting Mechanism
Multiplying a = 2 or 4
Hoisting speed 10/40/80m/min (a=2); 5/20/40m/min (a=4)
Motor power 24/24/5.4kw
Trolley Mechanism
Max. luffing speed 40/20m/min
Motor power 3.3/2.2kw
Climbing Mechanism
Climbing speed 0.6m/min
Motor power 5.5kw
Rated working pressure 25/30MPa
Size of mast section 1.8 x 1.8 x 2.5m
Slewing Mechanism
Slewing speed 0-0.62rpm
Motor power 2 x 3.7kw
Ballast
Ballast weight 11100kg (41m jib)
Ballast weight 12250kg (46m jib)
Ballast weight 13550kg (51m jib)
Ballast weight 14850kg (56m jib)
Main Technical Specification
Max. working radius 56m
Free height 41m
Max. height 161m
Max. lifting capacity 6000kg
Tip lifting capacity 1000kg

Rated Lifting Load Capacity

m 20 25 30 35 40 45 50 56
5t-15.2m (T) a=4 3.65 2.81 2.26 1.87 1.58 1.36 1.17 1
3t-24m (T) a=2 3 2.87 2.32 1.93 1.64 1.42 1.23 1.06

m 20 25 30 34 40 46 51
6t-13.9m (T) a=4 3.96 3.06 2.47 2.12 1.73 1.45 1.26
3t-25m (T) a=2 3 3 2.53 2.18 1.79 1.51 1.32

m 20 25 30 35 40 46
6t-15m (T) a=4 4.32 3.34 2.7 2.25 1.91 1.6
2.5t-28m (T) a=2 3 3 2.76 2.31 1.97 1.66

m 20 25 30 35 41
6t-16.2m (T) a=4 4.73 3.67 2.97 2.47 2.04
2.5t-30m (T) a=2 3 3 3 2.53 2.1

Topkit Tower Hydraulic Mobile Crane 6000kg Lifting Capacity Construction Building Equipment

Topkit Tower Hydraulic Mobile Crane 6000kg Lifting Capacity Construction Building Equipment
