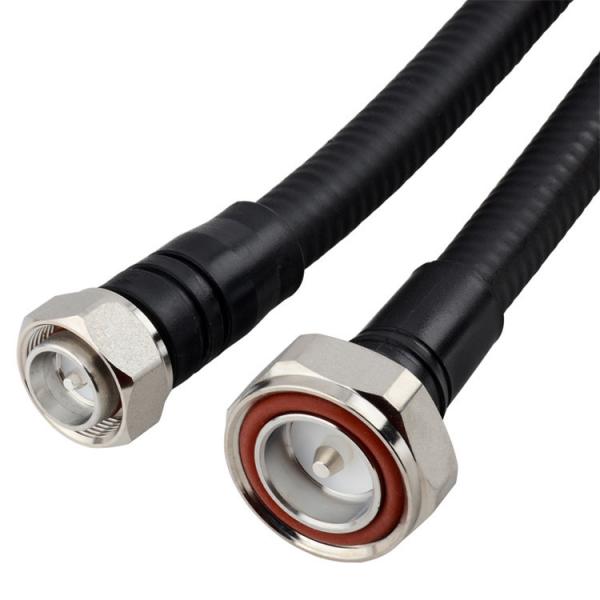

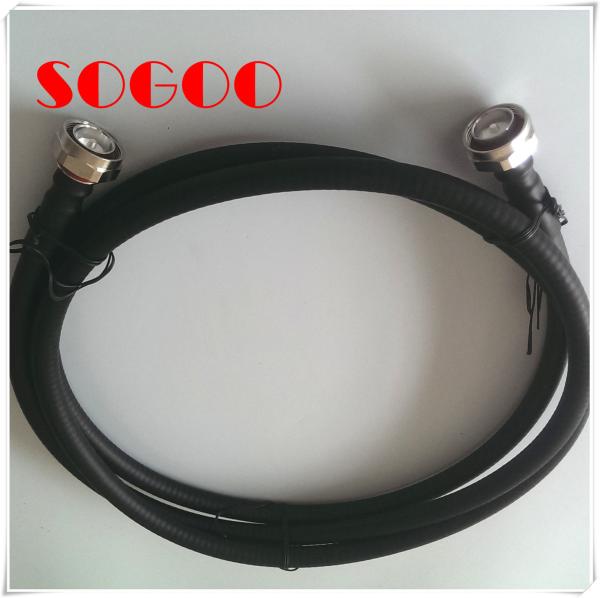

1/2 Superflex Jumper Cable With 4.3-10 Male To 7/16 Din Male Connector
1/2 Superflex Jumper Cable With 4.3-10 Male To 7/16 Din Male Connector
1/2 Superflex Jumper Cable With 4.3-10 Male To 7/16 Din Male Connector
1/2 Superflex Jumper Cable With 4.3-10 Male To 7/16 Din Male Connector
1/2 Superflex Jumper Cable With 4.3-10 Male To 7/16 Din Male Connector
1/2 Superflex Jumper Cable With 4.3-10 Male To 7/16 Din Male Connector
1/2 Superflex Jumper Cable With 4.3-10 Male To 7/16 Din Male Connector
1/2 Superflex Jumper Cable With 4.3-10 Male To 7/16 Din Male Connector
1/2 Superflex Jumper Cable With 4.3-10 Male To 7/16 Din Male Connector
1/2 Superflex Jumper Cable With 4.3-10 Male To 7/16 Din Male Connector
Specifications
Brand Name :
OEM/ODM
Certification :
CE, RoHS
Place of Origin :
China
MOQ :
50 pcs
Price :
sales@sogootelecom.com
Payment Terms :
Paypal,T/T, Western union
Supply Ability :
2000 pcs per week
Delivery Time :
3~15 days
Packaging Details :
PP bag+ paper carton
Product Name :
1/2" Superflex Jumper Cable With 4.3-10 Male To 7/16 Din Male Connector
Length :
1.5m~5m
Compatible :
Huawei ZTE
Connector :
4.3-10 Male To 7/16 Din Male
Application :
4g wifi base station
Cable :
1/2 inch super flex jumper cable
Description

1/2" Superflex Jumper Cable With 4.3-10 Male To 7/16 Din Male Connector

1/2

Specification:

Electrical Specification
Impedance
50Ω
Frequency range (for connector interface)
DC~18GHz
electric withstanding voltage (at sea level)
≥750-1500V,50Hz (depending on cable)
Working voltage (at sea level)
≥250-500V,50Hz (sea level) / ≥65-125V,50Hz (Height 21000M)
V.S.W.R.
customized
Insulation Resistance
≥5000mΩ
Contact resistance
Inner conductor: ≤1.0mΩ
Outer conductor: ≤0.2mΩ
RF leakage(2-3GHZ)
Flexible: ≥60dB
Semi-rigid cable: ≥100dB

Mechanical Specification
Coupling nut torque
0.8Nm--1.1Nm / 7.1 in.lbs--9.7 in.lbs
Coupling nut retention force
≥270N / 60.7 lbs
Contact captivation axial
≥27N / 6.1 lbs
Durability (matings)
≤500
Temperature range
-65°C to +165°C

MATERIAL DATA
Bodies, outer contacts
Beryllium copper--Au plating
Stainless steel--Passivation
Brass--Au plated / ternary alloy plating
Phosphor bronze --Au plating
Pin contacts
Brass/Beryllium copper--Au plating
Socket contacts
Beryllium copper / Phosphor bronze--Au plating
Crimp ferrules
Brass--Au plating
Insulator
PTFE
Gaskets
Silicone rubber

Applicable Standard
MIL-C-39012;

CECC 22110;

IEC 60169-15.

3.3. Environment feature

Waterproof: IP68

Operation temperature range: -40°C to +85°C

Storage temperature range: -70°C to +85°C

Q&A

Q1. Can I have a sample order for this product?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 1-2 days, mass production time needs 1-2 weeks

Q3. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q4: Do you offer guarantee for the products?

A: Yes, we offer 1-2 years warranty to our formal products.

Q5: What about delivery time?

A: 1) Samples: within one week.

2) Goods: 15-20 days usually.

Packing & Delivery

AS customer requirements

Inner packing:Bubble

Outer packing:carton

Foam + Blister + Vacuumize +Carton

Any kind of packing can be mixed.

Delivery:7-15Days after payments
