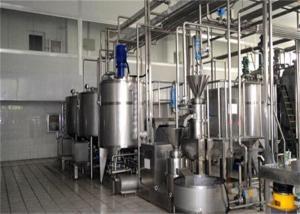

Single Layer Small Scale Yogurt Production Line , Yogurt Processing Equipment SUS304
Single Layer Small Scale Yogurt Production Line , Yogurt Processing Equipment SUS304
Specifications
Place of Origin :
china
MOQ :
1 set
Price :
Negotiation
Delivery Time :
30 working days
Packaging Details :
Plywood case exporting standard
product name :
Yoghurt Production Lin
capacity :
200 - 1000 L / H
Dish separator :
Auto residue discharge
Milk acceptor :
SUS304, single layer, CIP cleaning ball
milk pump :
SUS304, pump lift 24m, hard alloy mechanical seal, inner shell mirror polished
Twin piping filter :
SUS304, two pipe, stainless steal filter element 100 mesh
Description

Single Layer Small Scale Yogurt Production Line , Yogurt Processing Equipment SUS304

Features:

All machine materials are made of SS#304, PLC control with Touch Screen, Double Chain with best Sproket , High Precision Speed Reducer, Pneumatic Control, Photoelectric Switch.

The electrics and pneumatics for this machine are used famous brands, for examples like Siemens, Omron,FESTO, SMC, AIRTAC,MITISUBSHI..

Easy to operate, high speed to improve production efficiency and lower the production cost, reduce the

labor, less Maintain, easy to clean, lower Noisy... Longer Life to 10 years

Specification:

Equipment list of long shelf life yogurt production line

(pasteurized milk/yogurt/cheese/cream/butter)
No. Name Main technology parameter
1 Milk receive, storage and cream separator unit
2 Electron pound scale Maximum weighing 500KG
3 Milk weighing tank SUS304, single layer, product feeded in through 40 mesh filter net, CIP cleaning ball
4 Milk acceptor SUS304, single layer, CIP cleaning ball
5 Milk pump SUS304, pump lift 24m, hard alloy mechanical seal, inner shell mirror polished
6 Twin piping filter SUS304, two pipe, stainless steal filter element 100 mesh
7 Dish separator Auto residue discharge
8 Chiling tank SUS304, alveolate jacket, attached with compressor
9 Milk pump SUS304, pump lift 24m, hard alloy mechanical seal, inner shell mirror polished
10 Preparing unit
11 Blending tank SUS304, heat insulated, top off center vertical agitator, conical head, airtight manhole, breather valve, digital readout thermometer, anti-eddy baffle, supporters with adjustable feet
12 Milk pump SUS304, pump lift 24m, hard alloy mechanical seal, inner shell mirror polished
13 Mini set of plate-type heat exchanger SUS304, two stages
14 High speed emulsification tank SUS304, heat insulated, bottom high speed emulsifier, digital readout thermometer, supporters with adjustable feet
15 Milk pump SUS304, pump lift 24m, hard alloy mechanical seal, inner shell mirror polished
16 Twin piping filter SUS304, two pipe, stainless steal filter element 100 mesh
17 Sterilizing and homogenizing unit
18 UHT sterilizer Tub-type, sterilzing temperature 137C, holding time 4s, full automatic control
19 High pressure homogenizer 40MPa (starting box included)
20 Temperature holding SUS304, holding 300s
21 Distributing board SUS304, 3 holes
22 Cheese/butter processing unit
23 Bufferying tank SUS304, heat insulated, top off center vertical agitator, conical head, airtight manhole, breather valve, digital readout thermometer, anti-eddy baffle, supporters with adjustable feet
24 Milk pump SUS304, pump lift 24m, hard alloy mechanical seal, inner shell mirror polished
25 Cream seperator
26 Bufferying container SUS304, with cover
27 Milk pump SUS304, pump lift 24m, hard alloy mechanical seal, inner shell mirror polished
28 Butter churner SUS304, stepless timing
29 Cheese vat SUS304, with heating jacket and insising device
30 Pressor SUS304, 6 heads
31 Mould SUS304, 10L, with cover
32 Yogurt fermentation unit
33 Fermentation tank SUS304, heat insulated, top off center vertical agitator, conical head, airtight manhole, breather valve, digital readout thermometer, anti-eddy baffle, supporters with adjustable feet
34 Rotary pump SUS304, hard alloy mechanical seal, manual stepless shift
35 Plate cooler SUS304, single stage, milk discharge at 4degreeC
36 Rotary pump SUS304, hard alloy mechanical seal, manual stepless shift
37 Filling unit
38 Higher position tank SUS304, heat insulated, top off center vertical agitator, conical head, airtight manhole, breather valve, digital readout thermometer, anti-eddy baffle, supporters with adjustable feet
39 Pasteurized milk filling machine
40 Yogurt filling machine
41 CIP system unit
42 Semi-auto CIP system Outer shell of SUS304, inner shell of SUS316, single cleaning way, concentrated acid/alkali tank adding system based on US technology, 100L×2 acid/alkali concentrate tanks
43 CIP return pump SUS304, pump lift 24m, hard alloy mechanical seal, inner shell mirror polished
44 Installation part Project installation and commissioning

Zhejiang Jinben Machinery Manufacturing Co., Ltd., founded in 1995 with the area of 23,500㎡, is specialized in the design, research and development, production and sales of food and beverage machinery and equipment.

The main products and service are beverage filling production lines, milk yoghurt production lines, water production lines, water treatment equipment, sterilizing machines, filling machines, labeling machines, stainless steel tanks and series of packaging machinery and equipment. Our products not only sell well in China, but also sell over the world. The annual export volume is stable and shows continuous growth.

Based on the company philosophy of “implementing scientific management, creating excellent quality, and serving customers with integrity”, the company actively explores markets and provides quality products and perfect services to customers.

Sincerely welcome friends and customers come for business and let us develop together!
