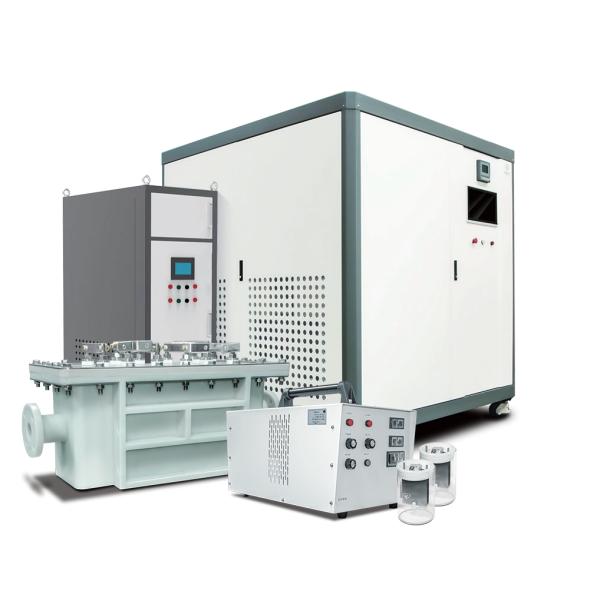

Integrated Slot-Type Waste Water Treatment System
Integrated Slot-Type Waste Water Treatment System
Specifications
Brand Name :
Geemblue
Model Number :
XFDC175
Certification :
ISO9001 CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
NEGOTIATION
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 SET/MONTH
Delivery Time :
60-80 work days
Packaging Details :
wooden case
Model :
XFDC175
Anode Material :
BDD
Cathode Material :
Titanium
Treatment Capacity :
By water quality
Number of Modules :
2-slot 4-module
Area of anode strip :
1.75m2
Description

Integrated Slot-Type Waste water Treatment System


The whole equipment is based on a BDD electrode and adopts an integrated slot-type design, which solves the technical problems of traditional equipment in inlet water pretreatment, low reaction efficiency and discharge, and realizes intelligent automation.


LOW THRESHOLD:the influent does not need to be diluted, chemically added, or biochemically treated；
HIGH EFFICIENCY:good mass transfer effect between wastewater and electrode plate, with high reaction efficiency；
EASY DISCHARGE:wastewater passes through at a high flow rate, which makes it easy to exhaust and discharge slag；
NO AUXILIARY EQUIPMENT:integrated equipment, without auxiliary
equipment；
LABOR SAVING:automatic operation without manual attendance

Integrated Slot-Type Waste Water Treatment System

Specifications:

Equipment model XFDC175 XFDC350

Equipment dimension (L×W×H, mm)

2320 x 2200 x 2103

(excluding dosing and water chiller)

3934 x 2056 x 2888

(excluding dosing and water chiller)
Equipment weight(kg) 1500 3830
Number of modules 2-slot 4-module 4-slot 8-module
Anode material BDD
Cathode material Ti
Area of anode strip(㎡) 1.75 3.5
Treatment capacity(m³/h) By water quality
Single-batch processing time(h) By water quality
Effective volume of reaction barrel(m³) 0.5 0.71
Service power of equipment(Kw) ≤14(Installed capacity 20 Kw) ≤28(Installed capacity 40 Kw)
Service current density of equipment(mA/c㎡) ≤70(≤602 A) ≤70(≤1204 A)
Maximum heating power of equipment(Kw) 6.12 12.23
Refrigerating capacity of water chiller(Kw) 9 14.1
Air volume of exhaust fan(m³/h) ≥780 m³/h ≥510 m³/h
Input voltage AC 380 V/50 Hz
Power output DC 1000 A/20 V DC 2000 A/20 V
Operating ambient temperature for equipment 0 ℃ ~ 45 ℃
Maximum temperature in reaction barrel 70 ℃
Relative humidity ≤90%
Installation method Indoor
Protection function Superheat / overpressure / high level / low level
Inlet diameter DN32 flange DN40 flange
Outlet diameter DN50 flange DN50 flange
Water chiller Optional
Dosing Optional
