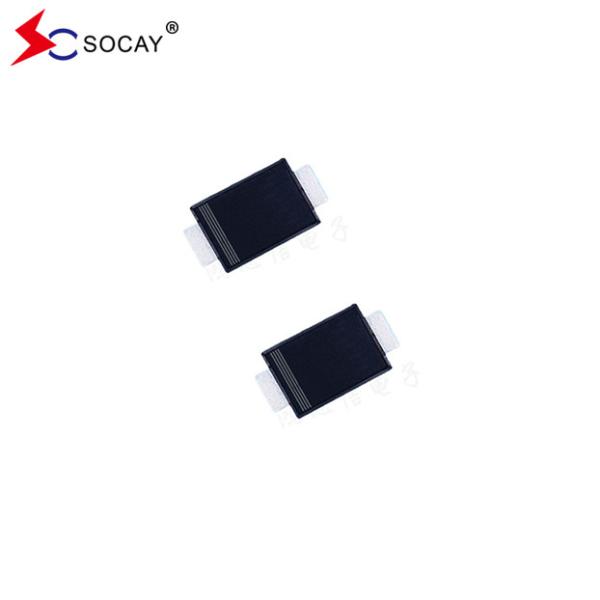

SOD-123FL Surface Mount Schottky Barrier Diode SBD106D1 for Advanced Designs
SOD-123FL Surface Mount Schottky Barrier Diode SBD106D1 for Advanced Designs
Specifications
Brand Name :
Socay
Model Number :
SBD106D1
Place of Origin :
Shenzhen,China
Certification :
REACH,RoHS,ISO
MOQ :
3000PCS/REEL
Packaging Details :
per 7" plastic Reel
Reverse Leakage Current at VRRM :
30μA
Operating Junction Temperature and Storage Temperature Range :
-55 To +150℃
Maximum DC Blocking Voltage :
60V
Average Rectified Current :
1A
Typical Junction Capacitance Rating at VR=0V :
125pF
Maximum Forward Voltage at IF=1A :
0.7V
Description

Product Description:

Our Schottky Barrier Diode also has a Maximum Forward Voltage of only 0.7V at IF=1A, ensuring minimal power loss and maximizing efficiency. With a Maximum RMS Voltage of 42V, our product is designed to handle a variety of power supply needs. Whether you're working on a hobby project or a commercial application, our Surface Mount Schottky Barrier Rectifiers are a reliable choice for your diode triode transistor needs.

Features:

  • Product Name: Schottky Barrier Diode
  • Average Rectified Current: 1A
  • Maximum Repetitive Peak Reverse Voltage: 60V
  • Maximum Forward Voltage at IF=1A: 0.7V
  • Operating Junction Temperature and Storage Temperature Range: -55 To +150℃
  • Product Type: Surface mounted Diode
  • Usage: Bridge Rectifier Diode
  • Features: Surface Mount Schottky Barrier Rectifiers

Technical Parameters:

Reverse Leakage Current at VRRM 30μA
Maximum Forward Voltage at IF=1A 0.7V
Maximum Repetitive Peak Reverse Voltage 60V
Average Rectified Current 1A
Maximum RMS Voltage 42V
Typical Junction Capacitance Rating at VR=0V 125pF
Operating Junction Temperature and Storage Temperature Range -55 To +150℃
Maximum DC Blocking Voltage 60V

This Schottky Barrier Diode is a high forward surge current semiconductor, bridge rectifier diode, and diode electronic component.

FAQ:

1.What is the brand name of this Schottky Barrier Diode?

A: The brand name of this Schottky Barrier Diode is Socay.

2.What is the model number of this Schottky Barrier Diode?

A: The model number of this Schottky Barrier Diode is SBD106D1.

3.Where is this Schottky Barrier Diode manufactured?

A: This Schottky Barrier Diode is manufactured in Shenzhen, China.

4.Does this Schottky Barrier Diode have any certifications?

A: Yes, this Schottky Barrier Diode has REACH, RoHS, and ISO certifications.

5.What is the minimum order quantity for this Schottky Barrier Diode?

A: The minimum order quantity for this Schottky Barrier Diode is 3000PCS/REEL, and it is packaged per 7" plastic Reel.
