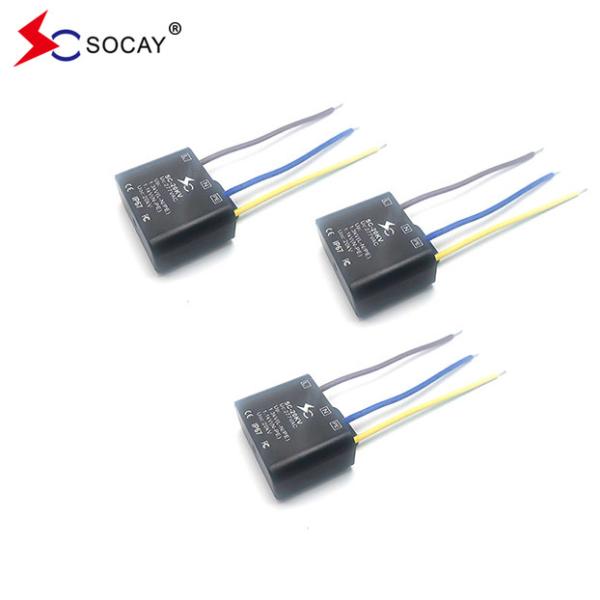

SC-20KV-277 SPD Surge Protection Device 20kV LED Surge Protector
SC-20KV-277 SPD Surge Protection Device 20kV LED Surge Protector
Specifications
Brand Name :
SOCAY
Model Number :
SC-20KV-277
Certification :
UL,REACH,RoHS,ISO
Place of Origin :
Shenzhen, Guangdong, China
MOQ :
270PCS
Price :
Negotiable
Delivery Time :
1-3 weeks
Packaging Details :
PP bag
Protector Name :
SPD Device
Protector Size :
41×32×19.5mm
Protector Rated Operating Voltage :
220VAC
Protector Max. Continuous Voltage :
277VAC
Protector Response Time :
25ns
Protector Vn :
20kV
Protector L-N/PE :
1.3kV
Protector N-PE :
1.1kV
Description

Original Factory Supply SC-20KV-277 Surge Protection Device 20kV Led Surge Protector

Surge Protection Device DATASHEET: SC-20KV-277_v2209.1.pdf

Product features

To protection Led light when lightning thounder ,the circuit board safe .

Led Surge Protector​ Applications:

Led Road light

roadway lighting

Traffic Lighting

Ensure electricity supply

Intelligent Lighting Control System on Parking lots

tunnel lighting

Led Surge Protector​ Electrical Characteristics:

SPD Symbol Led Surge Protector​ Parameter Value Unit
Led Surge Protector Electrical Parameters Rated Operating Voltage 220 VAC
Max. Continuous Voltage 277 VAC
Led Surge Protector Response Time 25 ns
Led Surge Protector Cross-section Area 1.5 mm2
Led Surge Protector Surge Parameters Nominal Discharge Voltage (1.2/50μs) (Vn) 20 kV
Led Surge Protector Voltage Protection Level (Up) Led Surge Protector L-N/PE 1.3 kV
Led Surge Protector N-PE 1.1 kV


Led Surge Protector​ Application/ Inatallation Schematic:

SC-20KV-277 SPD Surge Protection Device 20kV LED Surge Protector

Note:

The black wire is L wire, the white wire is N wire, and the yellow-green wire is the ground wire.

Led Surge Protector​ Typical Dimension:

SC-20KV-277 SPD Surge Protection Device 20kV LED Surge Protector

Led Surge Protector​ Packaging Information:

SPD Part Number SPD Quantity
SC-20KV-277 270 PCS / Box

SC-20KV-277 SPD Surge Protection Device 20kV LED Surge Protector
