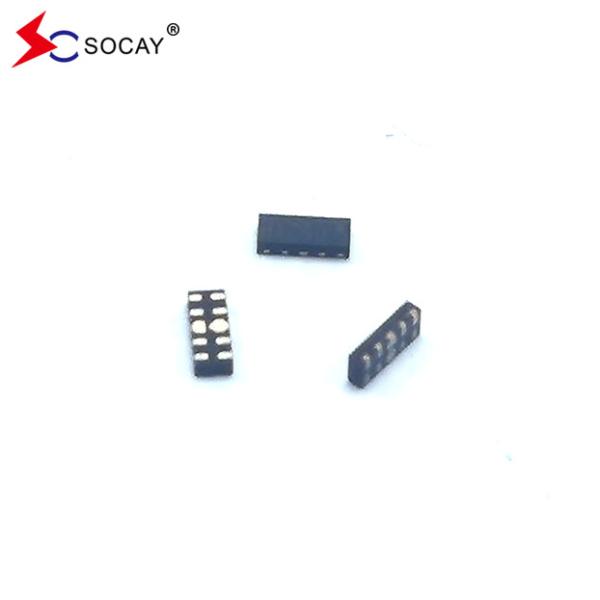

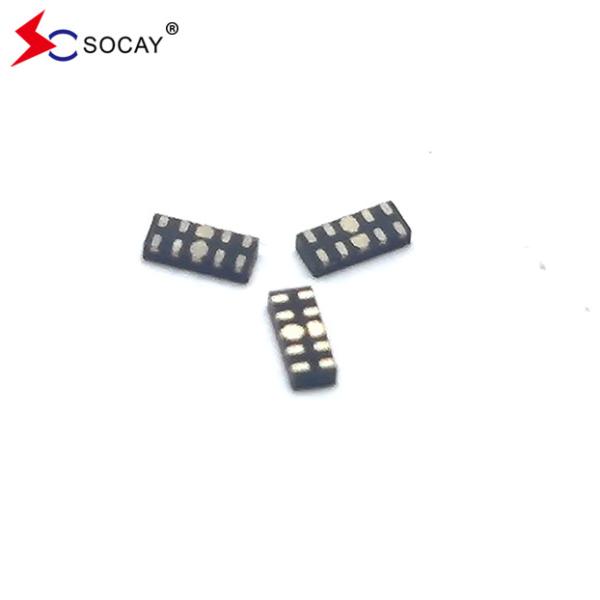

DFN2510-10L ESD Array SE05NRD34GU Working Voltage 5.0V For ESD Protection
DFN2510-10L ESD Array SE05NRD34GU Working Voltage 5.0V For ESD Protection
DFN2510-10L ESD Array SE05NRD34GU Working Voltage 5.0V For ESD Protection
DFN2510-10L ESD Array SE05NRD34GU Working Voltage 5.0V For ESD Protection
DFN2510-10L ESD Array SE05NRD34GU Working Voltage 5.0V For ESD Protection
DFN2510-10L ESD Array SE05NRD34GU Working Voltage 5.0V For ESD Protection
Specifications
Brand Name :
SOCAY
Model Number :
SE05NRD34GU
Certification :
REACH RoHS ISO
Place of Origin :
Shenzhen Guangdong China
MOQ :
3000PCS
Price :
Negotiable
Delivery Time :
5-8 work days
Component Name :
ESD Arrays
Component Package :
DFN2510-10L
Vrwm (Max.) :
5.0V
Vbr (Min.) :
6.0V
Ir (Max.) :
1.0μA
It :
1mA
Vc (Typ.) (Ipp=1A) :
10V
Vc (Typ.) (Ipp=4A) :
13V
Cj (Typ.) Between I/O and GND :
0.6pF
Cj (Typ.) Between I/O and I/O :
0.4pF
Description

DFN2510-10L ESD Arrays SE05NRD34GU Working Voltage 5.0V For ESD Protection

ESD Arrays DATASHEET: SE05NRD34GU_v2307.1.pdf


ESD Arrays Features:

  • Working voltage: 5.0V
  • Low capacitance: 0.60pF (Typical)
  • Low leakage current: 1.0μA @ VRWM
  • Low clamping voltage

  • Response Time is < 1 ns


ESD Arrays Applications:

  • USB 3.0, USB 2.0
  • HDMI 1.3/1.4, Display Port 1.3, eSATA
  • Unified Display Interface (UDI)
  • Digital Visual Interface (DVI)
  • High Speed Serial Interfaces


ESD Arrays Mechanical Characteristics:

  • DFN2510-10L Package
  • Molding Compound Flammability Rating: UL 94V-0
  • Quantity Per Reel : 3,000pcs
  • Reel Size : 7 inch


ESD Arrays Functional Diagram:
DFN2510-10L ESD Array SE05NRD34GU Working Voltage 5.0V For ESD Protection

DFN2510-10L ESD Array SE05NRD34GU Working Voltage 5.0V For ESD Protection


ESD Arrays Absolute Maximum Ratings (TA=25℃ unless otherwise specified):

SymbolParameterValueUnits
TLSTLead Soldering Temperature260 (10sec)℃
TSTGStorage Temperature Range-55 to +150℃
TOPTOperating Temperature Range-55 to +125℃
VESDESD per IEC 61000-4-2(Air)±20KV
ESD per IEC 61000-4-2 (Contact)±15




I-V Curve Characteristics:
DFN2510-10L ESD Array SE05NRD34GU Working Voltage 5.0V For ESD Protection

SymbolParameter
IPPMaximum Reverse Peak Pulse Current
VCClamping Voltage @ IPP
VRWMWorking Peak Reverse Voltage
IRMaximum Reverse Leakage Current @ VRWM
VBRBreakdown Voltage @ IT
ITTest Current
IFForward Current
VFForward Voltage @ IF



Electrical Characteristics (TA = 25℃ unless otherwise specified):

SymbolTest ConditionMinimumTypicalMaximumUnits
VRWMAny I/O pin to GND----5.0V
IR

VRWM=5V, T=25℃
Any I/O pin to GND

----1.0μA
VBR

IT = 1mA
Any I/O pin to GND

6.0----V
VC

IPP=1A, tp=8/20μs
Any I/O pin to GND

--10--V
VC

IPP=4A, tp=8/20μs
Any I/O pin to GND

--13--V
CJ

VR=0V, f=1MHz
Between I/O and GND

--0.60--pF
CJ

VR=0V, f=1MHz
Between I/O and I/O

--0.40--pF



ESD Arrays Application Information:
DFN2510-10L ESD Array SE05NRD34GU Working Voltage 5.0V For ESD Protection
Layout Top View for HDMI Interface with SE05NRD34GU


DFN2510-10L Package Outline & Dimensions:
DFN2510-10L ESD Array SE05NRD34GU Working Voltage 5.0V For ESD Protection

SymbolDimensions In Millimeters
Min.Nom.Max.
A0.450.500.55
A1--0.020.05
b0.150.200.25
b10.350.400.45
b20.200.250.30
c0.100.150.20
D2.452.502.55
e0.50 BSC
Nd2.00 BSC
E0.951.001.05
L0.350.400.45
L10.075 REF
L20.050 REF
h0.080.120.15
R0.050.100.15



DFN2510-10L ESD Array SE05NRD34GU Working Voltage 5.0V For ESD Protection
