DO-214AA SMB 8KV TSS Thyristor Surge Suppressors Low Capacitance 150pF P0080SD
DO-214AA SMB 8KV TSS Thyristor Surge Suppressors Low Capacitance 150pF P0080SD
Specifications
Brand Name :
SOCAY
Model Number :
P0080SD
Certification :
REACH,RoHS,ISO
Place of Origin :
Shenzhen, Guangdong, China
MOQ :
3000PCS
Price :
Negotiable
Delivery Time :
5-8 work days
Packaging Details :
AMMO packing bulk
Product Name :
Thyristor Surge Suppressors (TSS)
foot size :
DO-214AA/SMB
VDRM (Min.) :
6V
IDRM :
5μA
Vs @100V/μS (Max.) :
25V
Is (Max.) :
800mA
Vt @It=2.2A (Max.) :
4V
It (Max.) :
2.2A
Ih (Min.) :
50mA
C0 @1MHz,2V Bias (Typ.) :
150pF
Description

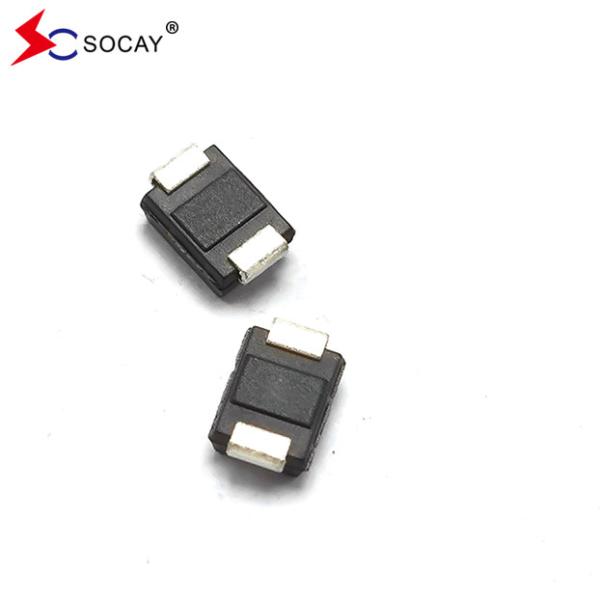

TSS P0080SD @10/700μS, 8KV Thyristor Surge Suppressors Low Capacitance 150pF

DATASHEET: PXXX0SD_v2310.1.pdf

Part Number Marking

VDRM

@IDRM=1μA

VS ①

@100V/μS

 IS

VT

@IT=2.2A

IT IH

C0 ②

@1MHz, 2V bias
V Min. V Max. mA max. V Max. A Max. mA Min. pF Typ.
P0080SD P-8D 6 15 800 4 2.2 50 150
P0640SD P06D 58 77 800 4 2.2 50 150
P0720SD P07D 65 87 800 4 2.2 50 150
P0900SD P09D 75 98 800 4 2.2 50 140
P1100SD P11D 90 130 800 4 2.2 50 110
P1300SD P13D 120 160 800 4 2.2 50 100
P1500SD P15D 140 180 800 4 2.2 50 90
P1800SD P18D 170 220 800 4 2.2 50 90
P2300SD P23D 190 260 800 4 2.2 50 80
P2600SD P26D 220 300 800 4 2.2 50 70
P3100SD P31D 275 350 800 4 2.2 50 60
P3500SD P35D 320 400 800 4 2.2 50 60
P3800SD P38D 340 450 800 4 2.2 50 60
P4200SD P42D 400 520 800 4 2.2 100 40

Notes:

① Vs is measured at 100KV/s.

② Off-state capacitance is measured in VDC=2V, VRMS=1V, f=1MHz.

DO-214AA SMB 8KV TSS Thyristor Surge Suppressors Low Capacitance 150pF P0080SD

Description:

PXXX0SD Series are designed to protect broadband equipment such as modems, line card, CPE and DSL from damaging over-voltage transients.

The series provides a surface mount solution that enables equipment to comply with global regulatory standards.

Features:

u Low voltage overshoot

u Low on-state voltage

u Does not degrade surge capability after multiple surge events within limit

u Fails short circuit when surged in excess of ratings

u Low Capacitance


Applicable Global Standards:

u TIA-968-A

u ITU K.20/21 Enhanced level

u ITU K.20/21 Basic Level

u GR 1089 Inter building

u GR 1089 Inter building

u IEC 6100-4-5

u YD/T 1082

u YD/T 993

u YD/T 950

Series 2/10μS1 8/20μS1 10/160μS1 10/560μS1 10/1000μS1 5/310μS1

ITSM

50/60 Hz

 di/dt
2/10μS2 1.2/50μS2 10/160μS2 10/560μS2 10/1000μS2 10/700μS2
A min A min A min A min A min A min A min Amps/µs max
D 800 700 -- -- 200 200 70 500

Notes:

  • Current waveform in µs
  • Voltage waveform in µs

- Peak pulse current rating (IPP) is repetitive and guaranteed for the life of the product.

- IPP ratings applicable over temperature range of -40ºC to +85ºC

- The device must initially be in thermal equilibrium with -40°C < TJ < +150°C

Part Number Component Package Quantity Packaging Option Packaging Specification
Pxxx0SD DO-214AA 3000 Tape & Reel -12mm/13″tape EIA -481 - D
