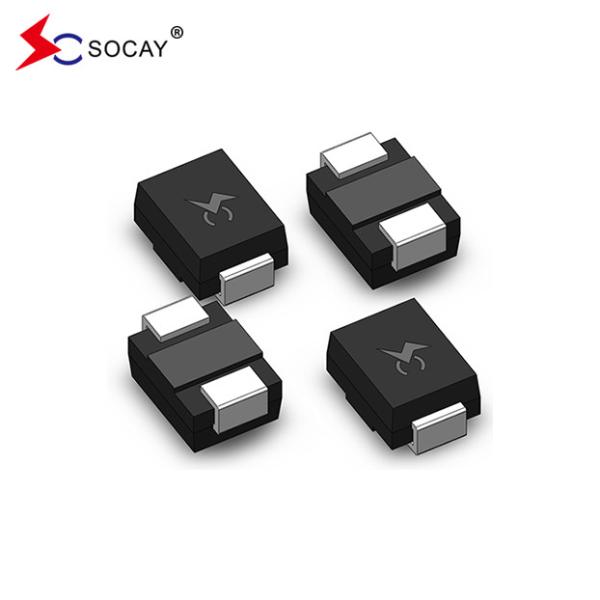

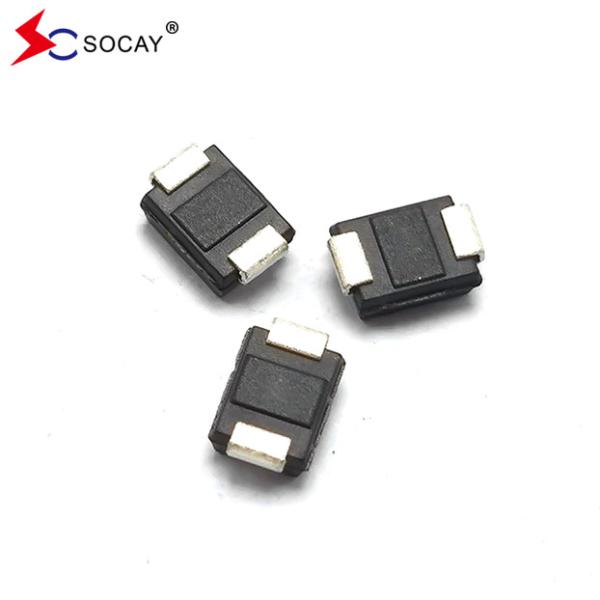

P0720SC Thyristor Surge Suppressors SMD 500A 65V 100pF DO-214AA SMB
P0720SC Thyristor Surge Suppressors SMD 500A 65V 100pF DO-214AA SMB
P0720SC Thyristor Surge Suppressors SMD 500A 65V 100pF DO-214AA SMB
P0720SC Thyristor Surge Suppressors SMD 500A 65V 100pF DO-214AA SMB
P0720SC Thyristor Surge Suppressors SMD 500A 65V 100pF DO-214AA SMB
P0720SC Thyristor Surge Suppressors SMD 500A 65V 100pF DO-214AA SMB
Specifications
Brand Name :
SOCAY
Model Number :
P0720SC
Certification :
REACH,RoHS,ISO
Place of Origin :
Shenzhen, Guangdong, China
MOQ :
2500PCS
Price :
Negotiable
Delivery Time :
5-8 work days
Packaging Details :
AMMO packing bulk
Component :
Thyristor Surge Suppressors
footprint :
DO-214AA/SMB
VDRM (Min.) :
6V
IDRM :
5μA
Vs @100V/μS (Max.) :
88V
Is (Max.) :
800mA
Vt @It=2.2A (Max.) :
4V
It (Max.) :
2.2A
Ih (Min.) :
50mA
C0 @1MHz,2V Bias (Typ.) :
100pF
Description

SOCAY P0720SC Thyristor Surge Protection Devices 500A 65V SMD Thyristor

DATASHEET: PXXX0SC_v2103.1.pdf

Part Number Marking VDRM @IDRM=5μA

VS ①

@100V/μS

 VT @IT=2.2A IS IT IH

CO ②

@1MHz, 2V bias
V min V max V max mA max A max mA min pF typ
P0080SC P008C 6 25 4 800 2.2 50 100
P0300SC P03C 25 40 4 800 2.2 50 100
P0640SC P06C 58 77 4 800 2.2 150 100
P0720SC P07C 65 88 4 800 2.2 150 100
P0900SC P09C 75 98 4 800 2.2 150 90
P1100SC P11C 90 130 4 800 2.2 150 90
P1300SC P13C 120 160 4 800 2.2 150 90
P1500SC P15C 140 180 4 800 2.2 150 85
P1800SC P18C 170 220 4 800 2.2 150 85
P2300SC P23C 190 260 4 800 2.2 150 80
P2600SC P26C 220 300 4 800 2.2 150 80
P3100SC P31C 275 350 4 800 2.2 150 65
P3500SC P35C 320 400 4 800 2.2 150 60
P4200SC P42C 400 520 4 800 2.2 150 55

Notes:

① Vs is measured at 100KV/s.

② Off-state capacitance is measured in VDC=2V, VRMS=1V, f=1MHz.


P0720SC Thyristor Surge Suppressors SMD 500A 65V 100pF DO-214AA SMB

Description: Tss components to protection important equipment PCB Circuit Board

Selection Metbod.

1,To know the customer's product, operating voltage, application port, protection level.

2,Break-state voltage > DC working voltage on the circuit.

3,Select the capacitance value and flow rate of the device according to the application port and protection level.

Features:

u Low voltage overshoot

u Low on-state voltage

u Does not degrade surge capability after multiple surge events within limit

u Fails short circuit when surged in excess of ratings

u Low Capacitance


Applicable Global Standards:

Communication lightning protection, 485, 232 protection solutions, ADSL, Security products, Telephones, Video circuits, Audio circuits.

Series 2/10μS1 8/20μS1 10/160μS1 10/560μS1 10/1000μS1 5/310μS1

ITSM

50/60 Hz

 di/dt
2/10μS2 1.2/50μS2 10/160μS2 10/560μS2 10/1000μS2 10/700μS2
A min A min A min A min A min A min A min Amps/µs max
C 500 400 200 150 100 150 50 500

Notes:

  • Current waveform in µs
  • Voltage waveform in µs

- Peak pulse current rating (IPP) is repetitive and guaranteed for the life of the product.

- IPP ratings applicable over temperature range of -40ºC to +85ºC

- The device must initially be in thermal equilibrium with -40°C < TJ < +150°C

Part Number Component Package Quantity Packaging Option Packaging Specification
Pxxx0SC DO-214AA 2500 Tape & Reel -12mm/13″tape EIA -481 - D

P0720SC Thyristor Surge Suppressors SMD 500A 65V 100pF DO-214AA SMB

P0720SC Thyristor Surge Suppressors SMD 500A 65V 100pF DO-214AA SMB

P0720SC Thyristor Surge Suppressors SMD 500A 65V 100pF DO-214AA SMB

P0720SC Thyristor Surge Suppressors SMD 500A 65V 100pF DO-214AA SMB
