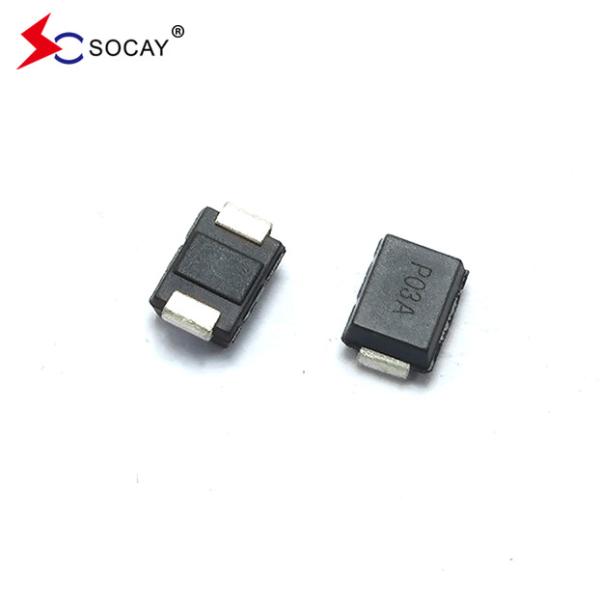

DO-214AA Thyristor Surge Protection Devices 100A 275V SMD P3100SB 4KV
DO-214AA Thyristor Surge Protection Devices 100A 275V SMD P3100SB 4KV
DO-214AA Thyristor Surge Protection Devices 100A 275V SMD P3100SB 4KV
DO-214AA Thyristor Surge Protection Devices 100A 275V SMD P3100SB 4KV
DO-214AA Thyristor Surge Protection Devices 100A 275V SMD P3100SB 4KV
DO-214AA Thyristor Surge Protection Devices 100A 275V SMD P3100SB 4KV
Specifications
Brand Name :
SOCAY
Model Number :
P3100SB
Certification :
REACH,RoHS,ISO
Place of Origin :
Shenzhen, Guangdong, China
MOQ :
2500PCS
Price :
Negotiable
Delivery Time :
1-3 weeks
Packaging Details :
tape reel,bulk
Other Name :
Thyristor tubes
footprint :
DO-214AA/SMB
pattern :
surface amount
VDRM (Min.) :
275V
IDRM :
5μA
Vs @100V/μS (Max.) :
350V
Is (Max.) :
800mA
Vt @It=2.2A (Max.) :
4V
It (Max.) :
2.2A
Date Code :
nearest
Description

SOCAY P3100SB 4KV DO-214AA P3100SB Thyristor Surge Protection Devices 100A 275V SMD

DATASHEET: PXXX0SB_v2103.1.pdf

1.Selection Method

1,To know the customer's product, operating voltage, application port, protection level.

2,Break-state voltage > DC working voltage on the circuit.

3,Select the capacitance value and flow rate of the device according to the application port and protection level.

Part Number Marking VDRM @IDRM=5μA

VS ①

@100V/μS

 VT @IT=2.2A IS IT IH

C0 ②

@1MHz, 2V bias
V min V max V max mA max A max mA min pF typ
P0080SB P008B 6 25 4 800 2.2 50 80
P0300SB P03B 25 40 4 800 2.2 50 80
P0640SB P06B 58 77 4 800 2.2 150 80
P0720SB P07B 65 88 4 800 2.2 150 75
P0900SB P09B 75 98 4 800 2.2 150 70
P1100SB P11B 90 130 4 800 2.2 150 70
P1300SB P13B 120 160 4 800 2.2 150 65
P1500SB P15B 140 180 4 800 2.2 150 65
P1800SB P18B 170 220 4 800 2.2 150 65
P2300SB P23B 190 260 4 800 2.2 150 60
P2600SB P26B 220 300 4 800 2.2 150 60
P3100SB P31B 275 350 4 800 2.2 150 50
P3500SB P35B 320 400 4 800 2.2 150 50
P4200SB P42B 400 520 4 800 2.2 150 40

Notes:

① Vs is measured at 100KV/s.

② Off-state capacitance is measured in VDC=2V, VRMS=1V, f=1MHz.

Parameter Definition
IS Switching Current - maximum current required to switch to on state
IDRM Leakage Current - maximum peak off-state current measured at VDRM
IH Holding Current - minimum current required to maintain on state
IT On-state Current - maximum rated continuous on-state current
VS Switching Voltage - maximum voltage prior to switching to on stat
VDRM Peak Off-state Voltage - maximum voltage that can be applied while maintaining off state
VT On-state Voltage - maximum voltage measured at rated on-state current
C0 Off-state Capacitance - typical capacitance measured in off state

Series 2/10μS1 8/20μS1 10/160μS1 10/560μS1 10/1000μS1 5/310μS1

ITSM

50/60 Hz

 di/dt
2/10μS2 1.2/50μS2 10/160μS2 10/560μS2 10/1000μS2 10/700μS2
A min A min A min A min A min A min A min Amps/µs max
B 250 250 150 100 80 100 30 500

Notes:

  • Current waveform in µs
  • Voltage waveform in µs

- Peak pulse current rating (IPP) is repetitive and guaranteed for the life of the product.

- IPP ratings applicable over temperature range of -40ºC to +85ºC

- The device must initially be in thermal equilibrium with -40°C < TJ < +150°C

High Temp Voltage Blocking 80% Rated VDRM (VAC Peak ) +125°C or +150°C, Lead Material Copper Alloy High Temp Voltage Blocking 504 or 1008 hrs. MIL-STD-750 (Method 1040) JEDEC, JESD22-A-101
Temp Cycling -65°C to +150°C, 15 min. dwell, 10 up to 100 cycles. MIL-STD-750 (Method 1051) EIA/JEDEC, JESD22-A104
Biased Temp & Humidity 52 VDC (+85°C) 85%RH, 504 up to 1008 hrs. EIA/ JEDEC, JESD22-A-101
High Temp Storage +150°C 1008 hrs. MIL-STD-750 (Method 1031) JEDEC, JESD22-A-101
Low Temp Storage -65°C, 1008 hrs.
Thermal Shock 0°C to +100°C, 5 min. dwell, 10 sec. transfer, Thermal Shock 10 cycles. MIL-STD-750 (Method 1056) JEDEC, JESD22-A-106
Autoclave (Pressure Cooker Test) +121°C, 100%RH, 2atm, 24 up to 168 hrs. EIA/Cooker Test) JEDEC, JESD22-A-102
Resistance to Solder Heat +260°C, 30 secs. MIL-STD-750 (Method 2031
Moisture Sensitivity Level 85%RH, +85°C, 168 hrs., 3 reflow cycles Level (+260°C Peak). JEDEC-J-STD-020, Level 1

Lead Material Copper Alloy
Terminal Finish 100% Matte-Tin Plated
Body Material UL recognized epoxy meeting flammability classification 94V-0

Part Number Component Package Quantity Packaging Option Packaging Specification
Pxxx0SB DO-214AA 2500 Tape & Reel -12mm/13″tape EIA -481 - D

DO-214AA Thyristor Surge Protection Devices 100A 275V SMD P3100SB 4KV

DO-214AA Thyristor Surge Protection Devices 100A 275V SMD P3100SB 4KV

DO-214AA Thyristor Surge Protection Devices 100A 275V SMD P3100SB 4KV

DO-214AA Thyristor Surge Protection Devices 100A 275V SMD P3100SB 4KV

FAQ
Q1. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 1 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ ?
A: MOQ depend on the type of product, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
