Thyristor P2300SB ESD Suppressors DO-214AA Semiconductor For Surge Protection
Thyristor P2300SB ESD Suppressors DO-214AA Semiconductor For Surge Protection
Thyristor P2300SB ESD Suppressors DO-214AA Semiconductor For Surge Protection
Thyristor P2300SB ESD Suppressors DO-214AA Semiconductor For Surge Protection
Thyristor P2300SB ESD Suppressors DO-214AA Semiconductor For Surge Protection
Thyristor P2300SB ESD Suppressors DO-214AA Semiconductor For Surge Protection
Specifications
Brand Name :
SOCAY
Model Number :
P2300SB
Certification :
REACH,RoHS,ISO
Place of Origin :
Shenzhen, Guangdong, China
MOQ :
2500PCS
Price :
Negotiable
Delivery Time :
5-8 work days
Packaging Details :
tape reel,bulk
Product Name :
Thyristor Surge Suppressors (TSS)
CASE :
DO-214AA/SMB
VDRM (Min.) :
190V
IDRM :
5μA
Vs @100V/μS (Max.) :
260V
Is (Max.) :
800mA
Vt @It=2.2A (Max.) :
4V
It (Max.) :
2.2A
Ih (Min.) :
150mA
C0 @1MHz,2V Bias (Typ.) :
60pF
Description

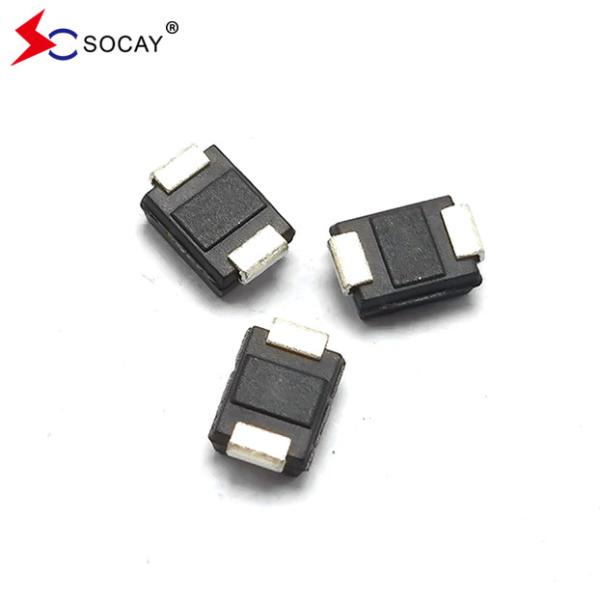

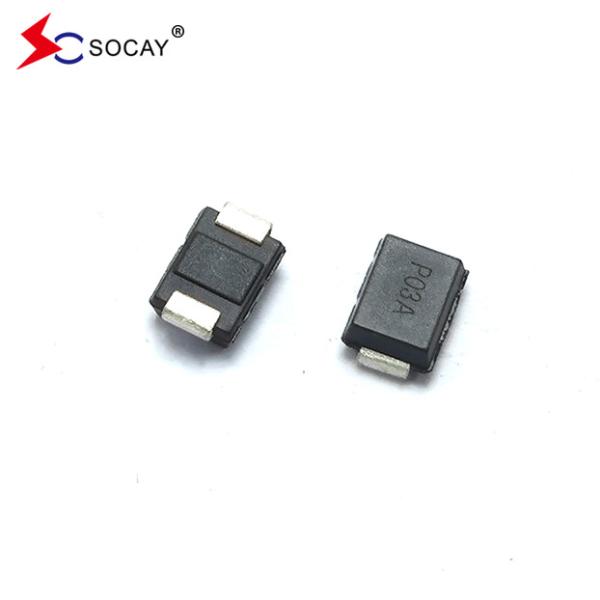

Thyristor P2300SB Esd Suppressors DO-214AA Semiconductor For Surge Protection In Sstock

DATASHEET: PXXX0SB_v2103.1.pdf

Part Number Marking VDRM @IDRM=5μA

VS ①

@100V/μS

 VT @IT=2.2A IS IT IH

C0 ②

@1MHz, 2V bias
V min V max V max mA max A max mA min pF typ
P0080SB P008B 6 25 4 800 2.2 50 80
P0300SB P03B 25 40 4 800 2.2 50 80
P0640SB P06B 58 77 4 800 2.2 150 80
P0720SB P07B 65 88 4 800 2.2 150 75
P0900SB P09B 75 98 4 800 2.2 150 70
P1100SB P11B 90 130 4 800 2.2 150 70
P1300SB P13B 120 160 4 800 2.2 150 65
P1500SB P15B 140 180 4 800 2.2 150 65
P1800SB P18B 170 220 4 800 2.2 150 65
P2300SB P23B 190 260 4 800 2.2 150 60
P2600SB P26B 220 300 4 800 2.2 150 60
P3100SB P31B 275 350 4 800 2.2 150 50
P3500SB P35B 320 400 4 800 2.2 150 50
P4200SB P42B 400 520 4 800 2.2 150 40

Notes:

① Vs is measured at 100KV/s.

② Off-state capacitance is measured in VDC=2V, VRMS=1V, f=1MHz.

Thyristor P2300SB ESD Suppressors DO-214AA Semiconductor For Surge Protection

Description:

PXXX0SB Series are designed to protect broadband equipment such as modems, line card, CPE and DSL from damaging over-voltage transients.The series provides a surface mount solution that enables equipment to comply with global regulatory standards.

Features:

u Low voltage overshoot

u Low on-state voltage

u Does not degrade surge capability after multiple surge events within limit

u Fails short circuit when surged in excess of ratings

u Low Capacitance


Applicable Global Standards:

u TIA-968-A

u ITU K.20/21 Enhanced level

u ITU K.20/21 Basic Level

u GR 1089 Inter building

u GR 1089 Inter building

u IEC 6100-4-5

u YD/T 1082

u YD/T 993

u YD/T 950

Parameter Definition
IS Switching Current - maximum current required to switch to on state
IDRM Leakage Current - maximum peak off-state current measured at VDRM
IH Holding Current - minimum current required to maintain on state
IT On-state Current - maximum rated continuous on-state current
VS Switching Voltage - maximum voltage prior to switching to on stat
VDRM Peak Off-state Voltage - maximum voltage that can be applied while maintaining off state
VT On-state Voltage - maximum voltage measured at rated on-state current
C0 Off-state Capacitance - typical capacitance measured in off state

Series 2/10μS1 8/20μS1 10/160μS1 10/560μS1 10/1000μS1 5/310μS1

ITSM

50/60 Hz

 di/dt
2/10μS2 1.2/50μS2 10/160μS2 10/560μS2 10/1000μS2 10/700μS2
A min A min A min A min A min A min A min Amps/µs max
B 250 250 150 100 80 100 30 500

Notes:

  • Current waveform in µs
  • Voltage waveform in µs

- Peak pulse current rating (IPP) is repetitive and guaranteed for the life of the product.

- IPP ratings applicable over temperature range of -40ºC to +85ºC

- The device must initially be in thermal equilibrium with -40°C < TJ < +150°C

High Temp Voltage Blocking 80% Rated VDRM (VAC Peak ) +125°C or +150°C, Lead Material Copper Alloy High Temp Voltage Blocking 504 or 1008 hrs. MIL-STD-750 (Method 1040) JEDEC, JESD22-A-101
Temp Cycling -65°C to +150°C, 15 min. dwell, 10 up to 100 cycles. MIL-STD-750 (Method 1051) EIA/JEDEC, JESD22-A104
Biased Temp & Humidity 52 VDC (+85°C) 85%RH, 504 up to 1008 hrs. EIA/ JEDEC, JESD22-A-101
High Temp Storage +150°C 1008 hrs. MIL-STD-750 (Method 1031) JEDEC, JESD22-A-101
Low Temp Storage -65°C, 1008 hrs.
Thermal Shock 0°C to +100°C, 5 min. dwell, 10 sec. transfer, Thermal Shock 10 cycles. MIL-STD-750 (Method 1056) JEDEC, JESD22-A-106
Autoclave (Pressure Cooker Test) +121°C, 100%RH, 2atm, 24 up to 168 hrs. EIA/Cooker Test) JEDEC, JESD22-A-102
Resistance to Solder Heat +260°C, 30 secs. MIL-STD-750 (Method 2031
Moisture Sensitivity Level 85%RH, +85°C, 168 hrs., 3 reflow cycles Level (+260°C Peak). JEDEC-J-STD-020, Level 1

Lead Material Copper Alloy
Terminal Finish 100% Matte-Tin Plated
Body Material UL recognized epoxy meeting flammability classification 94V-0

Part Number Component Package Quantity Packaging Option Packaging Specification
Pxxx0SB DO-214AA 2500 Tape & Reel -12mm/13″tape EIA -481 - D

Thyristor P2300SB ESD Suppressors DO-214AA Semiconductor For Surge Protection

Thyristor P2300SB ESD Suppressors DO-214AA Semiconductor For Surge Protection

Thyristor P2300SB ESD Suppressors DO-214AA Semiconductor For Surge Protection

Thyristor P2300SB ESD Suppressors DO-214AA Semiconductor For Surge Protection
