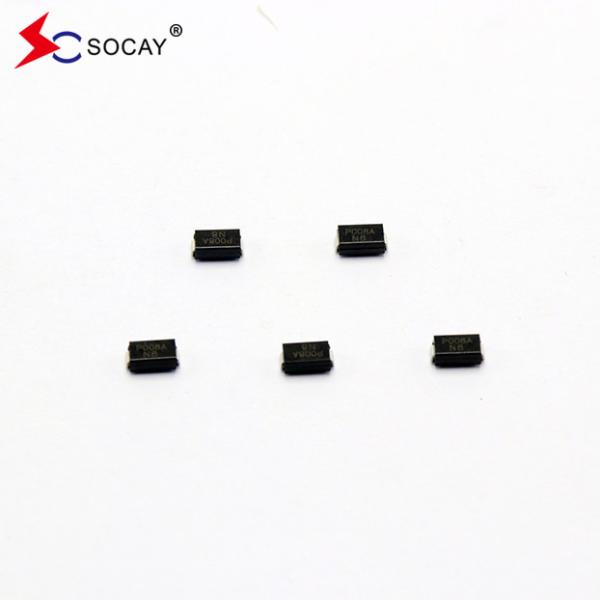

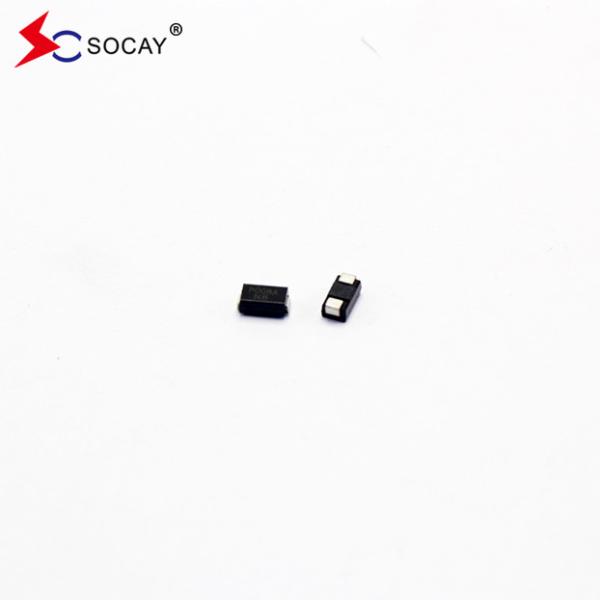

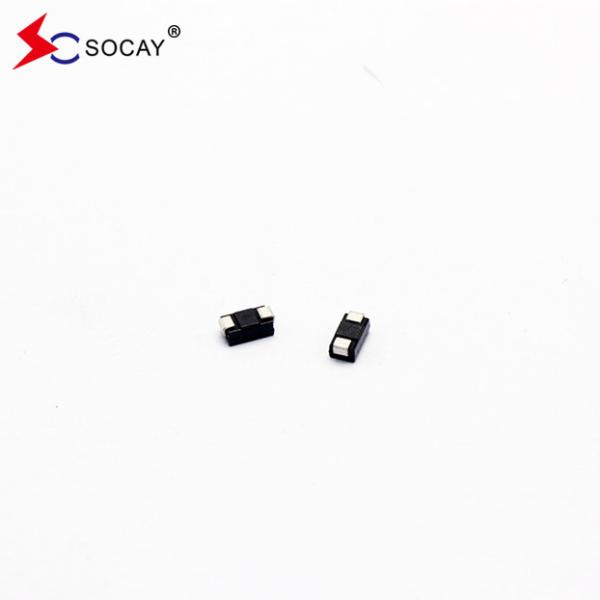

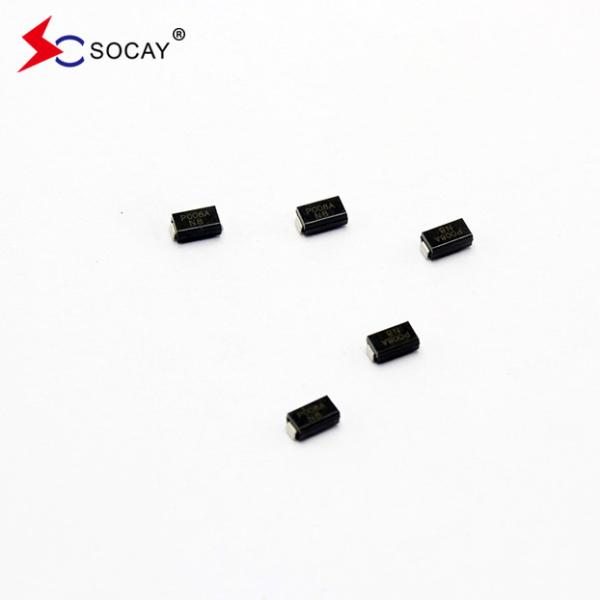

TSS Thyristor Surge Suppressors P0080TB Semiconductor Component DO-214AC SMA
TSS Thyristor Surge Suppressors P0080TB Semiconductor Component DO-214AC SMA
TSS Thyristor Surge Suppressors P0080TB Semiconductor Component DO-214AC SMA
TSS Thyristor Surge Suppressors P0080TB Semiconductor Component DO-214AC SMA
TSS Thyristor Surge Suppressors P0080TB Semiconductor Component DO-214AC SMA
TSS Thyristor Surge Suppressors P0080TB Semiconductor Component DO-214AC SMA
TSS Thyristor Surge Suppressors P0080TB Semiconductor Component DO-214AC SMA
TSS Thyristor Surge Suppressors P0080TB Semiconductor Component DO-214AC SMA
TSS Thyristor Surge Suppressors P0080TB Semiconductor Component DO-214AC SMA
TSS Thyristor Surge Suppressors P0080TB Semiconductor Component DO-214AC SMA
TSS Thyristor Surge Suppressors P0080TB Semiconductor Component DO-214AC SMA
TSS Thyristor Surge Suppressors P0080TB Semiconductor Component DO-214AC SMA
TSS Thyristor Surge Suppressors P0080TB Semiconductor Component DO-214AC SMA
TSS Thyristor Surge Suppressors P0080TB Semiconductor Component DO-214AC SMA
Specifications
Brand Name :
SOCAY
Model Number :
P0080TB
Certification :
REACH,RoHS,ISO
Place of Origin :
Shenzhen, Guangdong, China
MOQ :
5000PCS
Price :
Negotiable
Delivery Time :
5-8 work days
Packaging Details :
AMMO packing bulk
Item :
TSS DIODES
Package Type :
DO-214AC/SMA
VDRM (Min.) :
6V
IDRM :
5μA
Vs @100V/μS (Max.) :
25V
Is (Max.) :
800mA
Vt @It=2.2A (Max.) :
4V
It (Max.) :
2.2A
Ih (Min.) :
50mA
C0 @1MHz,2V Bias (Typ.) :
130pF
Description

TSS Thyristor Surge Suppressors P0080TB Semiconductor Component DO-214AC SMA

DATASHEET: PXXX0TB_v2101.2.pdf

Part of datasheet as below

Part Number Marking

VDRM

@IDRM=5μA

VS ①

@100V/μS

 IS

VT

@IT=2.2A

IT IH

C0 ②

@1MHz, 2Vbias
V Min. V Max. mA Max. V max. A max. mA min. pF typ.
P0080TB P008B 6 25 800 4 2.2 50 130
P0220TB P22B 15 30 800 4 2.2 50 120
P0300TB P03B 25 40 800 4 2.2 50 120
P0640TB P06B 58 77 800 4 2.2 120 80
P0720TB P07B 66 87 800 4 2.2 120 75
P0900TB P09B 75 98 800 4 2.2 120 70
P1100TB P11B 90 130 800 4 2.2 120 70
P1300TB P13B 120 160 800 4 2.2 120 60
P1500TB P15B 140 180 800 4 2.2 120 55
P1800TB P18B 170 220 800 4 2.2 120 50
P2300TB P23B 190 260 800 4 2.2 120 50
P2600TB P26B 220 300 800 4 2.2 120 45
P3100TB P31B 275 350 800 4 2.2 120 45
P3500TB P35B 320 400 800 4 2.2 150 40

Notes:

① VS is measured at 100KV/s;

② Off-state Capacitance is measured in VDC=2V, VRMS=1V, f=1MHz.

TSS Thyristor Surge Suppressors P0080TB Semiconductor Component DO-214AC SMA

Features:

l Surface mount design optimizes board space usage


l React quickly to rapidly rising transient voltages

Parameter Symbol Value Unit
Storage Temperature Range Tstg -60 to +150 ℃
Operating Junction Temperature Range Tj -40 to +150 ℃
Repetitive Peak Pulse Current IPP 80 A

Parameter Definition
IS Switching Current - maximum current required to switch to on state
IDRM Leakage Current - maximum peak off-state current measured at VDRM
IH Holding Current - minimum current required to maintain on state
IT On-state Current - maximum rated continuous on-state current
VS Switching Voltage - maximum voltage prior to switching to on stat
VDRM Peak Off-state Voltage - maximum voltage that can be applied while maintaining off state
VT On-state Voltage - maximum voltage measured at rated on-state current
C0 Off-state Capacitance - typical capacitance measured in off state

TSS Thyristor Surge Suppressors P0080TB Semiconductor Component DO-214AC SMA

TSS Thyristor Surge Suppressors P0080TB Semiconductor Component DO-214AC SMA

TSS Thyristor Surge Suppressors P0080TB Semiconductor Component DO-214AC SMA

TSS Thyristor Surge Suppressors P0080TB Semiconductor Component DO-214AC SMA

Packing details

Outline Reel (pcs) Per Carton (pcs) Reel Diameters (mm)
Taping 5,000 80,000 330

Selection Method

1,To know the customer's product, operating voltage, application port, protection level.

2,Break-state voltage > DC working voltage on the circuit.

3,Select the capacitance value and flow rate of the device according to the application port and protection level.

Product tags

ntc inrush current limiter

,

surge suppressor varistor

,

thyristor surge protection device
Send your message to this supplier
Send Now

TSS Thyristor Surge Suppressors P0080TB Semiconductor Component DO-214AC SMA

Ask Latest Price
Product Detail
Brand Name :
SOCAY
Model Number :
P0080TB
Certification :
REACH,RoHS,ISO
Place of Origin :
Shenzhen, Guangdong, China
MOQ :
5000PCS
Price :
Negotiable
Contact Supplier
TSS Thyristor Surge Suppressors P0080TB Semiconductor Component DO-214AC SMA
TSS Thyristor Surge Suppressors P0080TB Semiconductor Component DO-214AC SMA
TSS Thyristor Surge Suppressors P0080TB Semiconductor Component DO-214AC SMA
TSS Thyristor Surge Suppressors P0080TB Semiconductor Component DO-214AC SMA
TSS Thyristor Surge Suppressors P0080TB Semiconductor Component DO-214AC SMA
TSS Thyristor Surge Suppressors P0080TB Semiconductor Component DO-214AC SMA
TSS Thyristor Surge Suppressors P0080TB Semiconductor Component DO-214AC SMA

Shenzhen Socay Electronics Co., Ltd.

Active Member
2 Years
guangdong, shenzhen
Since 2004
Business Type :
Manufacturer, Seller
Main Products :
TVS Diodes, Zener Diode, Gas Discharge Tube
Employee Number :
250~350
Certification Level :
Active Member
